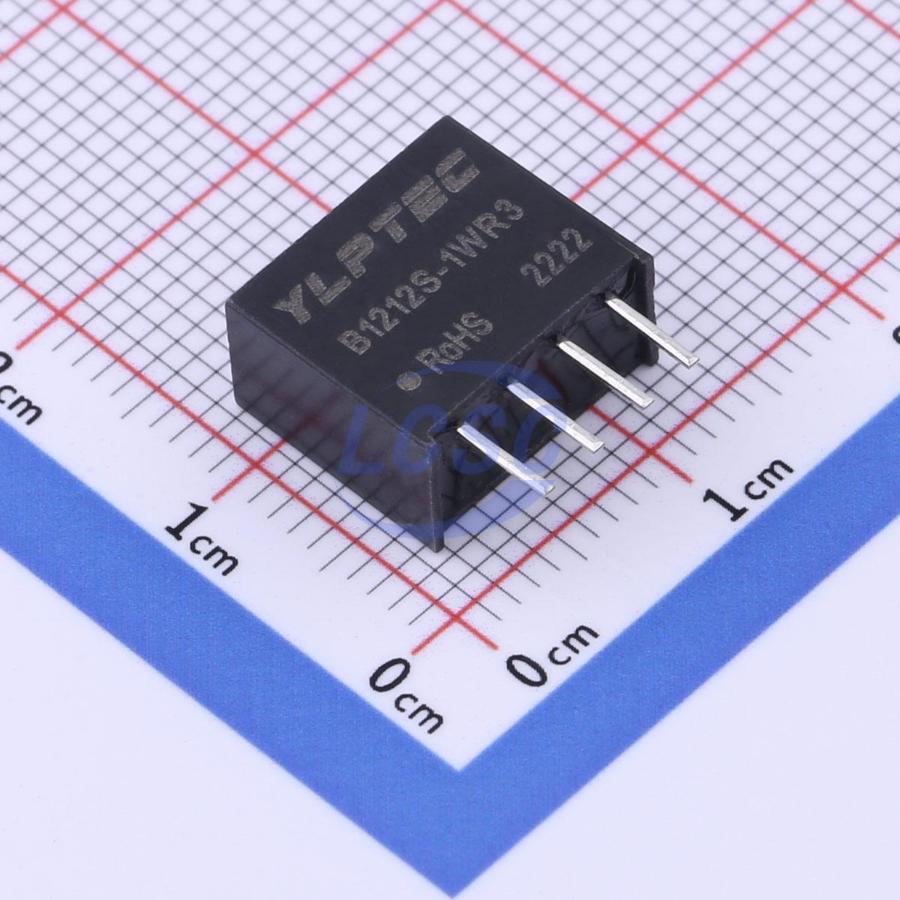

YLPTEC

B1212S-1WR3

Isolated Module DC DC Converter 1 Output 12V 84mA 10.8V~13.2V Input

PopularSIP,11.6x6mmROHS CompliantActive

1W isolated DC-DC converter Fixed input voltage, unregulated single output

Manufacturer: YLPTEC
Manufacturer part #: B1212S-1WR3
Store part #: C3031174
Package / case: SIP,11.6x6mm
Category: DC DC Converters
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10,934 in stock

#C3031174

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹164.73	₹164.73
10+	₹144.05	₹1,440.50
43+	₹124.68	₹5,361.24
86+	₹110.11	₹9,469.46
516+	₹104.23	₹53,782.68
989+	₹101.41	₹1,00,294.49

Quantity (min 1)

1 × ₹164.73

₹164.73

excl. GST

₹194.38 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 43 per tube

B1212S-1WR3

₹164.73 for 1 + GST

Specifications

Output Voltage: 12V
Ripple Noise: 30mVp-p
Operating Temperature: -40℃~+105℃
Voltage - Supply: 10.8V~13.2V
Capacitive Load(Max): 560uF
Number of Outputs: 1
Iout: 84mA
Height: 10.16mm
Frequency - Switching: 260kHz
Isolation Voltage(Vrms): 1.5kV
Output Power: 1W
Conversion Efficiency: 90%
Features: Short Circuit Protection;Automatic fault recovery;Over-temperature protection
Length: 11.6mm
Width: 6mm

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tube-packed
Standard pack: 43 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 1.73 g

Overview

1W, fixed voltage input, isolated unregulated single output, with over-temperature protection and continuous output short-circuit protection, RoHS compliant. This series is specifically designed for on-board power systems requiring a voltage rail isolated from the input supply. Suitable for applications where the input supply voltage is relatively stable (voltage variation range ±10%Vin), isolation is required between input and output (isolation voltage ≤1500VDC), and output voltage regulation is not critical. Typical applications include purely digital circuits, general low-frequency analog circuits, relay driver circuits, and data switching circuits.

Applications

Suitable for applications where the input supply voltage is relatively stable (voltage variation range ±10% Vin), galvanic isolation is required between input and output (isolation voltage ≤1500 VDC), and output voltage regulation is not critical. Typical applications include pure digital circuits, general low-frequency analog circuits, relay driver circuits, data switching circuits, and similar use cases.

Key features

Isolation voltage: 1500VDC/1min, 3000VDC/1s
Low no-load power consumption: 0.025W (typical)
Operating temperature range: -40℃~+85℃
Efficiency up to 91%
Output short-circuit protection: continuous short-circuit protection, auto-recovery
International standard pinout
Compact SIP package
Low ripple/noise (20MHz bandwidth): 30mVₚ₋ₚ (typical)
MTBF ≥ 3,500,000 Hrs
