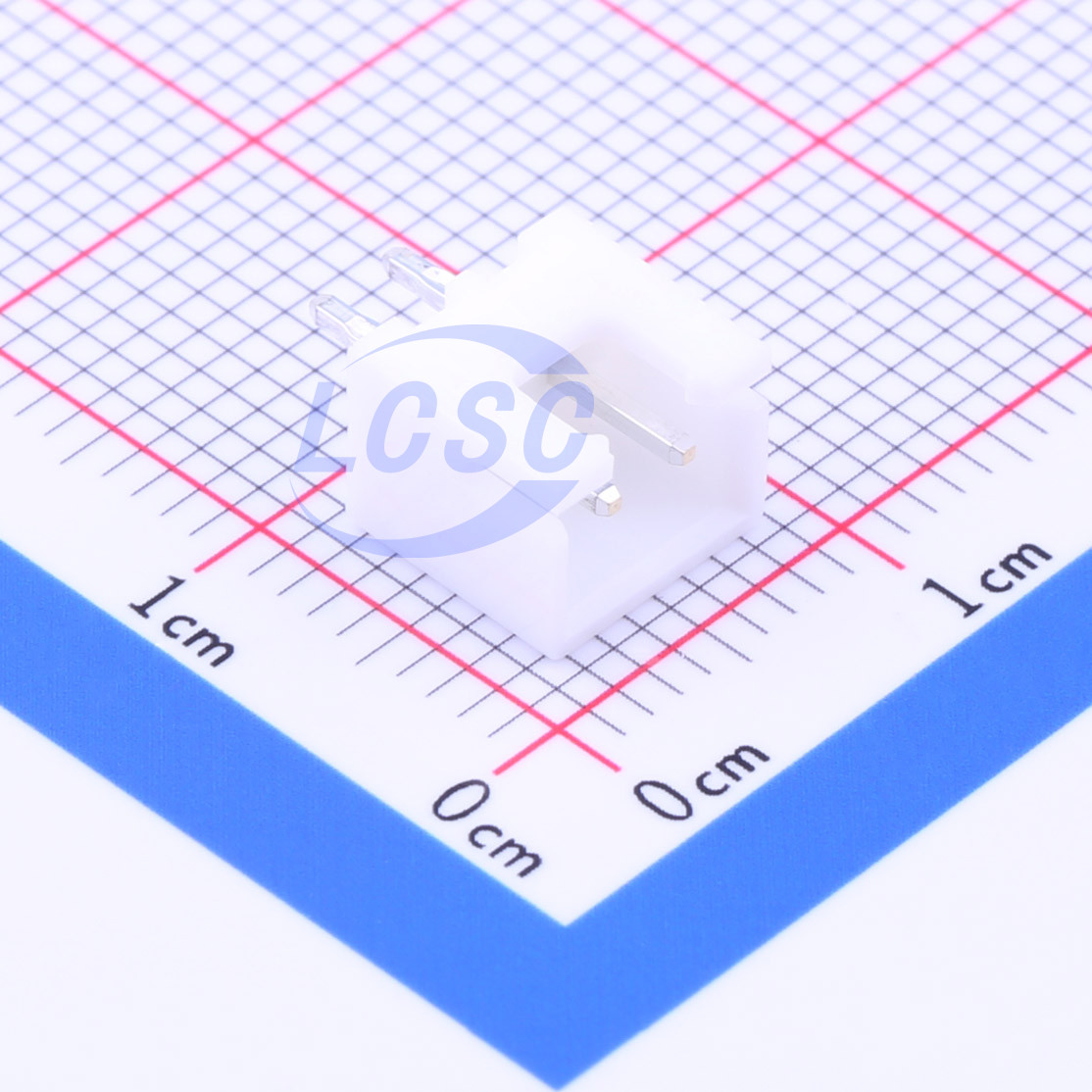

B2B-XH-A(LF)(SN)

Connector Header 2 position 2.5mm Pitch 3A Through Hole -25℃~+85℃

PopularThrough Hole,P=2.5mmRoHSActive

CONN HEADER TH 2POS 2.5mm

Manufacturer: JST
Manufacturer part #: B2B-XH-A(LF)(SN)
Store part #: C158012
Package / case: Through Hole,P=2.5mm
Category: Headers, Male Pins
Packaging: Box-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,82,980 in stock

#C158012

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
20+	₹5.41	₹108.20
200+	₹4.26	₹852.00
1,000+	₹3.74	₹3,740.00
2,000+	₹3.36	₹6,720.00
10,000+	₹3.21	₹32,100.00
20,000+	₹3.11	₹62,200.00

Quantity (min 20, multiples of 20)

20 × ₹5.41

₹108.20

excl. GST

₹127.68 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 1,000 per box

B2B-XH-A(LF)(SN)

₹108.20 for 20 + GST

Specifications

Connector Type: Through Hole
Reference Series: XH
Voltage Rating (Max): 250V
Contact Material: Brass
Number of PINs Per Row: 2
Number of Rows: 1
Pitch: 2.5mm
Flame Retardant Rating: UL94V-0
Current Rating: 3A
Supplementary Features: K Pin
Operating Temperature: -25℃~+85℃
Contact Plating: Tin
Number of PINs: 2P
Plastic Material: PA66
Color: White
X-Length of Bottom Edge on Board (Spacing Line): 7.4mm
Pin Structure: 1x2P

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
ECCN: EAR99
Packaging: Box-packed
Standard pack: 1,000 / Box
Sold per: Piece
Minimum order: 20 (multiples of 20)
Unit weight: 0.24 g

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
B2B-XH-A-M(LF)(SN)#C2858045JST · Through Hole,P=2.5mm	JST	Through Hole,P=2.5mm	18,280	₹7.92 · 18,280 in stock	View
B2B-XH-A-BK(LF)(SN)#C378939JST · Through Hole,P=2.5mm	JST	Through Hole,P=2.5mm	45,260	₹6.91 · 45,260 in stock	View
B2B-XH-A-Y(LF)(SN)#C495547JST · Through Hole,P=2.5mm	JST	Through Hole,P=2.5mm	5,560	₹6.15 · 5,560 in stock	View
B2B-XH-A-R(LF)(SN)#C495685JST · Through Hole,P=2.5mm	JST	Through Hole,P=2.5mm	39,270	₹7.71 · 39,270 in stock	View
B2B-XH-A-N(LF)(SN)#C594146JST · Through Hole,P=2.5mm	JST	Through Hole,P=2.5mm	50	₹8.94 · 50 in stock	View

Questions about B2B-XH-A(LF)(SN)

What Is the Minimum Ordering Quantity (moq) and Packaging on Lcsc?

LCSC offers no MOQ requirement for this part. The factory standard reel for this 2-circuit header is 1,000 pieces, with quantities available starting from 20 units.

What Is the Operational Temperature Range for This Part?

The header is rated for continuous operation from -25°C to +85°C, with that upper limit accounting for the temperature rise that occurs under normal electrical load.

What Materials Are Used in Its Construction?

The wafer (housing) is moulded from glass-filled PA66 plastic with a UL94V-0 flame-retardant rating. The header posts are brass with a copper undercoat and tin plating, providing reliable conductivity and corrosion resistance.

What Is the Pitch and Mounting Type of This Component?

This connector uses a 2.5mm pitch — the centre-to-centre distance between adjacent pins — and is designed for through-hole mounting on a printed circuit board.

What Are the Electrical Ratings for This Connector Header?

The B2B-XH-A(LF)(SN) is rated at 3A and 250V AC/DC, making it well suited for low-to-medium power signal connections on a PCB.
