JSTDatasheet (PDF)

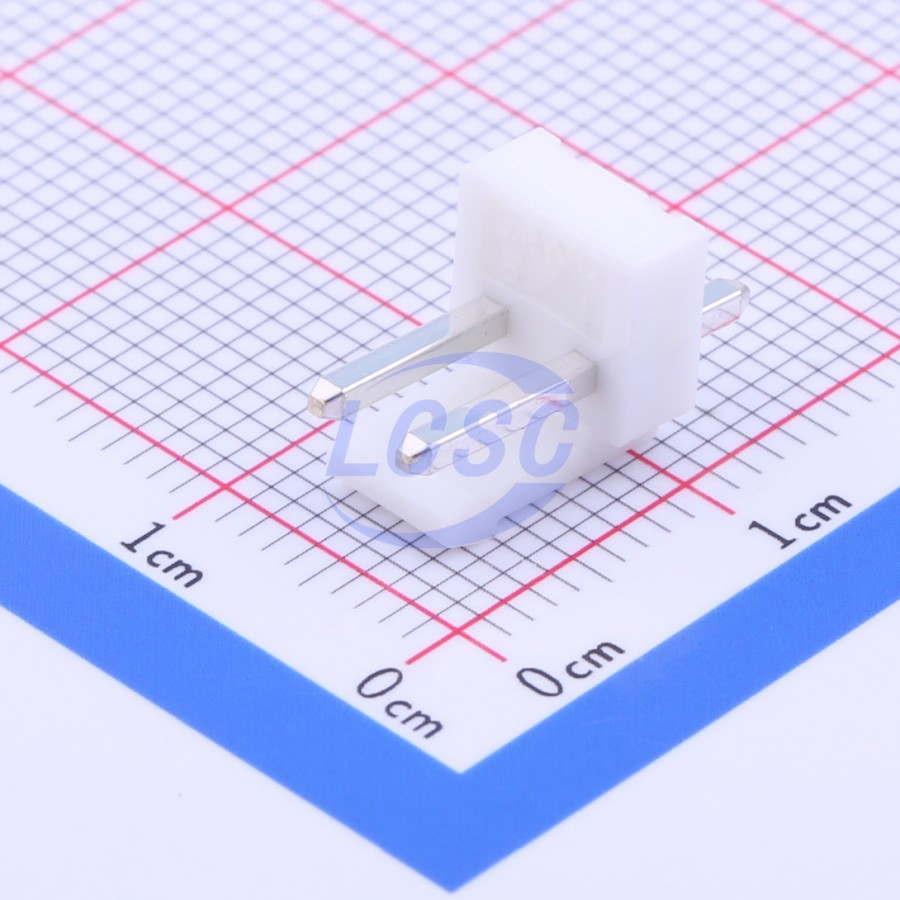

B2P-VH(LF)(SN)
Connector Header 2 position 3.96mm Pitch 10A Through Hole -25℃~+85℃
PopularThrough Hole,P=3.96mmROHS CompliantActive
CONN HEADER TH 2POS 3.96mm
- Manufacturer
- JST
- Manufacturer part #
- B2P-VH(LF)(SN)
- Store part #
- C160315
- Package / case
- Through Hole,P=3.96mm
- Category
- Headers, Male Pins
- Packaging
- Box-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,51,370 in stock
#C160315
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.30 | ₹83.00 |
| 100+ | ₹6.80 | ₹680.00 |
| 300+ | ₹6.05 | ₹1,815.00 |
| 1,000+ | ₹5.41 | ₹5,410.00 |
| 5,000+ | ₹5.20 | ₹26,000.00 |
| 10,000+ | ₹5.04 | ₹50,400.00 |
10 × ₹8.30
₹83.00
excl. GST
₹97.94 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per box
B2P-VH(LF)(SN)
₹83.00 for 10 + GST
Specifications
- Connector Type
- Through Hole
- Reference Series
- VH
- Voltage Rating (Max)
- 250V
- Contact Material
- Brass
- Number of PINs Per Row
- 2
- Number of Rows
- 1
- Pitch
- 3.96mm
- Flame Retardant Rating
- UL94V-0
- Current Rating
- 10A
- Operating Temperature
- -25℃~+85℃
- Contact Plating
- Tin
- Number of PINs
- 2P
- Plastic Material
- PA66
- Color
- White
- X-Length of Bottom Edge on Board (Spacing Line)
- 7.86mm
- Pin Structure
- 1x2P
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Box-packed
- Standard pack
- 1,000 / Box
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.602 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | B2P-VH#C20571196JST · Through Hole,P=3.96mm | JST | Through Hole,P=3.96mm | 840 | ₹9.88 · 840 in stock | View |
 | B2P-VH-B(LF)(SN)#C265114JST · Through Hole,P=3.96mm | JST | Through Hole,P=3.96mm | 17,260 | ₹13.24 · 17,260 in stock | View |
 | B2P-VH-R(LF)(SN)#C265357JST · Through Hole,P=3.96mm | JST | Through Hole,P=3.96mm | 6,280 | ₹9.91 · 6,280 in stock | View |
 | B2P-VH-BL(LF)(SN)#C274411JST · Through Hole,P=3.96mm | JST | Through Hole,P=3.96mm | 41,995 | ₹11.85 · 41,995 in stock | View |
 | B2P-VH-BK(LF)(SN)#C495202JST · Through Hole,P=3.96mm | JST | Through Hole,P=3.96mm | 4,650 | ₹12.74 · 4,650 in stock | View |
