ROHMDatasheet (PDF)

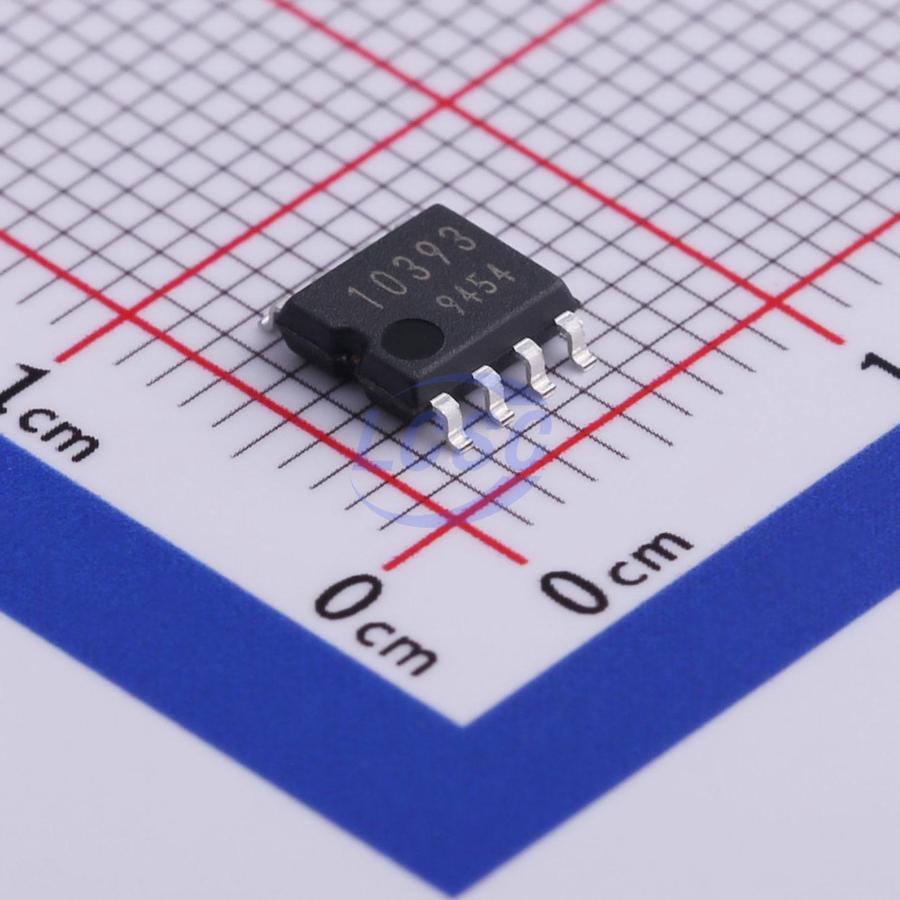

BA10393F-E2
2 400uA 5mV SOP-8 Comparators RoHS
SOP-8ROHS3 CompliantActive
Ground Sense Comparator
- Manufacturer
- ROHM
- Manufacturer part #
- BA10393F-E2
- Store part #
- C507431
- Package / case
- SOP-8
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,090 in stock
#C507431
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.34 | ₹81.70 |
| 50+ | ₹13.14 | ₹657.00 |
| 150+ | ₹11.54 | ₹1,731.00 |
| 500+ | ₹10.33 | ₹5,165.00 |
| 2,500+ | ₹8.23 | ₹20,575.00 |
| 5,000+ | ₹7.75 | ₹38,750.00 |
5 × ₹16.34
₹81.70
excl. GST
₹96.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BA10393F-E2
₹81.70 for 5 + GST
Specifications
- Number of Channels
- 2
- Input Offset Current(Ios)
- 5nA
- Output Mode
- TTL
- Operating Temperature
- -40℃~+85℃
- Dual Supply
- 1V~18V;-18V~-1V
- Ib - Input Bias Current
- 50nA
- Propagation Delay(tpd)
- 1.3us
- Quiescent Current(Iq)
- 400uA
- Vos - Input Offset Voltage
- 5mV
- Maximum Power Supply Range (Vdd-Vss)
- 36V
- Single Supply
- 2V~36V
- Response Time (tr)
- 1.3us
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.206 g
Overview
General purpose BA8391G/BA10393F/BA10339xx and high reliability BA2903xxxx/BA2901xxx integrate one, two or four independent high gain voltage comparator. Operating supply voltage range of BA8391G/BA1039 3F/BA2903xxxx/BA2901xxx is wide(2V to 36V). And can be used in a variety of applications because current consumption is small. BA2903Wxx is a low input offset voltage products.(2mV max)
Applications
- General Use
- Current Monitor
- Battery Monitor
- Multi vibrator
Key features
- Operable with a Single Power Supply
- Wide Operating Supply Voltage
- Standard Pin Assignments
- Input and Output are Ground Sense Operated
- Open Collector
- Wide Temperature Range
