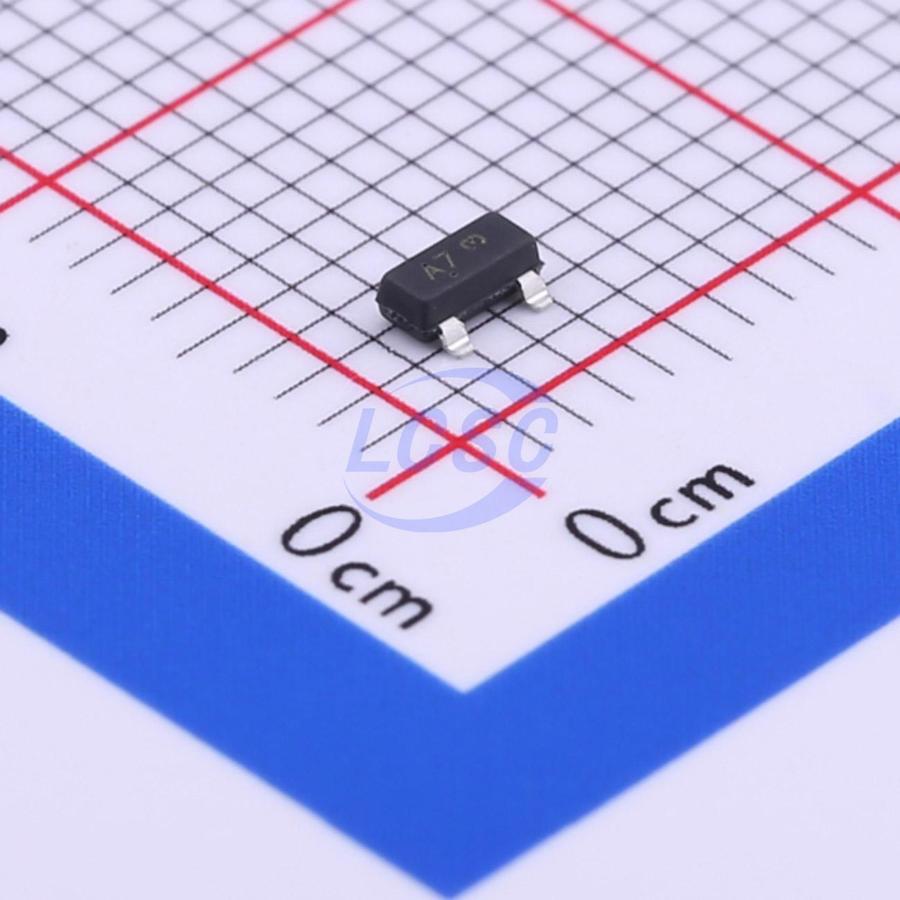

BAV99LT1G onsemi

BAV99LT1G

Diode Array 1 Pair Series Connection 100V 215mA Surface Mount SOT-23

PopularSOT-23ROHS3 CompliantActive

DIODE ARR GP 100V 215mA SOT-23

Manufacturer: onsemi
Manufacturer part #: BAV99LT1G
Store part #: C82480
Package / case: SOT-23
Category: Diode Arrays
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

21,65,920 in stock

#C82480

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
20+	₹2.80	₹56.00
200+	₹2.20	₹440.00
600+	₹1.93	₹1,158.00
3,000+	₹1.43	₹4,290.00
9,000+	₹1.35	₹12,150.00
21,000+	₹1.30	₹27,300.00

Quantity (min 20, multiples of 20)

20 × ₹2.80

₹56.00

excl. GST

₹66.08 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

BAV99LT1G

₹56.00 for 20 + GST

Specifications

Non-Repetitive Peak Forward Surge Current: 2A
Diode Configuration: 1 Pair Series Connection
Current - Rectified: 215mA
Operating Junction Temperature Range: -65℃~+150℃
Reverse Recovery Time (trr): 6ns
Pd - Power Dissipation: 225mW
Voltage - DC Reverse(Vr): 100V
Reverse Leakage Current (Ir): 1uA@100V
Voltage - Forward(Vf@If): 1.25V@150mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 20 (multiples of 20)
Unit weight: 0.034 g

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	BAV99LT3G#C150240onsemi · SOT-23	onsemi	SOT-23	1,850	₹6.55 · 1,850 in stock	View
	SBAV99LT1G#C152481onsemi · SOT-23	onsemi	SOT-23	18,460	₹9.31 · 18,460 in stock	View
	BAV99#C2926147FOSAN · SOT-23	FOSAN	SOT-23	35,300	₹1.36 · 35,300 in stock	View
	BAV99-E3-08-CN#C42379413ChipNobo · SOT-23	ChipNobo	SOT-23	2,450	₹2.35 · 2,450 in stock	View
	BAV99#C727122TWGMC · SOT-23	TWGMC	SOT-23	41,150	₹1.56 · 41,150 in stock	View
