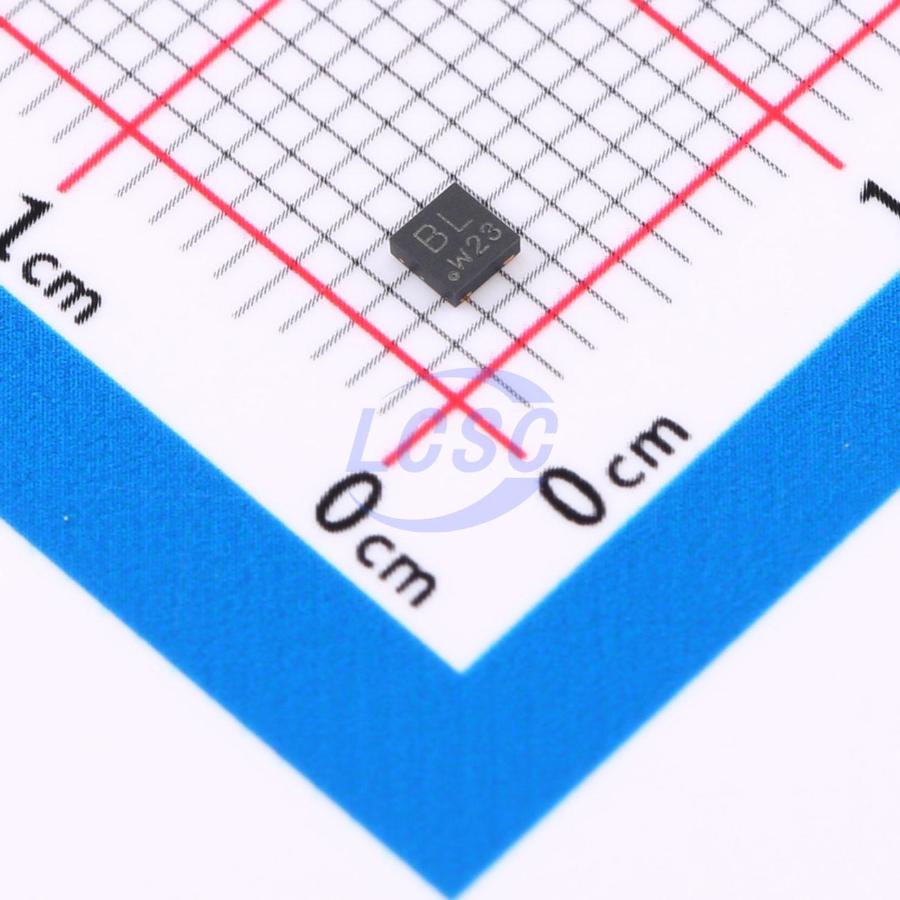

BC56-16PA-QX
Bipolar (BJT) Transistor NPN 80V 1A 180MHz 1.65W Surface Mount DFN-3(2x2)
DFN-3(2x2)ROHS3 CompliantActive
TRANS NPN 80V 1A DFN-3(2x2)
- Manufacturer
- Nexperia
- Manufacturer part #
- BC56-16PA-QX
- Store part #
- C6514133
- Package / case
- DFN-3(2x2)
- Category
- Single Bipolar Transistors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,107 in stock
#C6514133
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹135.32 | ₹135.32 |
| 10+ | ₹111.86 | ₹1,118.60 |
| 30+ | ₹99.04 | ₹2,971.20 |
| 100+ | ₹84.50 | ₹8,450.00 |
| 500+ | ₹77.98 | ₹38,990.00 |
| 1,000+ | ₹74.93 | ₹74,930.00 |
1 × ₹135.32
₹135.32
excl. GST
₹159.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BC56-16PA-QX
₹135.32 for 1 + GST
Specifications
- Current - Collector Cutoff
- 100nA
- Operating Temperature
- -55℃~+150℃
- Transition frequency(fT)
- 180MHz
- Collector - Emitter Voltage VCEO
- 80V
- Emitter-Base Voltage VEBO
- 5V
- DC Current Gain
- 250
- Current - Collector(Ic)
- 1A
- Pd - Power Dissipation
- 1.65W
- Number
- 1 NPN
- type
- NPN
- Vce Saturation(VCE(sat))
- 500mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.061 g
Overview
NPN medium power transistor in a SOT1061 (DFN2020-3) leadless very small Surface-Mounted Device (SMD) plastic package.
Applications
- Linear voltage regulators
- MOSFET drivers
- Low-side switches
- Power management
- Amplifiers
- Battery-driven devices
Key features
- High collector current capability IC and ICM
- Three current gain selections
- High power dissipation capability
- Exposed heatsink for excellent thermal and electrical conductivity
- Leadless very small SMD plastic package with medium power capability
- Qualified according to AEC-Q101 and recommended for use in automotive applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| BC56PA-QX#C7219380Nexperia · DFN-3(2x2) | Nexperia | DFN-3(2x2) | On request | ₹10.94 · 0 in stock | View | |
| NSVBCP56MTWG#C41443571onsemi · WDFNW-3(2x2) | onsemi | WDFNW-3(2x2) | On request | ₹105.54 · 0 in stock | View | |
