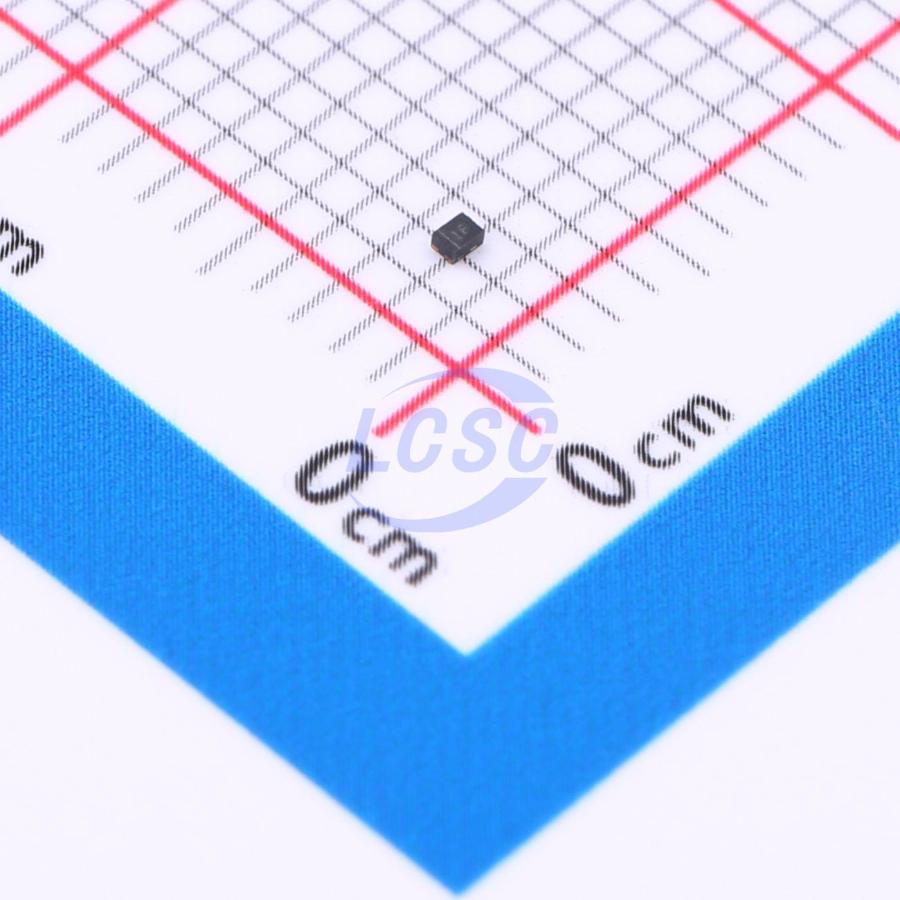

DIODES

BC847BFAQ-7B

Bipolar (BJT) Transistor NPN 45V 100mA 170MHz 435mW Surface Mount DFN-3(0.8x0.6)

DFN-3(0.8x0.6)ROHS3 CompliantActive

TRANS NPN 45V 100mA DFN-3(0.8x0.6)

Manufacturer: DIODES
Manufacturer part #: BC847BFAQ-7B
Store part #: C5248610
Package / case: DFN-3(0.8x0.6)
Category: Single Bipolar Transistors
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

145 in stock

#C5248610

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹7.99	₹39.95
50+	₹7.82	₹391.00
150+	₹7.70	₹1,155.00
500+	₹7.59	₹3,795.00

Quantity (min 5, multiples of 5)

5 × ₹7.99

₹39.95

excl. GST

₹47.14 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

BC847BFAQ-7B

₹39.95 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Current - Collector Cutoff: 15nA
Operating Temperature: -65℃~+150℃
Transition frequency(fT): 170MHz
Collector - Emitter Voltage VCEO: 45V
DC Current Gain: 470
Emitter-Base Voltage VEBO: 6V
Current - Collector(Ic): 100mA
Pd - Power Dissipation: 435mW
Configuration: Standalone
Number: 1 NPN
type: NPN
Vce Saturation(VCE(sat)): 300mV

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.021 g

Overview

This Bipolar Junction Transistor (BJT) is designed to meet the stringent requirements of Automotive Applications.

Key features

BVCEO > 45 V
IC = 100mA High Collector Current
PD = 435 mW Power Dissipation
0.48 mm² Package Footprint, 16 Times Smaller than SOT23
0.4mm Height Package Minimizing Off-Board Profile
Complementary PNP Type BC857BFA
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. "Green" Device
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable
