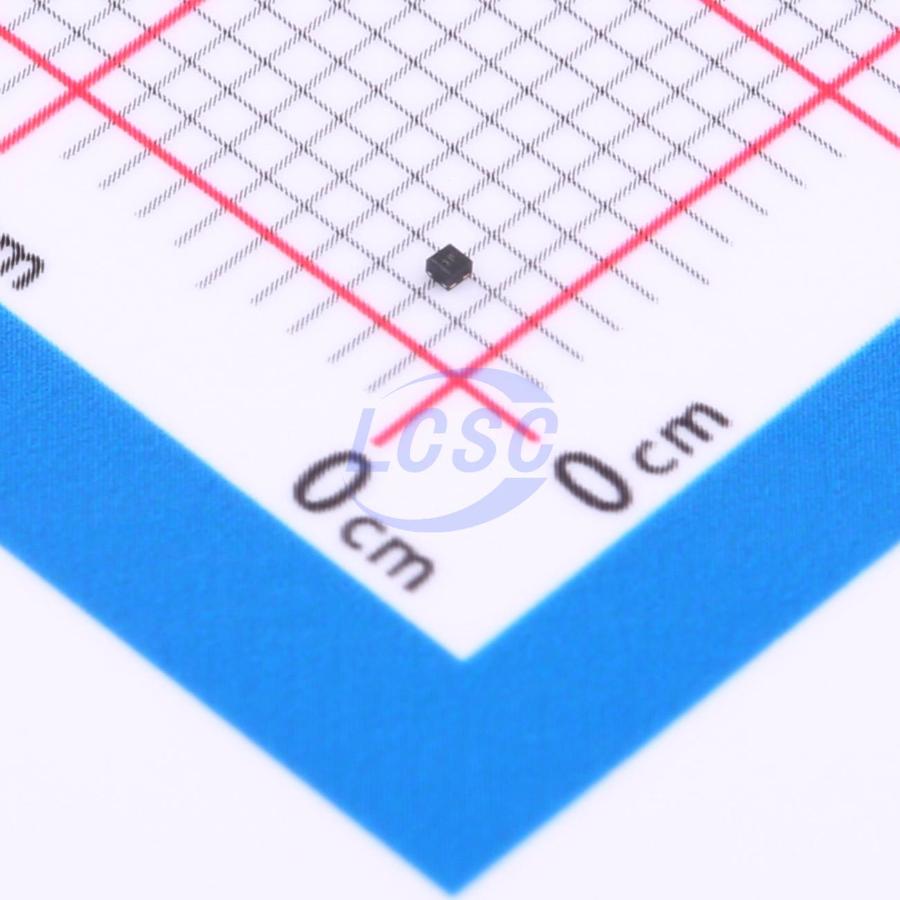

BC847BFZ-7B
Bipolar (BJT) Transistor NPN 45V 100mA Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
TRANS NPN 45V 100mA SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- BC847BFZ-7B
- Store part #
- C5248611
- Package / case
- SOT-23
- Category
- Single Bipolar Transistors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
60 in stock
#C5248611
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.99 | ₹174.95 |
| 50+ | ₹27.78 | ₹1,389.00 |
| 150+ | ₹24.69 | ₹3,703.50 |
| 500+ | ₹20.84 | ₹10,420.00 |
| 2,500+ | ₹19.12 | ₹47,800.00 |
| 5,000+ | ₹18.09 | ₹90,450.00 |
5 × ₹34.99
₹174.95
excl. GST
₹206.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
BC847BFZ-7B
₹174.95 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Current - Collector Cutoff
- 15nA
- Transition frequency(fT)
- 300MHz
- Collector - Emitter Voltage VCEO
- 45V
- Emitter-Base Voltage VEBO
- 5V
- DC Current Gain
- 200
- Current - Collector(Ic)
- 100mA
- Pd - Power Dissipation
- 350mW
- Configuration
- Standalone
- Number
- 1 NPN
- type
- NPN
- Vce Saturation(VCE(sat))
- 600mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.019 g
Overview
Key features
- Ideally Suited for Automatic Insertion
- Complementary PNP Types: BC856- BC858
- For Switching and AF Amplifier Applications
- Totally Lead- Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- An automotive- compliant part is available under separate datasheet (BC846AQ- BC848CQ)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AC847BQ-7#C5547133DIODES · SOT-23-3 | DIODES | SOT-23-3 | 90 | ₹11.38 · 90 in stock | View |
 | BC846BQ-13-F#C6514153DIODES · SOT-23 | DIODES | SOT-23 | 130 | ₹3.18 · 130 in stock | View |
 | BC847BQ-7-F#C2922347DIODES · SOT-23 | DIODES | SOT-23 | 610 | ₹7.78 · 610 in stock | View |
 | BC847C-13-F#C526464DIODES · SOT-23 | DIODES | SOT-23 | 110 | ₹5.31 · 110 in stock | View |
 | BC847BHZGT116#C509816ROHM · SOT-23 | ROHM | SOT-23 | 1,440 | ₹5.73 · 1,440 in stock | View |
