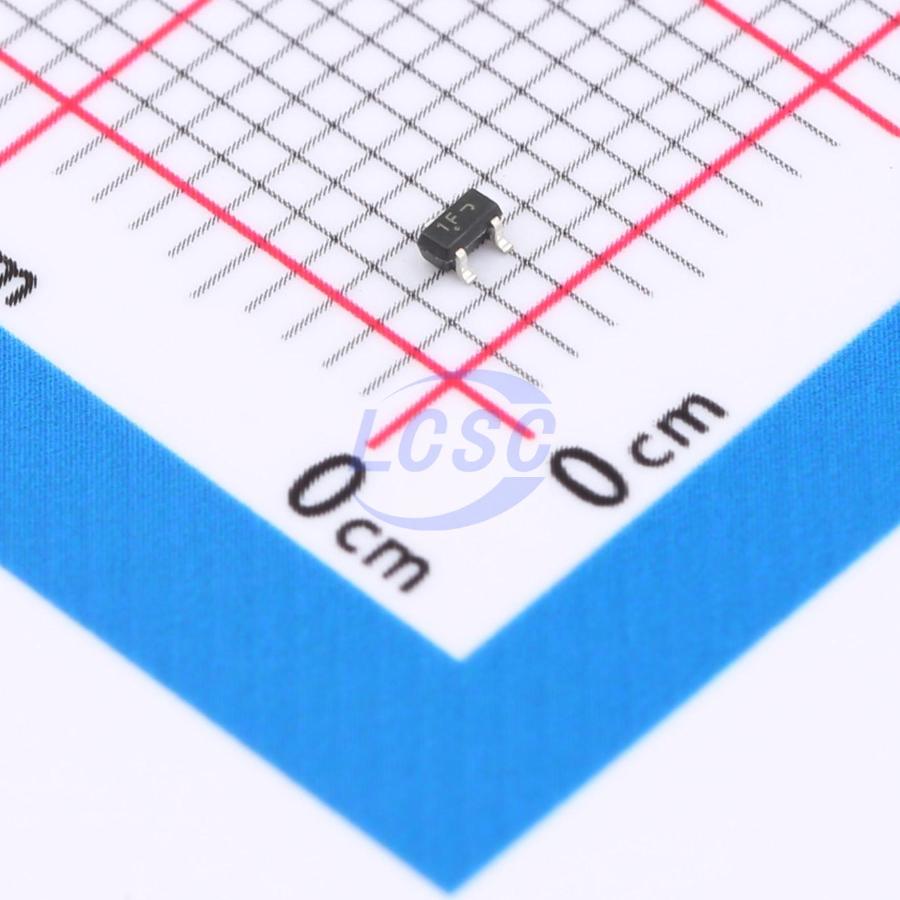

BC847BTT1G
Bipolar (BJT) Transistor NPN 45V 100mA 100MHz 200mW Surface Mount SC-75(SOT-523)
SC-75(SOT-523)ROHS3 CompliantActive
TRANS NPN 45V 100mA SC-75(SOT-523)
- Manufacturer
- onsemi
- Manufacturer part #
- BC847BTT1G
- Store part #
- C75126
- Package / case
- SC-75(SOT-523)
- Category
- Single Bipolar Transistors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,500 in stock
#C75126
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹7.73 | ₹154.60 |
| 200+ | ₹6.20 | ₹1,240.00 |
| 600+ | ₹5.34 | ₹3,204.00 |
| 3,000+ | ₹4.35 | ₹13,050.00 |
| 9,000+ | ₹3.90 | ₹35,100.00 |
| 21,000+ | ₹3.68 | ₹77,280.00 |
20 × ₹7.73
₹154.60
excl. GST
₹182.43 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BC847BTT1G
₹154.60 for 20 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Current - Collector Cutoff
- 5uA
- Transition frequency(fT)
- 100MHz
- Collector - Emitter Voltage VCEO
- 45V
- Emitter-Base Voltage VEBO
- 6V
- DC Current Gain
- 150
- Pd - Power Dissipation
- 200mW
- Current - Collector(Ic)
- 100mA
- Number
- 1 NPN
- type
- NPN
- Vce Saturation(VCE(sat))
- 250mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.028 g
Overview
These transistors are designed for general purpose amplifier applications. They are housed in the SC−75/SOT−416 package which is designed for low power surface mount applications.
Key features
- NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
- Pb−Free Packages are Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BC847BW,115#C8659Nexperia · SOT-323 | Nexperia | SOT-323 | 86,610 | ₹4.82 · 86,610 in stock | View |
 | LBC847BTT1G#C383192LRC · SC-89 | LRC | SC-89 | 4,000 | ₹5.46 · 4,000 in stock | View |
 | BC847BT#C49190740TECH PUBLIC · SOT-523 | TECH PUBLIC | SOT-523 | 1,760 | ₹3.51 · 1,760 in stock | View |
 | BC847BT-7-F#C156332DIODES · SOT-523 | DIODES | SOT-523 | 10,440 | ₹9.12 · 10,440 in stock | View |
 | BC847CT-7-F#C526465DIODES · SOT-523 | DIODES | SOT-523 | 2,090 | ₹7.09 · 2,090 in stock | View |
