onsemi

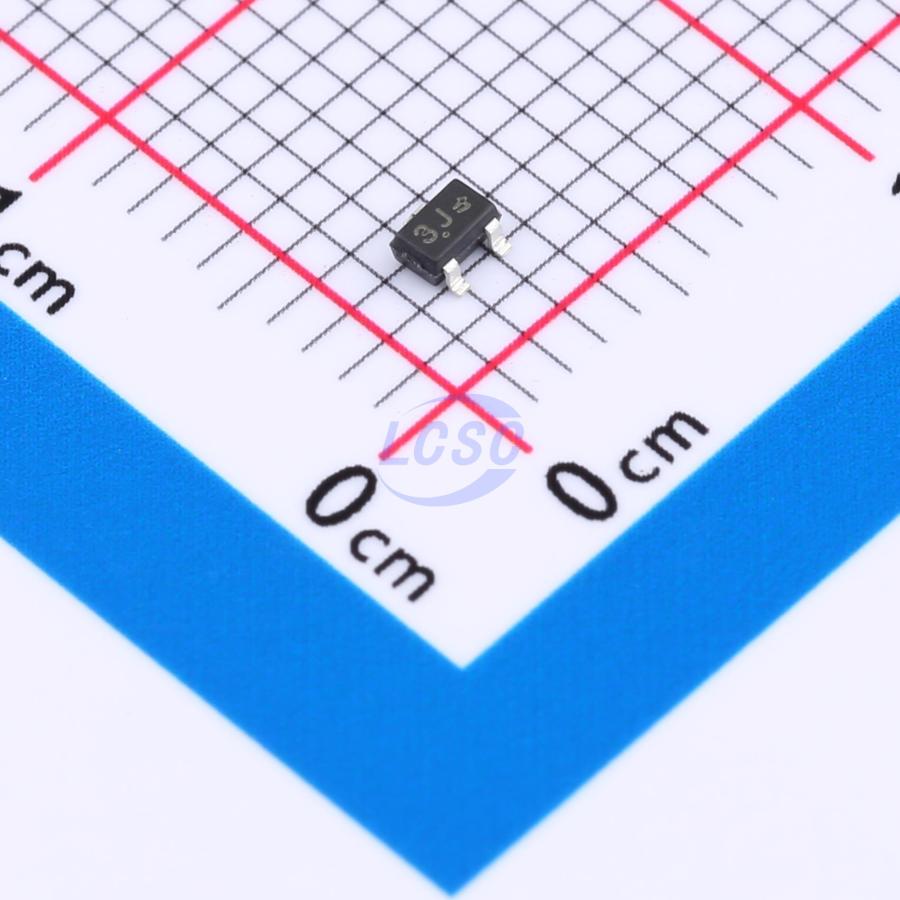

BC858AWT1G

Bipolar (BJT) Transistor PNP 30V 100mA 100MHz 150mW Surface Mount SC-70(SOT-323)

SC-70(SOT-323)ROHS3 CompliantActive

TRANS PNP 30V 100mA SC-70(SOT-323)

Manufacturer: onsemi
Manufacturer part #: BC858AWT1G
Store part #: C890254
Package / case: SC-70(SOT-323)
Category: Single Bipolar Transistors
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

65 in stock

#C890254

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
5+	₹29.58	₹147.90
50+	₹26.09	₹1,304.50
150+	₹24.59	₹3,688.50
500+	₹22.73	₹11,365.00
3,000+	₹21.90	₹65,700.00
6,000+	₹21.39	₹1,28,340.00

Quantity (min 5, multiples of 5)

5 × ₹29.58

₹147.90

excl. GST

₹174.52 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

BC858AWT1G

₹147.90 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -55℃~+150℃
Current - Collector Cutoff: 4uA
Transition frequency(fT): 100MHz
Collector - Emitter Voltage VCEO: 30V
Emitter-Base Voltage VEBO: 5V
DC Current Gain: 125
Pd - Power Dissipation: 150mW
Current - Collector(Ic): 100mA
Number: 1 PNP
type: PNP
Vce Saturation(VCE(sat)): 300mV

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.06 g

Overview

These transistors are designed for general purpose amplifier applications. They are housed in the SC−70/SOT−323 which is designed for low power surface mount applications.

Key features

S and NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
