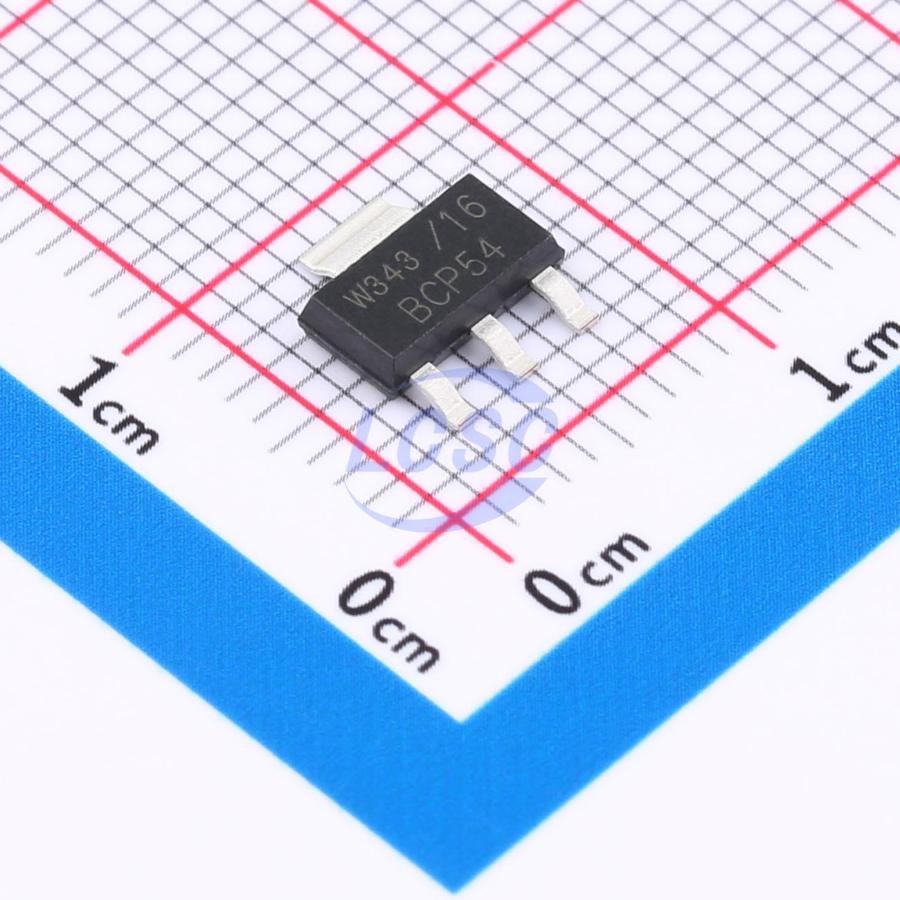

Nexperia

BCP54-16-QX

45V 250 1A 1 NPN NPN TSSOP-6 Single Bipolar Transistors RoHS

TSSOP-6ROHS3 CompliantActive

Manufacturer: Nexperia
Manufacturer part #: BCP54-16-QX
Store part #: C7507742
Package / case: TSSOP-6
Category: Single Bipolar Transistors
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

Out of stock

#C7507742

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹9.04	₹45.20
50+	₹8.84	₹442.00
150+	₹8.69	₹1,303.50
500+	₹8.56	₹4,280.00

Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 10,000 per reel

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Current - Collector Cutoff: 10uA
Operating Temperature: -55℃~+150℃
Transition frequency(fT): 180MHz
Collector - Emitter Voltage VCEO: 45V
Emitter-Base Voltage VEBO: 5V
DC Current Gain: 250
Current - Collector(Ic): 1A
Pd - Power Dissipation: 1.35W
Configuration: Standalone
Number: 1 NPN
type: NPN
Vce Saturation(VCE(sat)): 500mV

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 10,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.17 g
