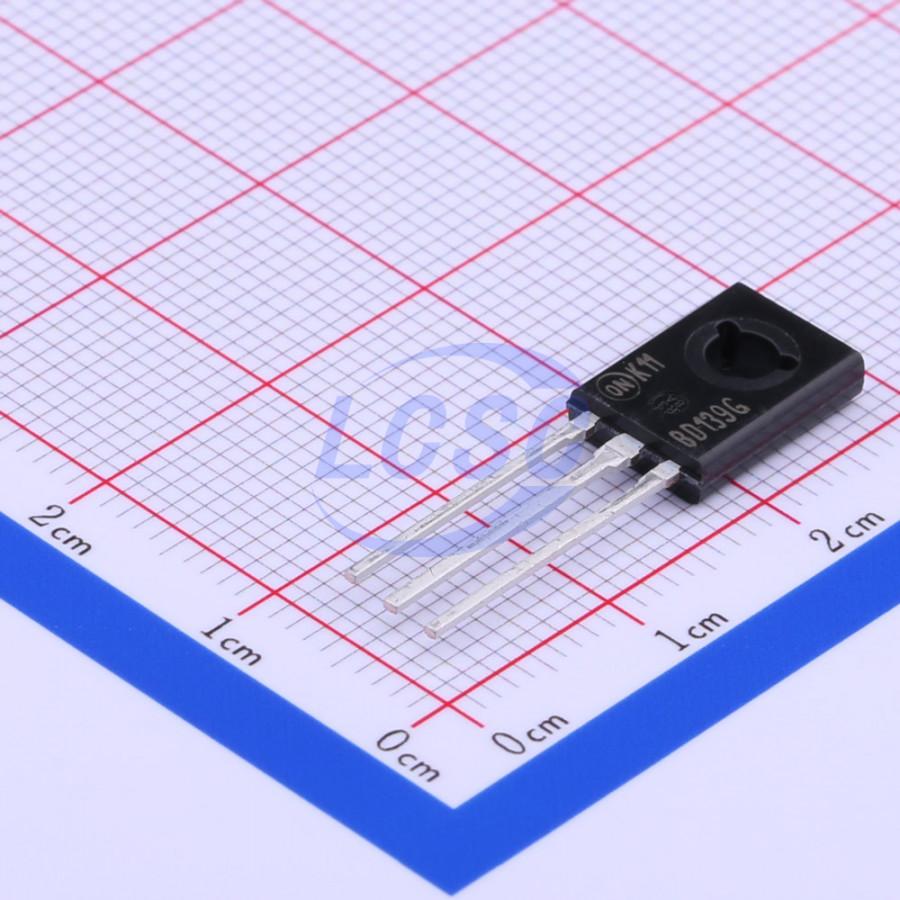

BD139G
Bipolar (BJT) Transistor NPN 80V 1.5A 12.5W Through Hole TO-225-3
TO-225-3ROHS3 CompliantActive
TRANS NPN 80V 1.5A TO-225-3
- Manufacturer
- onsemi
- Manufacturer part #
- BD139G
- Store part #
- C233736
- Package / case
- TO-225-3
- Category
- Single Bipolar Transistors
- Packaging
- Box-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
291 in stock
#C233736
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹104.94 | ₹104.94 |
| 10+ | ₹83.92 | ₹839.20 |
| 30+ | ₹73.51 | ₹2,205.30 |
| 100+ | ₹63.09 | ₹6,309.00 |
| 500+ | ₹56.81 | ₹28,405.00 |
| 1,000+ | ₹53.56 | ₹53,560.00 |
1 × ₹104.94
₹104.94
excl. GST
₹123.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 500 per box
BD139G
₹104.94 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Current - Collector Cutoff
- 10uA
- Collector - Emitter Voltage VCEO
- 80V
- Emitter-Base Voltage VEBO
- 5V
- DC Current Gain
- 25
- Pd - Power Dissipation
- 12.5W
- Current - Collector(Ic)
- 1.5A
- Configuration
- Standalone
- Number
- 1 NPN
- type
- NPN
- Vce Saturation(VCE(sat))
- 500mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Box-packed
- Standard pack
- 500 / Box
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.778 g
Overview
This series of plastic, medium−power silicon NPN transistors are designed for use as audio amplifiers and drivers utilizing complementary or quasi complementary circuits.
Key features
- High DC Current Gain
- BD 135, 137, 139 are complementary with BD 136, 138, 140
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
