ROHMDatasheet (PDF)

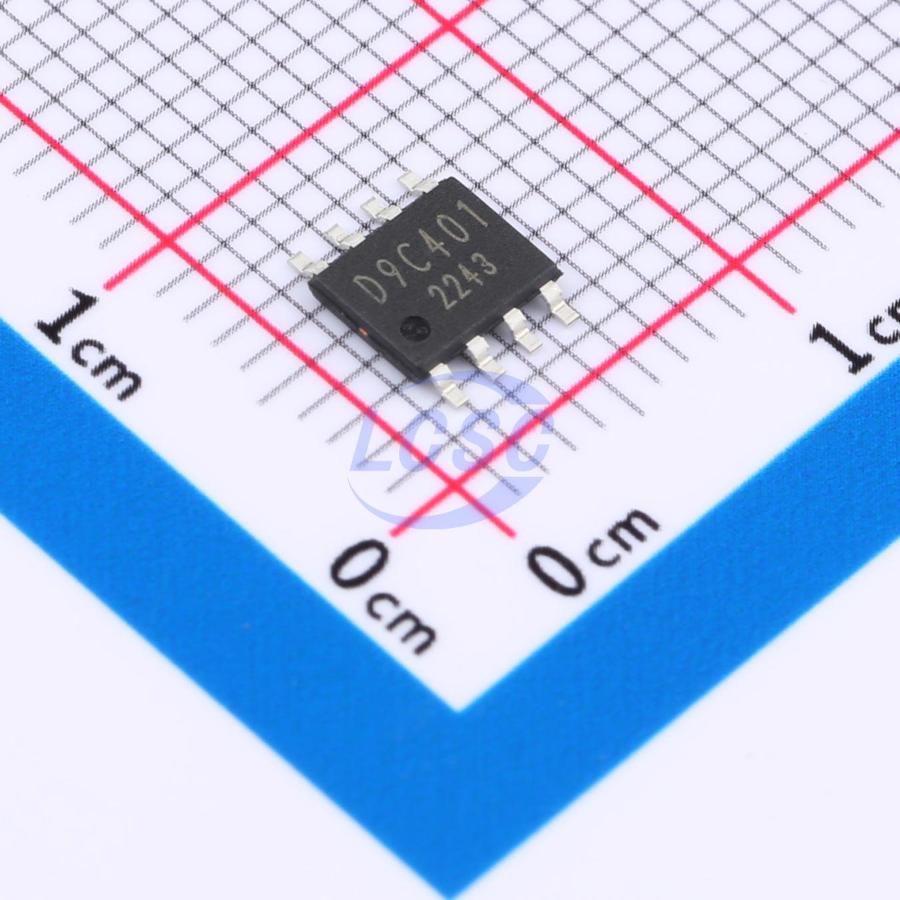

BD9C401EFJ-E2
500kHz Step-down type Adjustable 4A 3.3V SOIC-8 Voltage Regulators - DC DC Switching Regulators RoHS
SOIC-8ROHS3 CompliantActive
4.5V to 18V Input, 4.0A Integrated MOSFET Single Synchronous Buck DC/DC Converter
- Manufacturer
- ROHM
- Manufacturer part #
- BD9C401EFJ-E2
- Store part #
- C3190085
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,024 in stock
#C3190085
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹109.72 | ₹109.72 |
| 10+ | ₹88.20 | ₹882.00 |
| 30+ | ₹77.57 | ₹2,327.10 |
| 100+ | ₹66.92 | ₹6,692.00 |
| 500+ | ₹60.41 | ₹30,205.00 |
| 1,000+ | ₹57.14 | ₹57,140.00 |
1 × ₹109.72
₹109.72
excl. GST
₹129.47 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BD9C401EFJ-E2
₹109.72 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 500kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Overcurrent Protection;Protection latch
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~18V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 4A
- Output Voltage
- 3.3V
- Quiescent Current
- 1.5mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.182 g
Overview
BD9C401EFJ is a synchronous buck switching regulator with built-in low on-resistance power MOSFETs. With wide input voltage range, It is capable of providing current of up to 4A. It is a current mode control DC/DC converter and features high-speed transient response. Phase compensation can also be set easily.
Applications
- LCD TVs
- Set-top Boxes
- DVD/Blu-ray Disc Players/Recorders
- Broadband Network and Communication Interface
- Entertainment Devices
Key features
- Synchronous Single DC/DC Converter
- Over Current Protection
- Thermal Shutdown Protection
- Under Voltage Lockout Protection
- Short Circuit Protection
- Fixed Soft Start Function
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LT1506CS8#PBF#C664072ADI · SO-8 | ADI | SO-8 | 10 | ₹2,209.48 · 10 in stock | View |
| LT1506IS8#TRPBF#C664085ADI · SO-8 | ADI | SO-8 | On request | Price on request | Quote | |
| LT1506CS8#TRPBF#C664073ADI · SO-8 | ADI | SO-8 | On request | Price on request | Quote | |
| LT1506IS8-3.3#PBF#C664086ADI · SO-8 | ADI | SO-8 | On request | Price on request | Quote | |
| LT1506IS8-3.3#TRPBF#C664087ADI · SO-8 | ADI | SO-8 | On request | Price on request | Quote | |
