ROHMDatasheet (PDF)

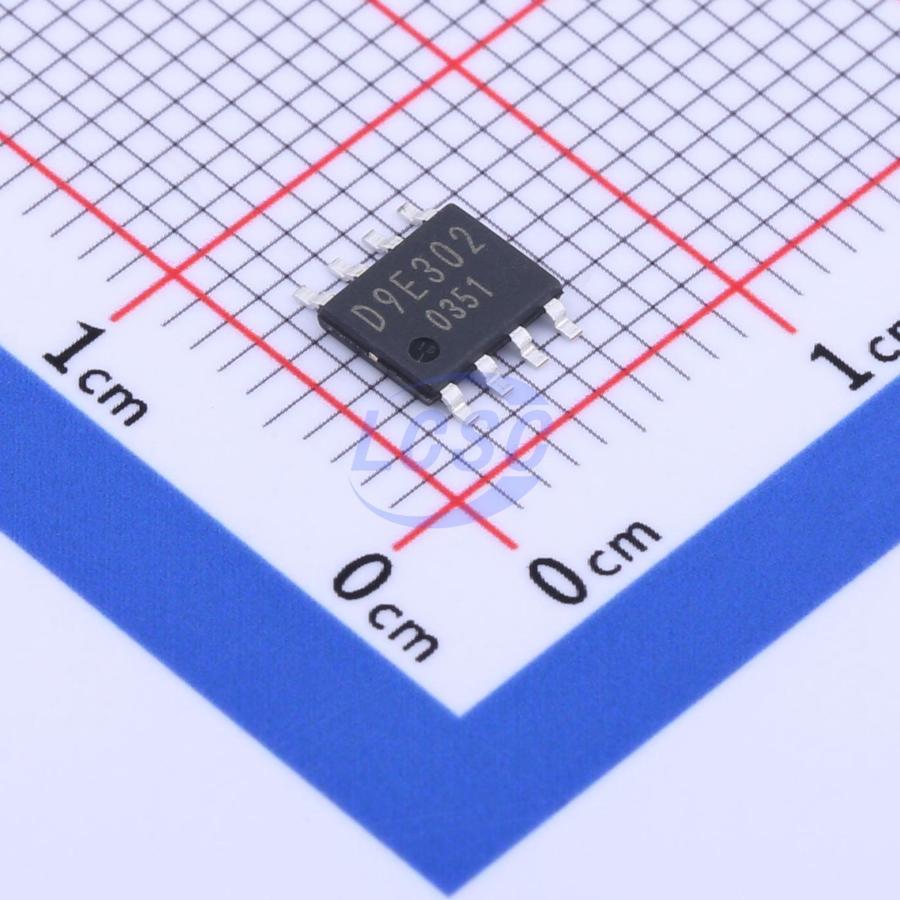

BD9E302EFJ-E2
550kHz Step-down type Adjustable 1V~19.6V 3A HTSOP-8-EP Voltage Regulators - DC DC Switching Regulators RoHS
HTSOP-8-EPROHS3 CompliantActive
7V to 28V Input, 3A Integrated MOSFET Single Synchronous Buck DC-DC Converter
- Manufacturer
- ROHM
- Manufacturer part #
- BD9E302EFJ-E2
- Store part #
- C919448
- Package / case
- HTSOP-8-EP
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,931 in stock
#C919448
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹90.63 | ₹90.63 |
| 10+ | ₹74.33 | ₹743.30 |
| 30+ | ₹66.28 | ₹1,988.40 |
| 100+ | ₹58.24 | ₹5,824.00 |
| 500+ | ₹47.59 | ₹23,795.00 |
| 1,000+ | ₹45.21 | ₹45,210.00 |
1 × ₹90.63
₹90.63
excl. GST
₹106.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BD9E302EFJ-E2
₹90.63 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 550kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Light load efficient mode;Overcurrent Protection;Cycle-by-cycle current limiting;Hiccup current limiting
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 7V~28V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 1V~19.6V
- Output Current
- 3A
- Quiescent Current
- 290uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.633 g
Overview
BD9E302EFJ is a synchronous buck switching regulator with built-in power MOSFETs. High efficiency at light load with a SLLMTM (Simple Light Load Mode). It is most suitable for use in the equipment to reduce the standby power is required. It is a current mode control DC/DC converter and features high-speed transient response. Phase compensation can also be set easily.
Applications
- Consumer applications such as home appliance Secondary power supply and Adapter equipment
- Telecommunication devices
Key features
- Synchronous single DC/DC converter
- SLLMTM control (Simple Light Load Mode)
- Over current protection
- Short circuit protection
- Thermal shutdown protection
- Under voltage lockout protection
- Soft start
- Reduce external diode
- HTSOP-J8 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | P1484AG-SH2-R#C487768UTC · HSOP-8-EP | UTC | HSOP-8-EP | On request | ₹45.34 · 0 in stock | View |
