ROHMDatasheet (PDF)

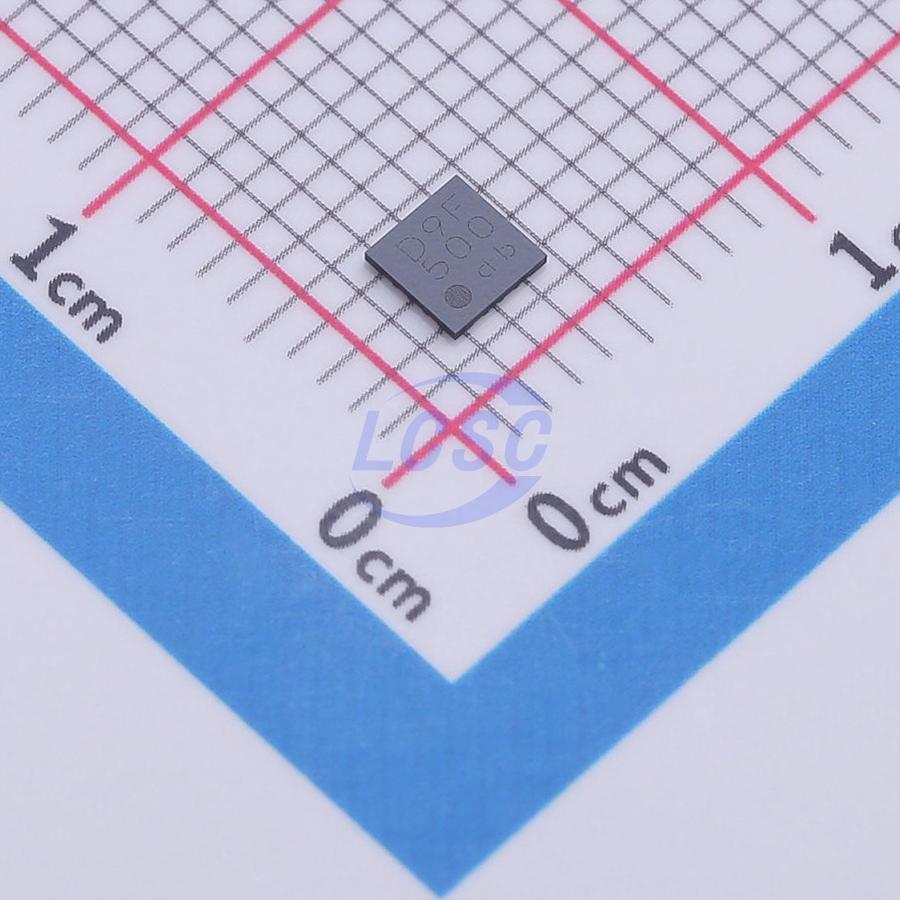

BD9F500QUZ-E2
600kHz~2.2MHz Step-down type Adjustable 600mV~14V 5A QFN-16(3x3) Voltage Regulators - DC DC Switching Regulators RoHS
QFN-16(3x3)ROHS3 CompliantActive
4.5 V to 36 V Input, 5 A Integrated MOSFET Single Synchronous Buck DC/DC Converter
- Manufacturer
- ROHM
- Manufacturer part #
- BD9F500QUZ-E2
- Store part #
- C3194573
- Package / case
- QFN-16(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
183 in stock
#C3194573
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹240.55 | ₹240.55 |
| 10+ | ₹204.05 | ₹2,040.50 |
| 30+ | ₹181.45 | ₹5,443.50 |
| 100+ | ₹157.98 | ₹15,798.00 |
| 500+ | ₹147.55 | ₹73,775.00 |
| 1,000+ | ₹142.99 | ₹1,42,990.00 |
1 × ₹240.55
₹240.55
excl. GST
₹283.85 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BD9F500QUZ-E2
₹240.55 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 600kHz~2.2MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Adjustable soft-start;Output discharge;Light load efficient mode;Operating status indication;Overcurrent Protection;Hiccup current limiting
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~36V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 600mV~14V
- Output Current
- 5A
- Quiescent Current
- 20uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.02 g
Overview
BD9F500QUZ is a synchronous buck DC/DC converter with built-in low on-resistance power MOSFETs. It is capable of providing current up to 5 A. It features fast transient response due to Constant On-Time control system. The Light Load Mode control improves efficiency in light-load conditions. It is ideal for reducing standby power consumption of equipment. Power Good function makes it possible for system to control sequence. It achieves the high power density and offer a small footprint on the PCB by employing small package.
Applications
- Step-down Power Supply for SoC, FPGA, Microprocessor
- Printer (MFP / LBP / IJP / POS)
- OA Equipment
- Laptop PC
- USB Type-C Applications
Key features
- Single Synchronous Buck DC/DC Converter
- Constant On-Time Control
- Light Load Mode Control
- Adjustable Soft Start
- Power Good Output
- Nano Pulse Control
- Output Capacitor Discharge Function
- Over Voltage Protection (OVP)
- Over Current Protection (OCP)
- Short Circuit Protection (SCP)
- Thermal Shutdown Protection (TSD)
- Under Voltage Lockout Protection (UVLO)
- VMMP16LZ3030 Package Backside Heat Dissipation, 0.5 mm Pitch
