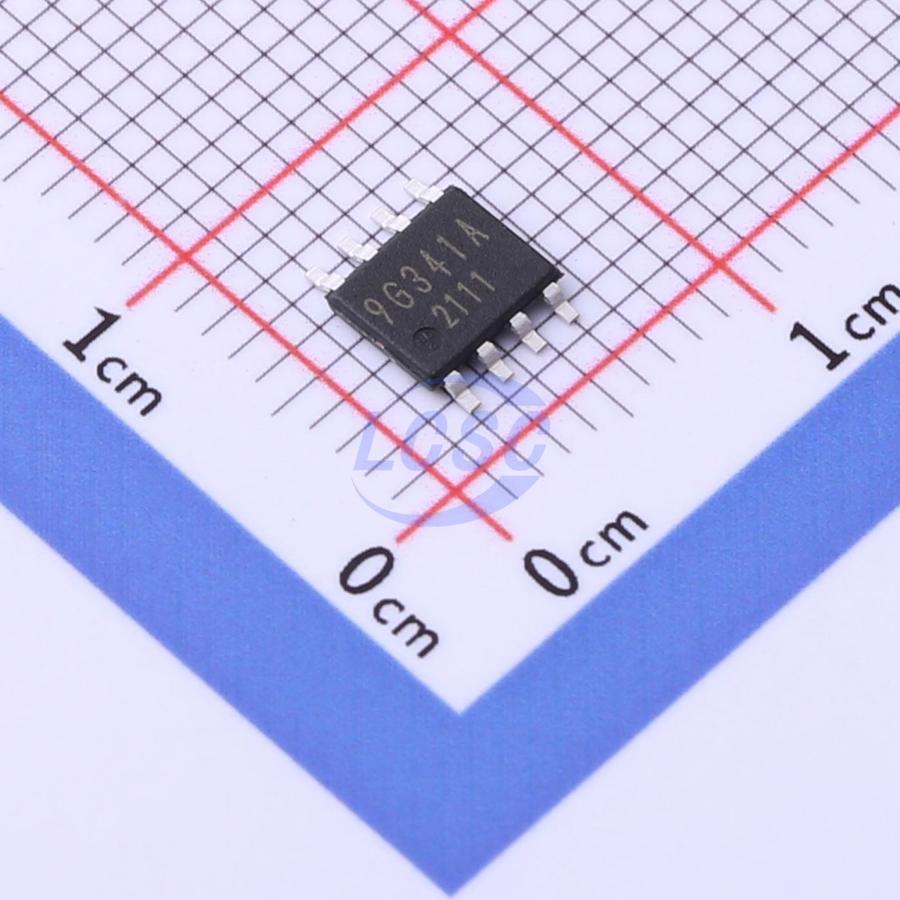

BD9G341AEFJ-E2

50kHz~750kHz Step-down type Adjustable 5V 3A SOIC-8 Voltage Regulators - DC DC Switching Regulators RoHS

SOIC-8ROHS3 CompliantActive

12V to 76V input voltage range 3A output current Buck Converter

Manufacturer: ROHM
Manufacturer part #: BD9G341AEFJ-E2
Store part #: C2981600
Package / case: SOIC-8
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,315 in stock

#C2981600

Stock & price checked 18 h ago

Quantity	Unit price	Pack price
1+	₹213.39	₹213.39
10+	₹178.41	₹1,784.10
30+	₹159.06	₹4,771.80
100+	₹137.34	₹13,734.00
500+	₹127.78	₹63,890.00
1,000+	₹123.44	₹1,23,440.00

Quantity (min 1)

1 × ₹213.39

₹213.39

excl. GST

₹251.80 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

BD9G341AEFJ-E2

₹213.39 for 1 + GST

Specifications

Operating Temperature: -40℃~+85℃
Frequency - Switching: 50kHz~750kHz
Function: Step-down type
Number of Outputs: 1
Features: Overcurrent Protection;Hiccup current limiting
Output Type: Adjustable
Topology: Buck
Operating Voltage: 12V~76V
Switch tube (built-in/external): Built-in
Output Voltage: 5V
Output Current: 3A
Quiescent Current: 1.5mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.14 g

Overview

The BD9G341AEFJ is a buck switching regulator with integrated 150mΩ power MOSFET. Current mode architecture provides fast transient response and a simple phase compensation setup. The operating frequency is programmable from 50kHz to 750kHz. Additional protection features are included such as Over Current Protection, Thermal shutdown and Under voltage lockout. The under voltage lockout and hysteresis can be set by external resistor.

Applications

Industrial distributed power applications.
Battery powered equipment.

Key features

Wide input voltage range from 12V to 76V.
Integrated 80V/3.5A/150mΩ NchFET.
Current mode.
Variable frequency from 50kHz to 750kHz.
Accurate reference voltage. (1.0V ±1.5 %).
Precision ENUVLO threshold (±3 %).
Soft-start function
0uA Standby current
Over Current Protection (OCP), Under Voltage Lockout(UVLO), Thermal-Shutdown(TSD), Over Voltage Protection (OVP)
Thermally enhanced HTSOP-J8 package
