ROHM

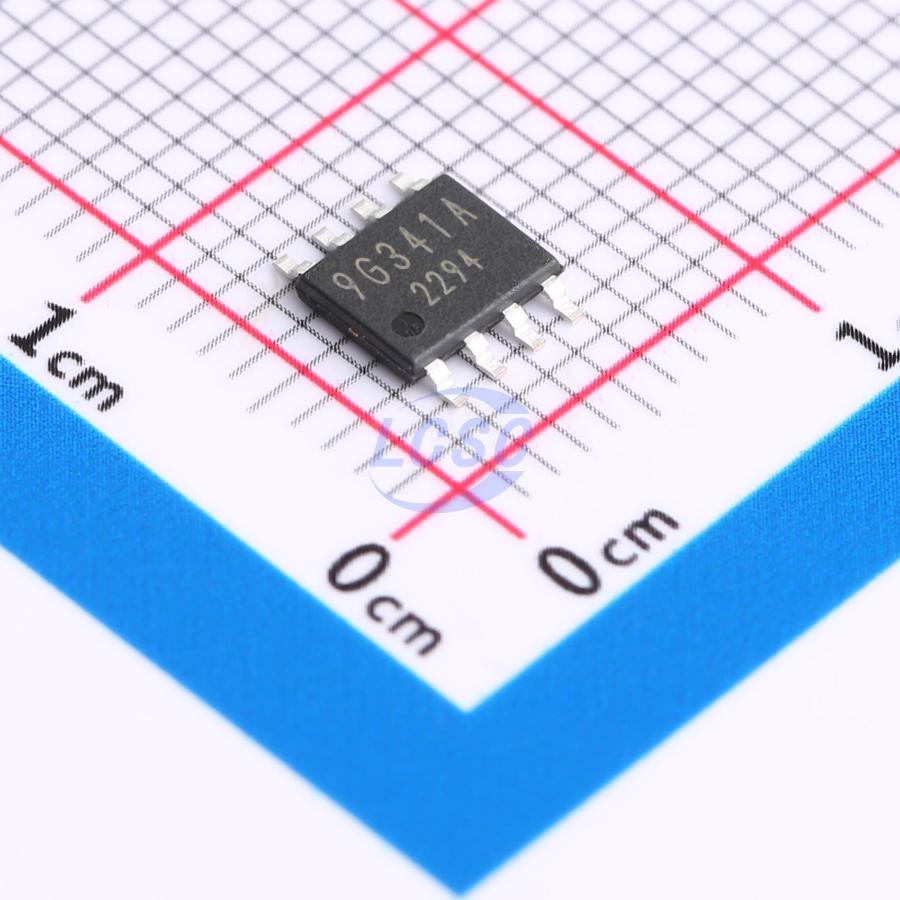

BD9G341AEFJ-LBE2

50kHz~750kHz Step-down type Adjustable 5V 3A SOP-8-EP Voltage Regulators - DC DC Switching Regulators RoHS

SOP-8-EPROHS3 CompliantActive

12V to 76V Input Voltage Range, 3A Output Current, Single Channel Buck Converter

Manufacturer: ROHM
Manufacturer part #: BD9G341AEFJ-LBE2
Store part #: C2072119
Package / case: SOP-8-EP
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,430 in stock

#C2072119

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹250.76	₹250.76
10+	₹214.05	₹2,140.50
30+	₹191.23	₹5,736.90
100+	₹167.54	₹16,754.00
500+	₹157.11	₹78,555.00
1,000+	₹152.33	₹1,52,330.00

Quantity (min 1)

1 × ₹250.76

₹250.76

excl. GST

₹295.90 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

BD9G341AEFJ-LBE2

₹250.76 for 1 + GST

Specifications

Operating Temperature: -40℃~+85℃
Frequency - Switching: 50kHz~750kHz
Function: Step-down type
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 12V~76V
Switch tube (built-in/external): Built-in
Output Voltage: 5V
Output Current: 3A
Quiescent Current: 1.5mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.025 g

Overview

The BD9G341AEFJ-LB is a buck switching regulator with integrated 150mΩ power MOSFET. Current mode architecture provides fast transient response and a simple phase compensation setup. The operating frequency is programmable from 50kHz to 750kHz. Additional protection features are included such as Over Current Protection, Thermal shutdown and Under voltage lockout. The under voltage lockout and hysteresis can be set by external resistor.

Applications

Industrial distributed power applications.
Battery powered equipment.

Key features

Long Time Support Product for Industrial Applications
Wide input voltage range from 12V to 76V.
Integrated 80V/3.5A/150mΩ NchFET.
Current mode.
Variable frequency from 50kHz to 750kHz.
Accurate reference voltage. (1.0V ±1.5%).
Precision ENUVLO threshold ±3%.
Soft-start function
0uA Standby current
Over Current Protection (OCP), Under Voltage Lockout(UVLO), Thermal-Shutdown(TSD), Over Voltage Protection (OVP)
Thermally enhanced HTSOP-J8 package
