ROHM

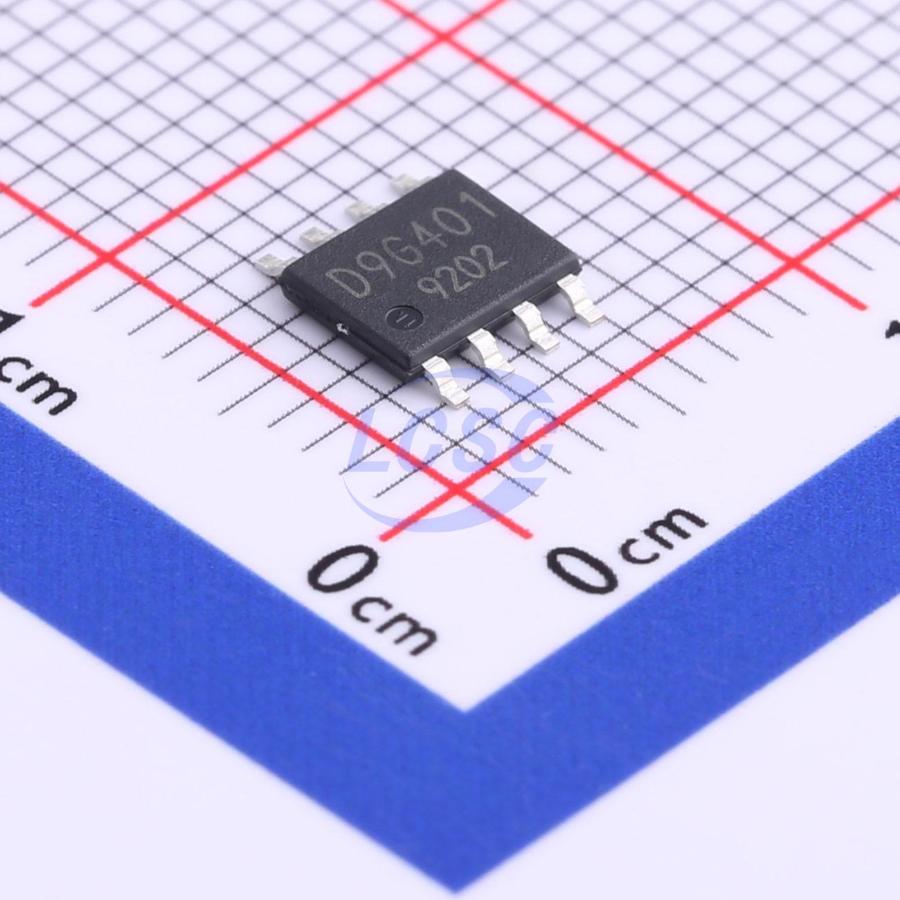

BD9G401EFJ-ME2

250kHz~500kHz Step-down type Adjustable 800mV~42V 3.5A HTSOP-8-EP Voltage Regulators - DC DC Switching Regulators RoHS

HTSOP-8-EPROHS3 CompliantActive

4.5V to 42V Input Voltage Range 3.5A Output Current Integrated FET Buck Converter

Manufacturer: ROHM
Manufacturer part #: BD9G401EFJ-ME2
Store part #: C559357
Package / case: HTSOP-8-EP
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,625 in stock

#C559357

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹93.11	₹93.11
10+	₹75.49	₹754.90
30+	₹66.57	₹1,997.10
100+	₹57.87	₹5,787.00
500+	₹47.87	₹23,935.00
1,000+	₹45.03	₹45,030.00

Quantity (min 1)

1 × ₹93.11

₹93.11

excl. GST

₹109.87 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

BD9G401EFJ-ME2

₹93.11 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+105℃
Frequency - Switching: 250kHz~500kHz
Number of Outputs: 1
Function: Step-down type
Features: Frequency synchronization;Cycle-by-cycle current limiting;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4.5V~42V
Switch tube (built-in/external): Built-in
Output Voltage: 800mV~42V
Output Current: 3.5A
Quiescent Current: 1.2mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.114 g

Overview

BD9G401EFJ is a buck converter with built-in high side MOSFET. It has an input voltage range of 4.5V to 42V. Current mode architecture provides fast transient response and a simple phase compensation setup. The IC is mainly used as a secondary side power supply: for example, a step-down output of 3.3V/5V can be produced from voltage power supply such as 12V or 24V. In addition, it has a synchronization function with an external CLK that provides noise management.

Applications

Consumer devices in general that has 12V / 24V lines
Automotive applications (Audio system, Navigation system, etc)
Industrial distributed-power applications
Entertainment equipment

Key features

AEC-Q100 Qualified
Integrated Nch MOSFET
Synchronizes to external clock 250kHz to 500kHz
ON/OFF Control through EN Terminal (Standby current of 0μA)
Small package(HTSOP-J8ES)
LowDrop Out operation
