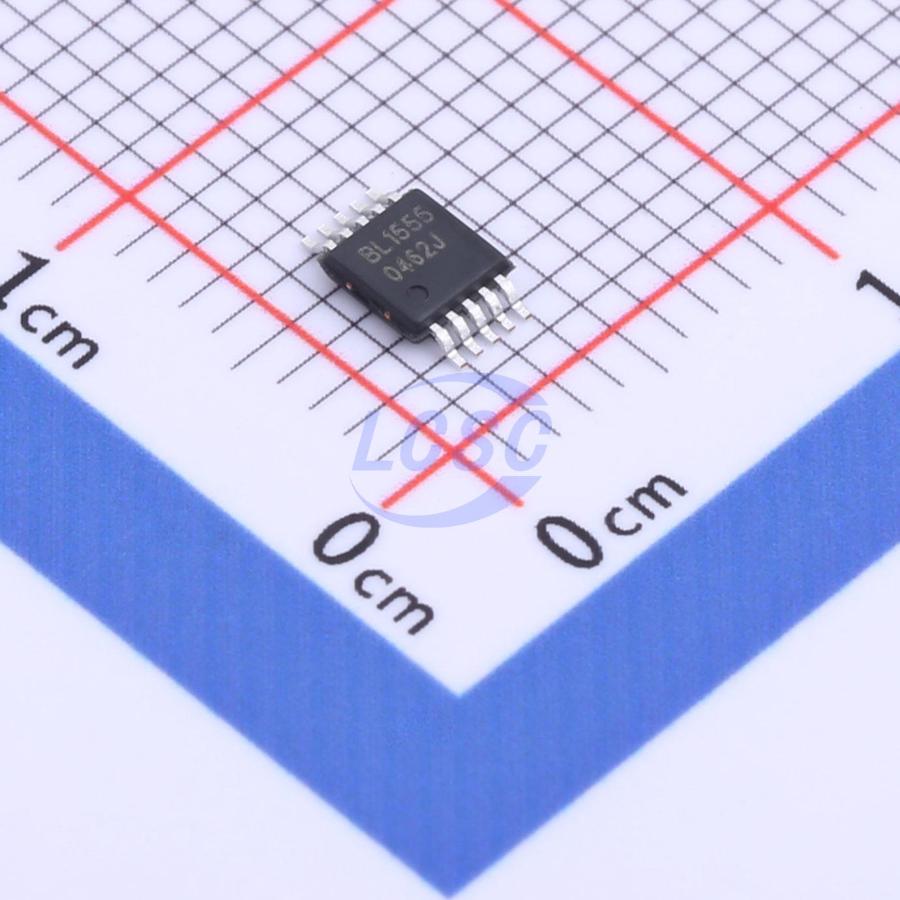

BL1555MM

2 1.65V~5.5V 300mΩ MSOP-10 Analog Switches, Multiplexers, Demultiplexers

MSOP-10RoHSActive

Ultra Low ON-Resistance, Low Voltage, Dual, SPDT Analog Switch

Manufacturer: BL
Manufacturer part #: BL1555MM
Store part #: C2826598
Package / case: MSOP-10
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

23,680 in stock

#C2826598

Stock & price checked 18 h ago

Quantity	Unit price	Pack price
5+	₹20.82	₹104.10
50+	₹16.79	₹839.50
150+	₹14.78	₹2,217.00
500+	₹13.27	₹6,635.00
3,000+	₹12.07	₹36,210.00
6,000+	₹11.46	₹68,760.00

Quantity (min 5, multiples of 5)

5 × ₹20.82

₹104.10

excl. GST

₹122.84 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

BL1555MM

₹104.10 for 5 + GST

Specifications

Features: Bidirectional analog channel;Glitch-free switching
Operating Temperature: -40℃~+125℃
Number of Channels: 2
Voltage - Supply: 1.65V~5.5V
Ron: 300mΩ
Con: 255pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.181 g

Overview

A Dual Wide-Bandwidth, fast single-pole double-throw (SPDT) CMOS switch featuring an On-Resistance of 0.3 ohm at VDD = 5V and wide power supply range from 1.65V to 5.5V. It can be used as an analog switch or as a low-delay bus switch. Break-before-make function for both parts eliminates signal disruption during switching from preventing both switches being enabled simultaneously.

Applications

Wireless Handsets
Portable Electronic Devices
Relay Replacement
PDAs
Audio & Video Signal Routing
PCMCIA Cards
Computer Peripherals
Modems

Key features

Wide Power Supply Range: 1.65V to 5.5V
Low On-Resistance: RoN(NC) = 0.3 Ω (VCC = 5V), Ron(NO) = 0.3 Ω (VCC = 5V)
Low On-Resistance Flatness: RFLAT(NC) = 0.08 Ω (VCC = 5V), RFLAT(NO) = 0.08 Ω (VCC = 5V)
-3dB Bandwidth: 33MHz
Rail-to-Rail Signal Range
High Off-Isolation: -66dB (f = 100 kHz)
Crosstalk Rejection: -74dB
Low Total Harmonic Distortion: 0.035%
Available in MSOP10 package
