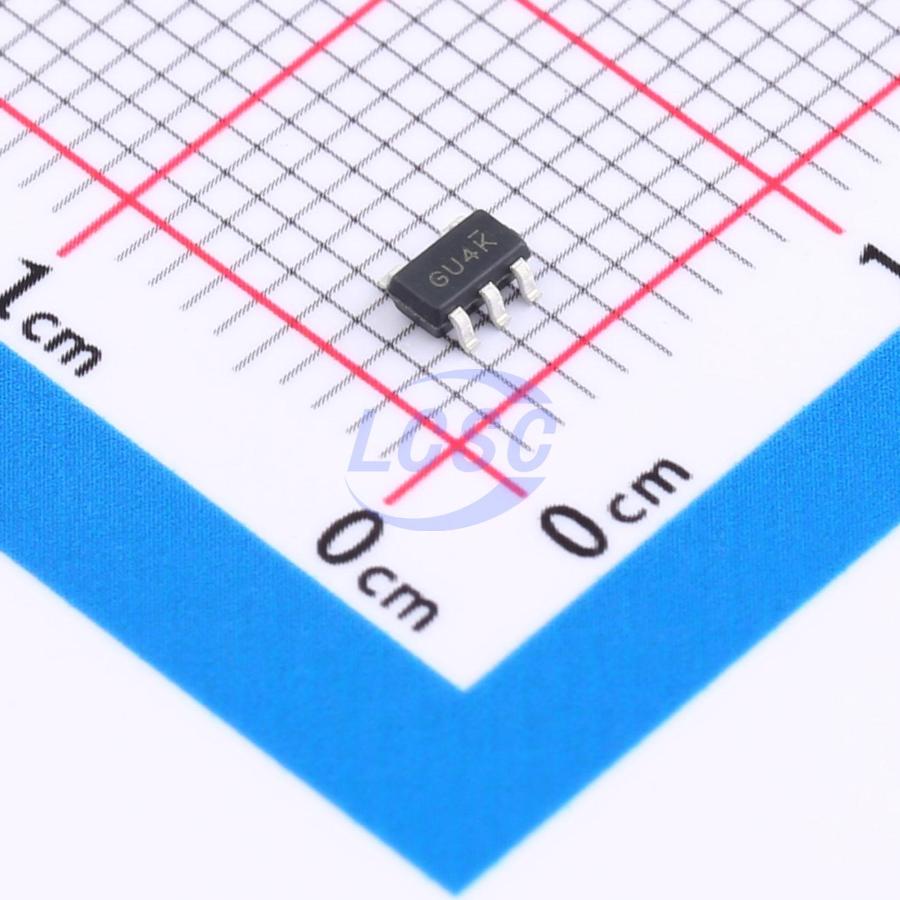

BL8028CB5TR
2MHz Step-down type Adjustable 600mV~5.5V 1.5A SOT-23-5 Voltage Regulators - DC DC Switching Regulators
SOT-23-5RoHSActive
1.5A 2MHz 5.5V Synchronous Buck Converter
- Manufacturer
- BL
- Manufacturer part #
- BL8028CB5TR
- Store part #
- C266177
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
90,480 in stock
#C266177
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.09 | ₹70.90 |
| 100+ | ₹5.81 | ₹581.00 |
| 300+ | ₹5.17 | ₹1,551.00 |
| 3,000+ | ₹4.68 | ₹14,040.00 |
| 6,000+ | ₹4.30 | ₹25,800.00 |
| 9,000+ | ₹4.11 | ₹36,990.00 |
10 × ₹7.09
₹70.90
excl. GST
₹83.66 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BL8028CB5TR
₹70.90 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 2MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 2.6V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 600mV~5.5V
- Output Current
- 1.5A
- Quiescent Current
- 80uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.044 g
Overview
The BL8028 high-efficiency switching regulator is a small, simple, DC-to-DC step-down converter capable of delivering up to 1.5A of output current. The device operates in pulse-width modulation (PWM) at 2MHz from a 2.6V to 5.5V input voltage and provides an output voltage from 0.6V to VIN, making the BL8028 ideal for on-board postregulation applications. An internal synchronous rectifier improves efficiency and eliminates the typical Schottky free-wheeling diode. Using the on resistance of the internal high-side MOSFET to sense switching currents eliminates current-sense resistors, further improving efficiency and cost.
Applications
- Cellular phones
- Digital cameras
- MP3 and MP4 players
- Set top boxes
- Wireless and DSL modems
- USB supplied devices in notebooks
- Portable devices
Key features
- High efficiency: up to 97%
- Up to 1.5A Max output current
- 2MHz switching frequency
- Low dropout 100% duty operation
- Internal compensation and soft-start
- Current mode control
- Reference 0.6V
- Logic control shutdown (I_O < 1uA)
- Thermal shutdown, UVLO
- Available in SOT23-5, DFN2x2-6
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BL8039CB5TR#C2924844BL · SOT-23-5 | BL | SOT-23-5 | 18,520 | ₹7.57 · 18,520 in stock | View |
