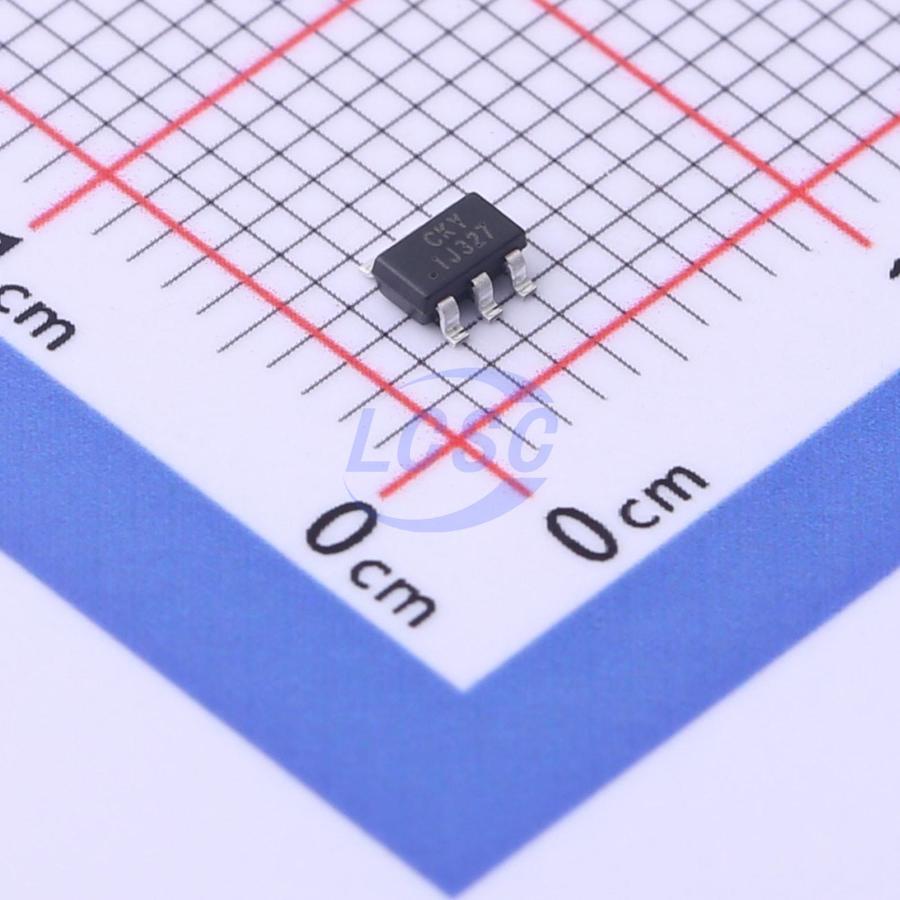

BL9362

1.6MHz~2.4MHz Step-down type Adjustable 600mA SOT-23-6L Voltage Regulators - DC DC Switching Regulators

SOT-23-6LRoHSActive

60V, 2MHz, 600mA Step-Down Converter

Manufacturer: BL
Manufacturer part #: BL9362
Store part #: C2909086
Package / case: SOT-23-6L
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

26,024 in stock

#C2909086

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹100.57	₹100.57
10+	₹82.75	₹827.50
30+	₹73.85	₹2,215.50
100+	₹64.95	₹6,495.00
500+	₹59.73	₹29,865.00
1,000+	₹56.92	₹56,920.00

Quantity (min 1)

1 × ₹100.57

₹100.57

excl. GST

₹118.67 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

BL9362

₹100.57 for 1 + GST

Specifications

Operating Temperature: -40℃~+85℃
Frequency - Switching: 1.6MHz~2.4MHz
Number of Outputs: 1
Function: Step-down type
Features: Cycle-by-cycle current limiting;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4.5V~60V
Switch tube (built-in/external): Built-in
Output Current: 600mA
Quiescent Current: 648uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.053 g

Overview

The BL9362 is a wide input range, high-efficiency, and high frequency DC-to-DC step-down switching regulator, capable of delivering up to 0.6A of output current. With a fixed switching frequency of 2MHz, this current mode PWM controlled converter allows the use of small external components, such as ceramic input and output caps, as well as small inductors. Including cold crank and double battery jumpstarts, the minimum input voltage may be as low as 4.5V and the maximum up to 60V, with even higher transient voltages. With these high input voltages, linear regulators cannot be used for high supply currents without overheating the regulator. Instead, high efficiency switching regulators such as BL9362 must be used to minimize thermal dissipation. BL9362 is available SOT23-6 Packages. 60V, 2MHz, 600mA Step-Down Converter

Applications

Smart/Industrial/Power Meters
Industrial Applications
Automotive Applications

Key features

Wide Input Operating Range from 4.5V to 60V
850mΩ internal NMOS
Up to 95% Efficiency at 16V in 12V out L = 47μH with 300mA loading Internal compensation
Capable of Delivering 600mA continuous output current Fixed 2MHz PWM operation
Internal soft start
Output voltage adjustable down to 0.795V
Cycle-by-cycle current limit
Current Mode control
Short-circuit protection
Logic Control Shutdown EN can be short to VIN
Thermal shutdown and UVLO
Available in SOT23-6 Package
