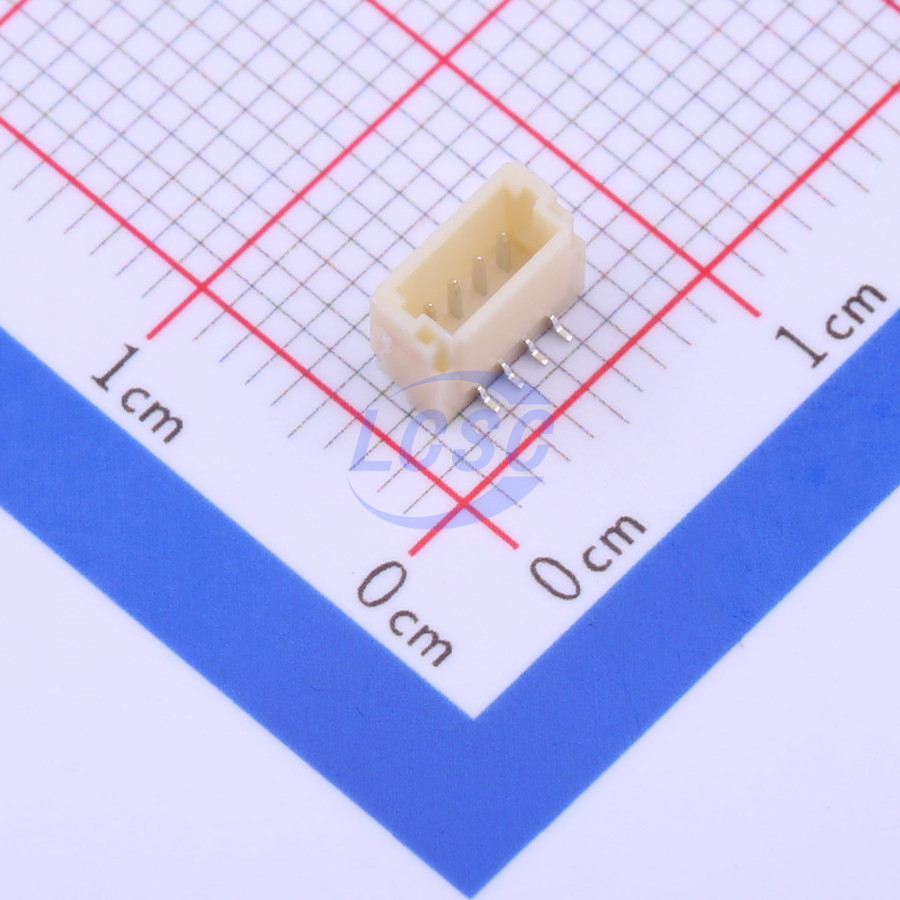

BM04B-SRSS-TB(LF)(SN)
Connector Header 4 position 1mm Pitch 1A Surface Mount,Vertical -25℃~+85℃
PopularSMD,P=1mmROHS CompliantActive
CONN HEADER SMD 4POS 1mm
- Manufacturer
- JST
- Manufacturer part #
- BM04B-SRSS-TB(LF)(SN)
- Store part #
- C160390
- Package / case
- SMD,P=1mm
- Category
- Headers, Male Pins
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
46,400 in stock
#C160390
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.86 | ₹169.30 |
| 50+ | ₹27.10 | ₹1,355.00 |
| 150+ | ₹23.80 | ₹3,570.00 |
| 1,500+ | ₹20.86 | ₹31,290.00 |
| 3,000+ | ₹20.06 | ₹60,180.00 |
| 4,500+ | ₹19.57 | ₹88,065.00 |
5 × ₹33.86
₹169.30
excl. GST
₹199.77 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
BM04B-SRSS-TB(LF)(SN)
₹169.30 for 5 + GST
Specifications
- Connector Type
- Surface Mount,Vertical
- Reference Series
- SR
- Voltage Rating (Max)
- 50V
- Contact Material
- Copper alloy
- Number of PINs Per Row
- 4
- Number of Rows
- 1
- Pitch
- 1mm
- Flame Retardant Rating
- UL94V-0
- Current Rating
- 1A
- Supplementary Features
- Auxiliary Solder Pin
- Number of PINs
- 4P
- Operating Temperature
- -25℃~+85℃
- Contact Plating
- Tin
- Plastic Material
- PA
- Color
- White
- X-Length of Bottom Edge on Board (Spacing Line)
- 6mm
- Pin Structure
- 1x4P
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.325 g
