BQ24045DSQR

The bq2404x series of devices are highly integrated lithium-ion and lithium-polymer linear charger devices designed for space-constrained portable applications. The device is powered by a USB port or an AC adapter. The high input voltage range with input overvoltage protection supports low-cost, unregulated adapters. The bq2404x has a single power output for battery charging. If the average system load cannot fully charge the battery within the 10-hour safety timer period, the system load can be connected in parallel with the battery. Battery charging goes through the following three stages: regulation, constant current, and constant voltage. During all charging stages, the internal control loop monitors the IC junction temperature, and when it exceeds the internal temperature threshold, it reduces the charging current. The charger power stage and charging current sensing function are fully integrated. This charger features high-precision current and voltage regulation loop functions, charging status indication, and charging termination function. Both the pre-charge current and termination current thresholds can be programmed via external resistors on the bq24040 and bq24045. The fast charge current value can also be programmed via an external resistor.

Applications

• Smartphones
• PDAs
• MP3 Players
• Low-power handheld devices

Key features

• 1% charge voltage accuracy
• 10% charge current accuracy
• Pin-selectable USB 100mA and 500mA maximum input current limits
• Programmable termination and precharge thresholds, bq24040 and bq24045
• bq24045 supports high-voltage (4.35V) battery chemistry
• 30V input voltage rating; input overvoltage protection at 6.6V or 7V
• Input voltage dynamic power management
• 125°C thermal regulation; 150°C thermal shutdown protection
• OUT short-circuit protection and ISET short-circuit detection
• JEITA-compliant operation via battery NTC — 1/2 fast charge current at low temperature, 4.06V voltage at high temperature, bq24040 and bq24045
• Fixed 10-hour safety timer, bq24040 and bq24045
• Automatic termination and timer disable mode (TTDM) for missing battery pack with thermistor, bq24040 and bq24045
• Status indication — Charging/Done

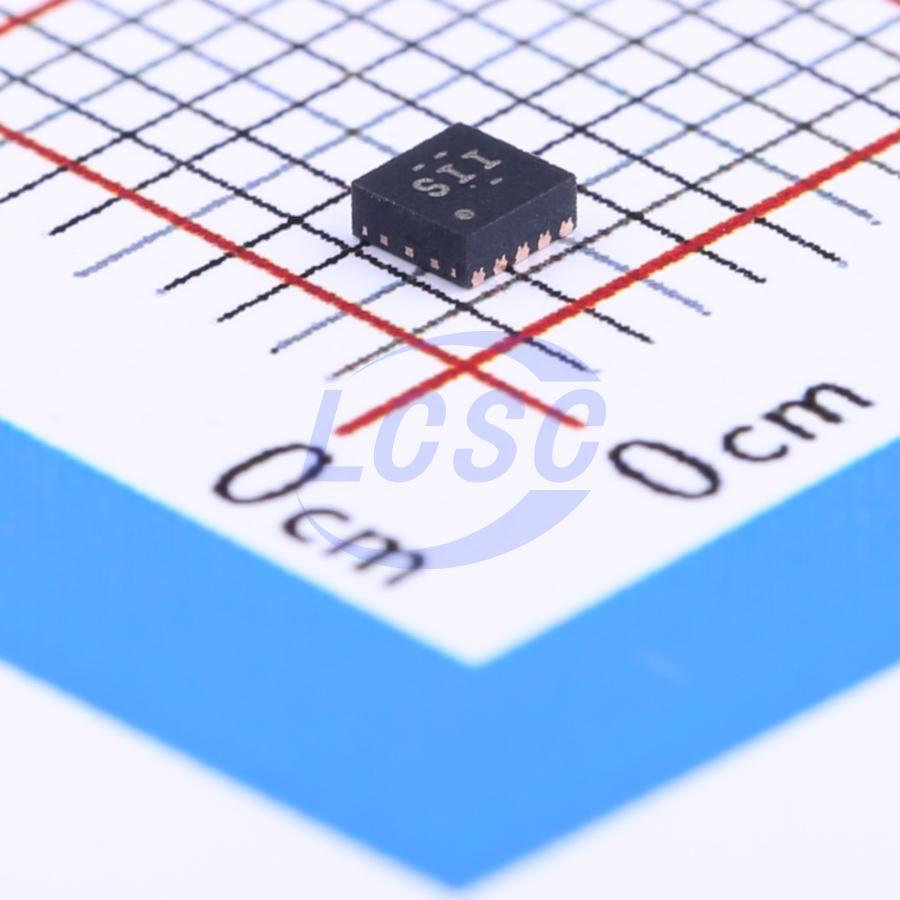

• Small 2mm×2mm² dual flat no-lead (DFN)-10 package
• Integrated auto-start for production line testing, bq24041
