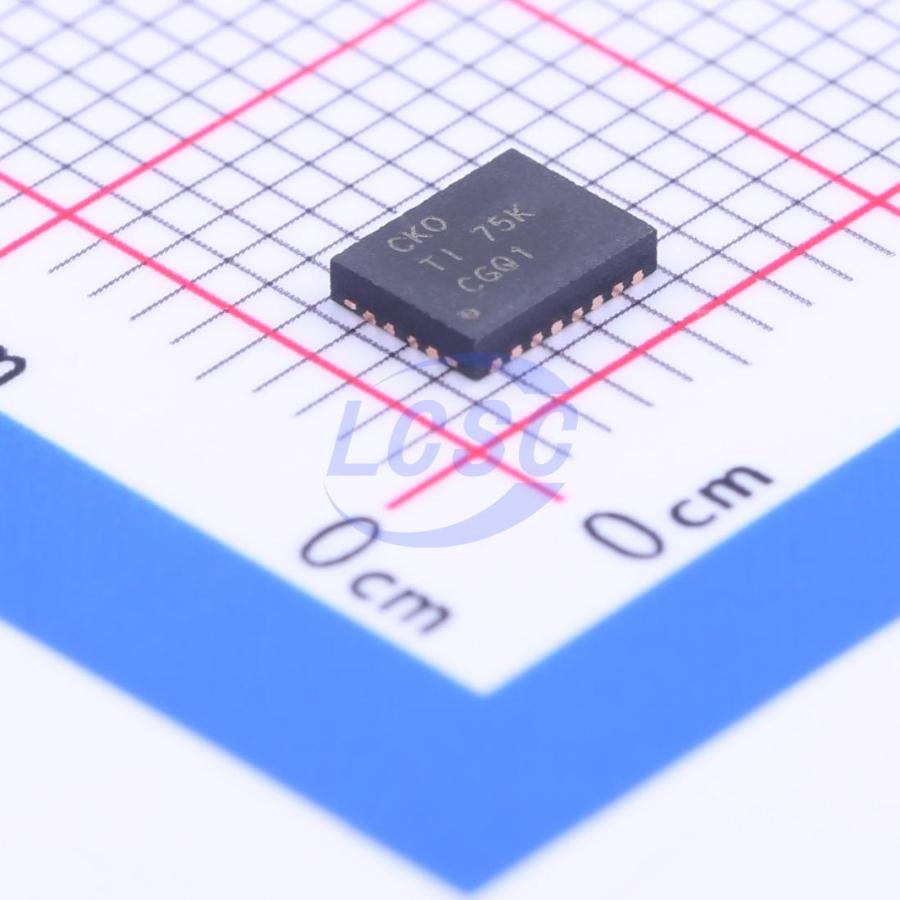

BQ24103ARHLR

4.35V~16V 1~2 Lithium Battery 2A QFN-20-EP(3.7x4.7) Battery Chargers RoHS

QFN-20-EP(3.7x4.7)ROHS3 CompliantActive

Synchronous Switch Mode, Li-Ion and Li-Polymer Charge-Management IC with Integrated Power FETs

Manufacturer: TI
Manufacturer part #: BQ24103ARHLR
Store part #: C40964
Package / case: QFN-20-EP(3.7x4.7)
Category: Battery Chargers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,126 in stock

#C40964

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹358.33	₹358.33
10+	₹305.81	₹3,058.10
30+	₹272.83	₹8,184.90
100+	₹239.19	₹23,919.00
500+	₹224.00	₹1,12,000.00
1,000+	₹217.26	₹2,17,260.00

Quantity (min 1)

1 × ₹358.33

₹358.33

excl. GST

₹422.83 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

BQ24103ARHLR

₹358.33 for 1 + GST

Specifications

Voltage - Supply: 4.35V~16V
Quiescent Current: 5uA
Operating Temperature: -40℃~+125℃
Number of Cells: 1~2
Battery Temperature Detection: Support
Type of Battery: Lithium Battery
The Chip Type: Charging IC
Charge Current - Max: 2A
Charging Saturation Voltage: 8.4V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.205 g

Overview

The bqSWITCHER™ series are highly integrated Li-ion and Li-polymer switch-mode charge management devices targeted at a wide range of portable applications. The bqSWITCHER™ series offers integrated synchronous PWM controller and power FETs, high-accuracy current and voltage regulation, charge preconditioning, charge status, and charge termination, in a small, thermally enhanced QFN package. The system-controlled version provides additional inputs for full charge management under system control. The bqSWITCHER charges the battery in three phases: conditioning, constant current, and constant voltage. Charge is terminated based on userselectable minimum current level. A programmable charge timer provides a safety backup for charge termination. The bqSWITCHER automatically restarts the charge cycle if the battery voltage falls below an internal threshold. The bqSWITCHER automatically enters sleep mode when VCC supply is removed.

Applications

Handheld Products
Portable Media Players
Industrial and Medical Equipment
Portable Equipment

Key features

Ideal For Highly Efficient Charger Designs For Single-, Two- or Three-Cell Li-Ion and Li-Polymer Battery Packs bq24105 Also for LiFePO₄ Battery (see Using bq24105 to Charge the LiFePO₄ Battery)
Integrated Synchronous Fixed-Frequency PWM Controller Operating at 1.1 MHz With 0% to 100% Duty Cycle
Integrated Power FETs For Up To 2-A Charge Rate
High-Accuracy Voltage and Current Regulation
Available In Both Stand-Alone (Built-In Charge Management and Control) and System-Controlled (Under System Command) Versions
Status Outputs For LED or Host Processor Interface Indicates Charge-In-Progress, Charge Completion, Fault, and AC-Adapter Present Conditions
20-V Maximum Voltage Rating on IN and OUT Pins
High-Side Battery Current Sensing
Battery Temperature Monitoring
Automatic Sleep Mode for Low Power Consumption
System-Controlled Version Can Be Used In NiMH and NiCd Applications
Reverse Leakage Protection Prevents Battery Drainage
Thermal Shutdown and Protection
Built-In Battery Detection
Available in 20-Pin, 3.5mm×4.5mm FN Package
