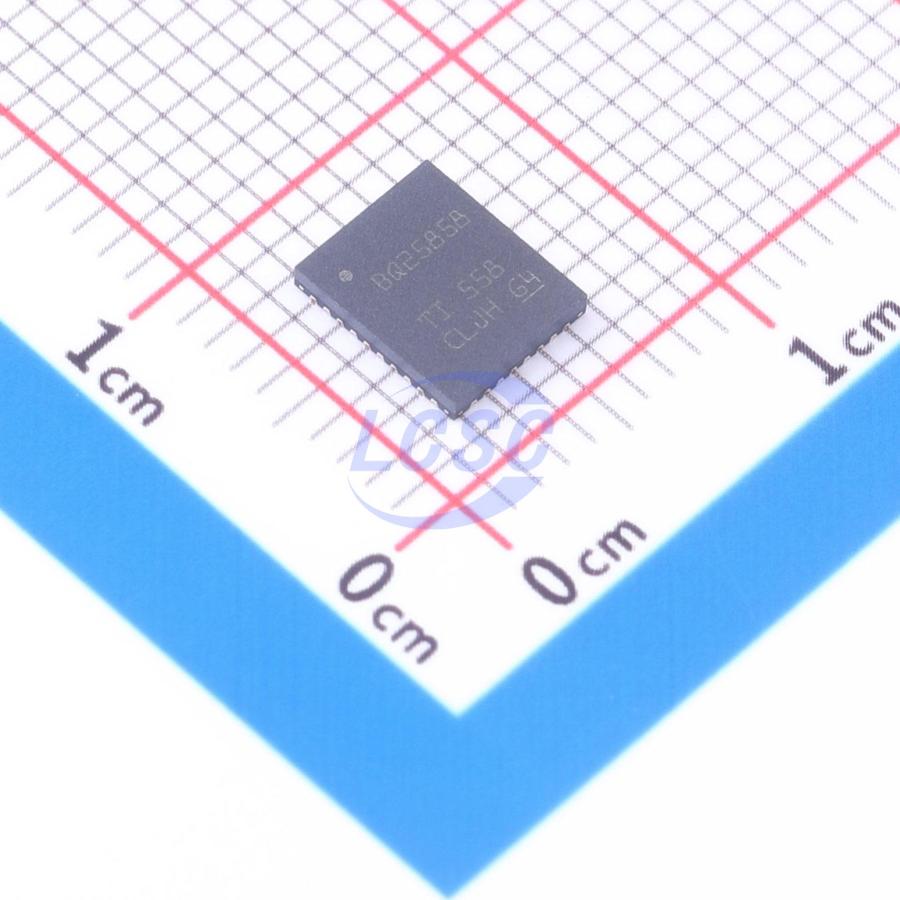

BQ25858QWRRVRQ1

BQ25858-Q1 and BQ25858B-Q1 are automotive-grade wide input voltage bidirectional buck-boost switching controllers. These devices deliver high-efficiency regulation over a wide voltage range with output constant current–constant voltage (CC-CV) control. All loop compensation for the buck-boost converter is integrated on-chip, enabling a high-density, easy-to-use solution. In reverse mode, the devices draw power from the output supply, regulate the input terminal voltage, and add an extra current loop for protection. In addition to I2C host control mode, the devices support programmable hardware limits. The input current and output current regulation targets can be set independently via a single resistor on the IIN pin and IOUT pin, respectively. By default, the devices are programmed to provide a 5V output; the target output voltage can be adjusted via the VOUT_REG register bits.

Applications

• Low-voltage battery systems
• Automotive USB charging
• Central computing unit multi-domain
• ADAS domain controllers
• Infotainment and instrument clusters

Key features

• AEC-Q100 automotive qualified, Temperature Grade 1: -40℃ ≤ TA ≤ 150℃
• Wide input voltage operating range: 4.4V to 70V, 20mV step
• Synchronous buck-boost DC/DC controller with NFET drivers
• Switching frequency adjustable from 200kHz to 600kHz
• Switching frequency dithering for EMI noise reduction (DRSS)
• Optional synchronization to external clock
• Integrated loop compensation with soft-start
• Selectable PFM mode for improved light-load efficiency (PFM or forced PWM options)
• Selectable gate driver supply input for optimized efficiency
• USB-PD Extended Power Range (EPR) support for both forward and reverse power direction
• Output voltage adjustable from 3.3V to 60V, 20mV step
• Adjustable input and output current regulation (RAC_SNS, ROUT_SNS), 400mA to 20A range with 5mΩ resistor, 50mA step
• Bypass mode for maximum efficiency when VOUT = VAC
• Buck-only mode
• Output voltage regulation accuracy ±2%
• Output/input current regulation accuracy ±3%
• Input voltage regulation accuracy ±2%
• I2C control for optimal system performance with resistor-programmable option
• Hardware-adjustable input and output current limits
• Integrated 16-bit ADC for voltage, current, and temperature monitoring
• Adjustable input overvoltage and undervoltage protection
• Output overvoltage and overcurrent protection
• Thermal shutdown
• Input power presence status output (PG)
• Switching operation status output (STAT)
• 36-pin 5mm × 6mm QFN package with wettable flanks
