BLUE ROCKETDatasheet (PDF)

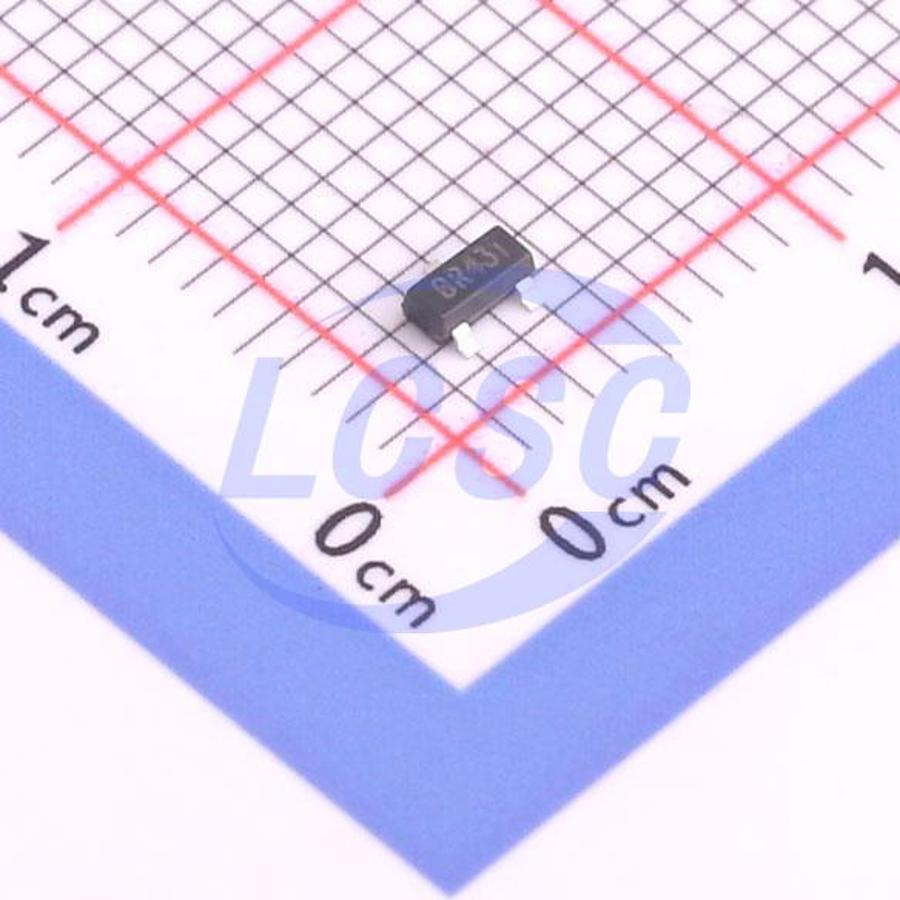

BR431M
Shunt Voltage Reference IC Adjustable 2.5V~37V ±0.4%;;;±0.8% 100mA SOT-23
SOT-23RoHSActive
IC VREF SHUNT ADJ ±0.4% ±0.8% SOT-23
- Manufacturer
- BLUE ROCKET
- Manufacturer part #
- BR431M
- Store part #
- C5328702
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,070 in stock
#C5328702
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹5.20 | ₹26.00 |
| 50+ | ₹4.14 | ₹207.00 |
| 150+ | ₹3.61 | ₹541.50 |
| 500+ | ₹3.20 | ₹1,600.00 |
| 3,000+ | ₹2.77 | ₹8,310.00 |
| 6,000+ | ₹2.59 | ₹15,540.00 |
5 × ₹5.20
₹26.00
excl. GST
₹30.68 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BR431M
₹26.00 for 5 + GST
Specifications
- Quiescent Current
- 400uA
- Output Voltage
- 2.5V~37V
- Tolerance
- ±0.4%;±0.8%
- Minimum Cathode Current for Regulation
- 400uA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+125℃
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
Precision Adjustable Shunt Regulator in SOT-23 Plastic Package. Precision adjustable shunt regulator in a SOT-23 Plastic Package.
Applications
- Used for linear regulators, adjustable power supplies, and switching power supplies.
- Linear regulators, adjustable power supply, switching power supply.
Key features
- Precision reference voltage 2.500V; voltage tolerance ±0.4%, ±0.8%
- Cathode current capability 1.0mA~100mA, fast turn-on
- Adjustable output voltage V₀ = Vref~37V
- Low cathode operating current (typical: 400μA)
- Low dynamic output impedance (typical: 0.15Ω)
