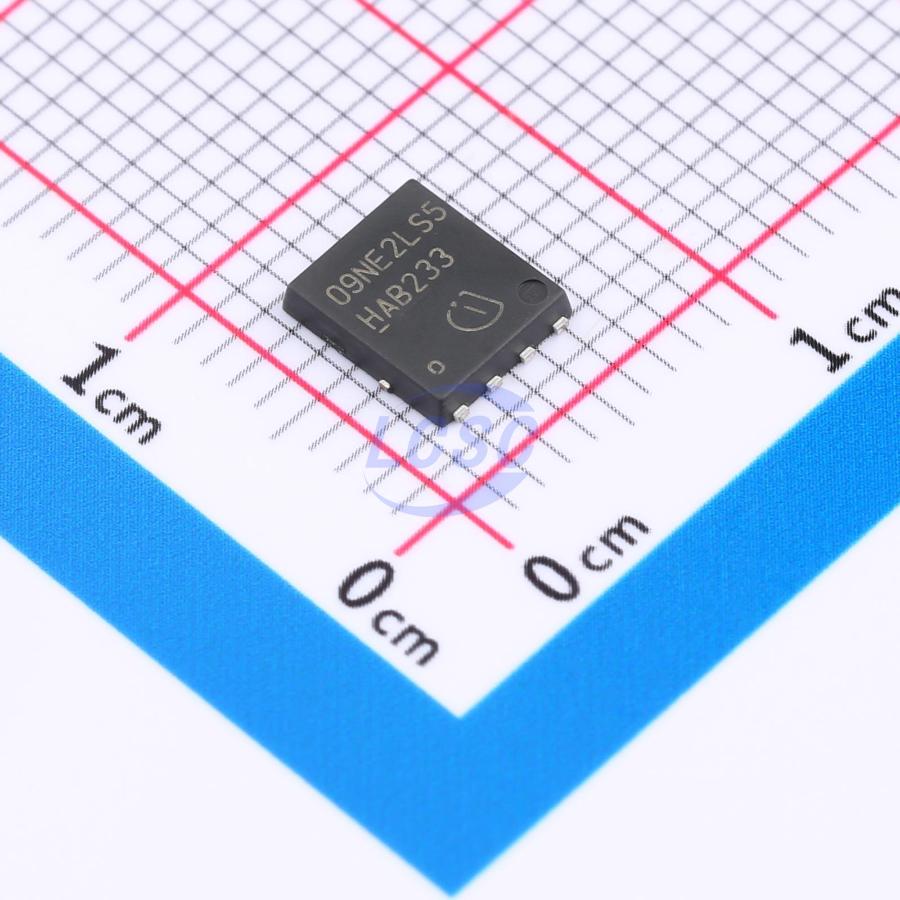

BSC009NE2LS5
N-Channel 25V 100A 2.5W Surface Mount TDSON-8(5x6)
TDSON-8(5x6)ROHS3 CompliantActive
MOSFET N-CH 25V 100A TDSON-8(5x6)
- Manufacturer
- Infineon
- Manufacturer part #
- BSC009NE2LS5
- Store part #
- C534276
- Package / case
- TDSON-8(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
87 in stock
#C534276
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹190.31 | ₹190.31 |
| 10+ | ₹159.04 | ₹1,590.40 |
| 30+ | ₹141.87 | ₹4,256.10 |
| 100+ | ₹117.10 | ₹11,710.00 |
| 500+ | ₹108.63 | ₹54,315.00 |
| 1,000+ | ₹104.72 | ₹1,04,720.00 |
1 × ₹190.31
₹190.31
excl. GST
₹224.57 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
BSC009NE2LS5
₹190.31 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.4nF
- Ciss-Input Capacitance
- 3.9nF
- Pd - Power Dissipation
- 2.5W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 25V
- Current - Continuous Drain(Id)
- 100A
- Reverse Transfer Capacitance (Crss)
- 130pF
- RDS(on)
- 0.9mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 28nC
- Vgs
- ±16V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.5 g
Overview
Key features
- Optimized for high performance buck converters
- Very low on-resistance RDS(on) @ VGS = 4.5V
- 100% avalanche tested
- Superior thermal resistance
- N-channel
- Qualified according to JEDEC for target applications
- Pb-free lead plating; RoHS compliant
- Halogen-free according to IEC61249-2-21
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IAUC120N04S6L009#C535702Infineon · TDSON-8(6.2x5.2) | Infineon | TDSON-8(6.2x5.2) | 5 | ₹569.59 · 5 in stock | View |
 | BSC011N03LSI#C534283Infineon · TDSON-8(5x6) | Infineon | TDSON-8(5x6) | On request | ₹132.37 · 0 in stock | View |
 | NTMFS3D2N10MDT1G#C5209348onsemi · DFN-5(5x6)(SO-8FL) | onsemi | DFN-5(5x6)(SO-8FL) | 6 | ₹830.74 · 6 in stock | View |
 | BSC010N04LSI#C534280Infineon · TDSON-8-EP(5x6) | Infineon | TDSON-8-EP(5x6) | 1 | ₹180.51 · 1 in stock | View |
 | BSC022N04LS#C148266Infineon · TDSON-8(5x6) | Infineon | TDSON-8(5x6) | 25 | ₹941.76 · 25 in stock | View |
