InfineonDatasheet (PDF)

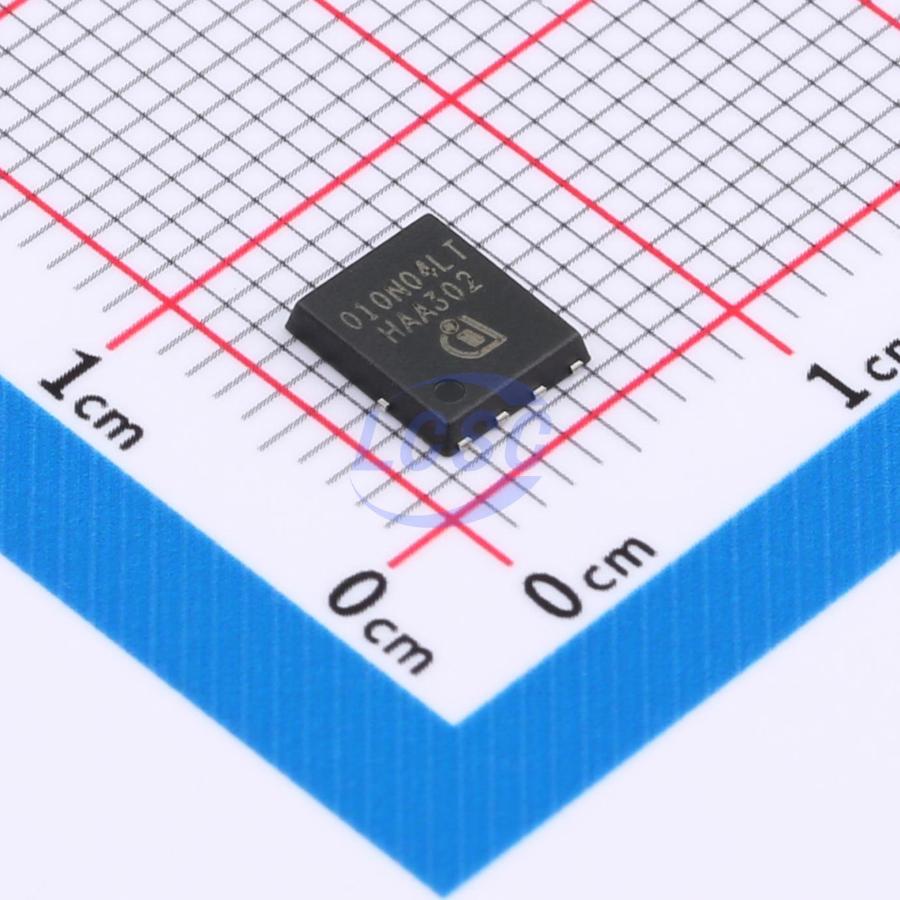

BSC010N04LST
40V 100A 167W Surface Mount TDSON-8FL
TDSON-8FLROHS CompliantSold out at source
MOSFET 40V 100A TDSON-8FL
- Manufacturer
- Infineon
- Manufacturer part #
- BSC010N04LST
- Store part #
- C534281
- Package / case
- TDSON-8FL
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12 in stock
#C534281
Stock & price checked 40 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹285.21 | ₹285.21 |
| 10+ | ₹278.93 | ₹2,789.30 |
| 30+ | ₹274.88 | ₹8,246.40 |
| 100+ | ₹270.62 | ₹27,062.00 |
1 × ₹285.21
₹285.21
excl. GST
₹336.55 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
BSC010N04LST
₹285.21 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.9nF
- Ciss-Input Capacitance
- 9.52nF
- Pd - Power Dissipation
- 167W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 100A
- Reverse Transfer Capacitance (Crss)
- 320pF
- RDS(on)
- 1mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 95nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Sold out at source
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.375 g
Overview
Key features
- Optimized for sychronous rectification
- 175 °C rated
- Very low on-resistance RDS(on)
- 100% avalanche tested
- Superior thermal resistance
- N-channel, logic level
- Qualified according to JEDEC for target applications
- Pb-free lead plating; RoHS compliant
- Halogen-free according to IEC61249-2-21
- Higher solder joint reliability due to enlarged source interconnection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BSC010N04LS#C501508Infineon · TDSON-8FL | Infineon | TDSON-8FL | 10,612 | ₹115.89 · 10,612 in stock | View |
 | BSC014N06NS#C113391Infineon · TDSON-8-FL | Infineon | TDSON-8-FL | 29,965 | ₹200.75 · 29,965 in stock | View |
 | BSC009N04LSSCATMA1#C6753334Infineon · WSON-8 | Infineon | WSON-8 | 36 | ₹402.66 · 36 in stock | View |
 | IAUC120N04S6N010ATMA1#C3288874Infineon · TDSON-8 | Infineon | TDSON-8 | 43 | ₹265.29 · 43 in stock | View |
 | IPC100N04S5-1R2#C536691Infineon · TDSON-8 | Infineon | TDSON-8 | 20 | ₹249.45 · 20 in stock | View |
