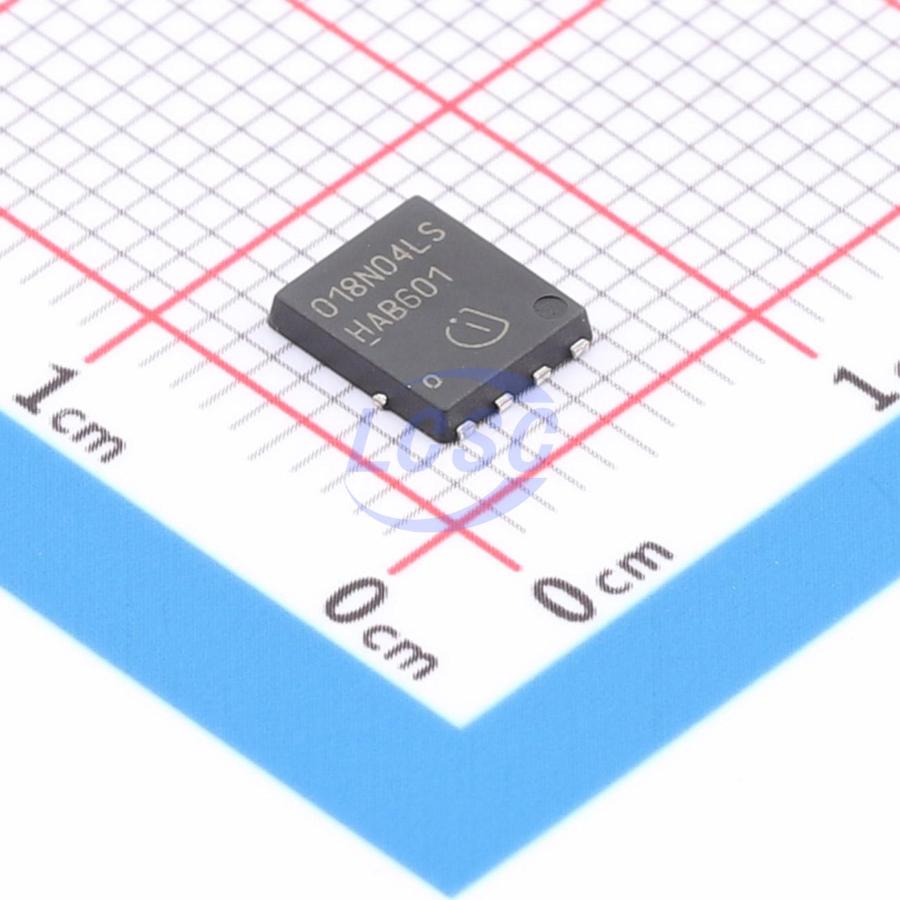

BSC018N04LS G
125W 40V 100A 1.8mΩ@10V 1 N-channel N-Channel TDSON-8-EP(5x6) Single FETs, MOSFETs RoHS
TDSON-8-EP(5x6)ROHS3 CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- BSC018N04LS G
- Store part #
- C534297
- Package / case
- TDSON-8-EP(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
28 in stock
#C534297
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹134.01 | ₹134.01 |
| 10+ | ₹130.98 | ₹1,309.80 |
| 30+ | ₹128.81 | ₹3,864.30 |
| 100+ | ₹126.64 | ₹12,664.00 |
1 × ₹134.01
₹134.01
excl. GST
₹158.13 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
BSC018N04LS G
₹134.01 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.8nF
- Ciss-Input Capacitance
- 12nF
- Pd - Power Dissipation
- 125W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 100A
- Reverse Transfer Capacitance (Crss)
- 100pF
- RDS(on)
- 1.8mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 150nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.268 g
Overview
Key features
- Fast-switching MOSFET for SMPS
- Technology optimized for DC/DC converters
- JEDEC-compliant for target applications
- N-channel; logic level
- Excellent gate charge × RDS(on) figure of merit (FOM)
- Ultra-low on-resistance RDS(on)
- Superior thermal resistance performance
- 100% avalanche tested
- Lead-free plating; RoHS compliant
- Halogen-free per IEC61249-2-21
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BSC016N04LS G#C534294Infineon · TDSON-8-EP(5x6) | Infineon | TDSON-8-EP(5x6) | 4,705 | ₹149.58 · 4,705 in stock | View |
 | STL130N6F7#C501008ST · PowerFLAT-5x6 | ST | PowerFLAT-5x6 | 9,082 | ₹158.59 · 9,082 in stock | View |
 | STL140N6F7#C472545ST · PDFN-8(5x5.8) | ST | PDFN-8(5x5.8) | 4,976 | ₹110.50 · 4,976 in stock | View |
 | NVMFS5C628NLAFT1G#C604608onsemi · SO-8FL | onsemi | SO-8FL | 4 | ₹1,021.82 · 4 in stock | View |
 | BRCS010N04SZC#C22448994BLUE ROCKET · PDFN-8(5x6) | BLUE ROCKET | PDFN-8(5x6) | 68 | ₹131.70 · 68 in stock | View |
