InfineonDatasheet (PDF)

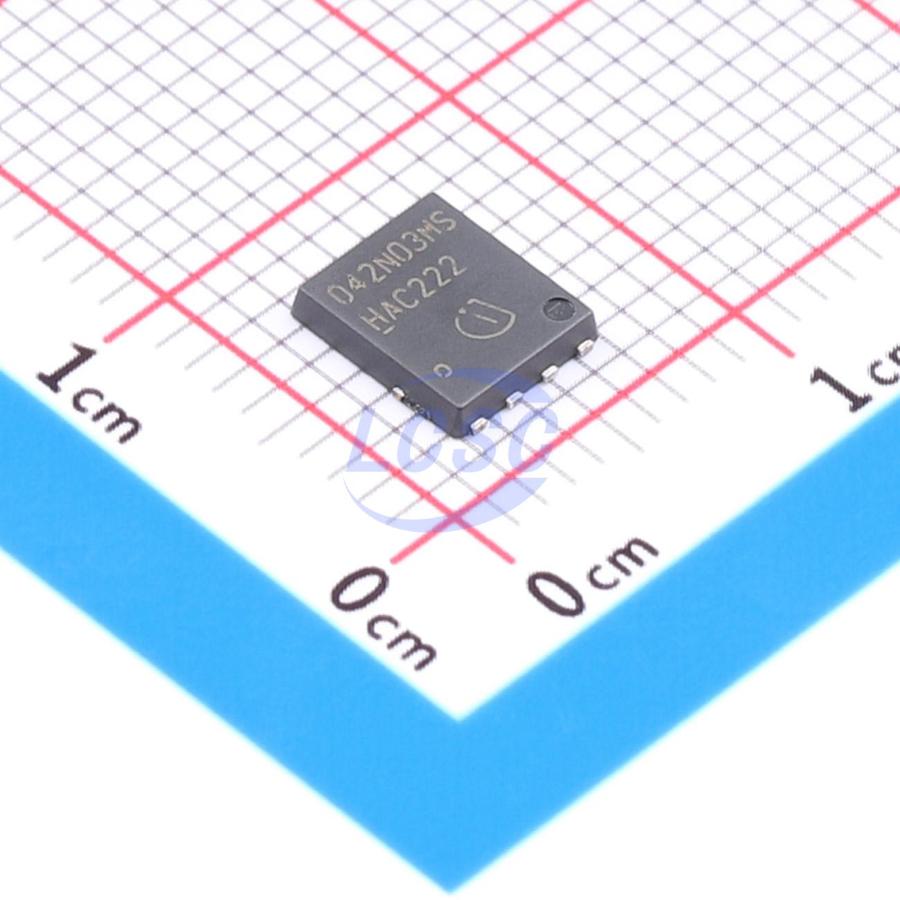

BSC042N03MS G
N-Channel 30V 93A 57W Surface Mount TDSON-8(5x6)
TDSON-8(5x6)ROHS3 CompliantActive
MOSFET N-CH 30V 93A TDSON-8(5x6)
- Manufacturer
- Infineon
- Manufacturer part #
- BSC042N03MS G
- Store part #
- C534337
- Package / case
- TDSON-8(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C534337
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹43.76 | ₹43.76 |
| 10+ | ₹42.68 | ₹426.80 |
| 30+ | ₹42.02 | ₹1,260.60 |
| 100+ | ₹41.15 | ₹4,115.00 |
1 × ₹43.76
₹43.76
excl. GST
₹51.64 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
BSC042N03MS G
₹43.76 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 940pF
- Ciss-Input Capacitance
- 4.3nF
- Pd - Power Dissipation
- 57W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 93A
- Reverse Transfer Capacitance (Crss)
- 66pF
- RDS(on)
- 4.2mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 27nC@4.5V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.171 g
Overview
Key features
- Optimized for 5V driver application (Notebook, VGA, POL)
- Low FOM_SW for High Frequency SMPS
- 100% Avalanche tested
- N-channel
- Very low on-resistance R_DS(on) @ V_GS = 4.5 V
- Excellent gate charge x R_DS(on) product (FOM)
- Qualified according to JEDEC for target applications
- Superior thermal resistance
- Pb-free plating; RoHS compliant
- Halogen-free according to IEC61249-2-21
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BSC026N04LS#C3039672Infineon · TDSON-8(5x6) | Infineon | TDSON-8(5x6) | 27,370 | ₹94.30 · 27,370 in stock | View |
 | PJMG100N40DN#C51625758PJSEMI · PDFN-8L(5x6) | PJSEMI | PDFN-8L(5x6) | 170 | ₹49.43 · 170 in stock | View |
 | NTMFS5H414NLT1G#C604448onsemi · SO-8FL | onsemi | SO-8FL | 10 | ₹844.58 · 10 in stock | View |
 | NTMFS5C645NLT1G#C513302onsemi · SO-8FL | onsemi | SO-8FL | 831 | ₹162.03 · 831 in stock | View |
 | SKQ90N10AD#C5334593Shikues · PDFN-8L(5x6) | Shikues | PDFN-8L(5x6) | 3,505 | ₹71.80 · 3,505 in stock | View |
