InfineonDatasheet (PDF)

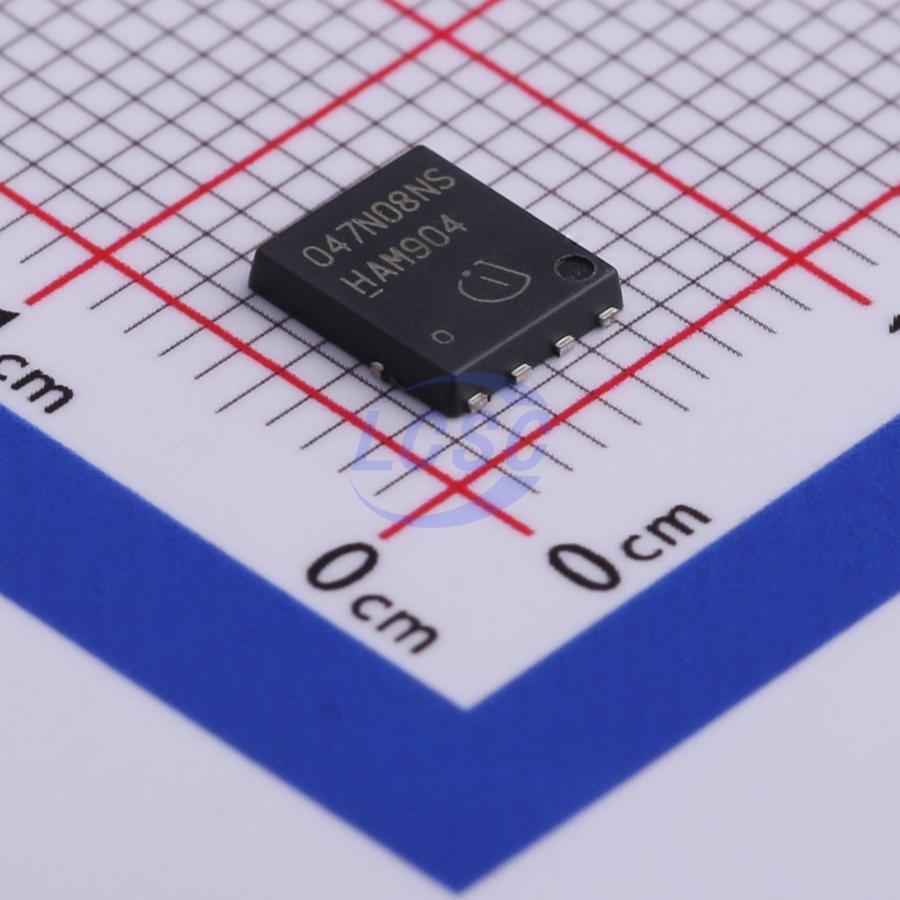

BSC047N08NS3G
N-Channel 80V 100A 125W Surface Mount TDSON-8(5x6)
TDSON-8(5x6)ROHS3 CompliantActive
MOSFET N-CH 80V 100A TDSON-8(5x6)
- Manufacturer
- Infineon
- Manufacturer part #
- BSC047N08NS3G
- Store part #
- C501500
- Package / case
- TDSON-8(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
29 in stock
#C501500
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹275.77 | ₹275.77 |
| 10+ | ₹235.73 | ₹2,357.30 |
| 30+ | ₹210.61 | ₹6,318.30 |
| 100+ | ₹185.05 | ₹18,505.00 |
| 500+ | ₹173.34 | ₹86,670.00 |
| 1,000+ | ₹168.23 | ₹1,68,230.00 |
1 × ₹275.77
₹275.77
excl. GST
₹325.41 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
BSC047N08NS3G
₹275.77 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 960pF
- Ciss-Input Capacitance
- 3.6nF
- Pd - Power Dissipation
- 125W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 80V
- Current - Continuous Drain(Id)
- 100A
- Reverse Transfer Capacitance (Crss)
- 36pF
- RDS(on)
- 4.7mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 69nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.144 g
Overview
Key features
- High-frequency switching and synchronous rectification
- Technology optimized for DC/DC converters
- Excellent gate charge × RDS(on) figure of merit (FOM)
- Ultra-low on-resistance RDS(on)
- Superior thermal resistance
- N-channel, normally-on
- 100% avalanche tested
- Lead-free plating; RoHS compliant
- JEDEC qualified for target applications
- Halogen-free per IEC61249-2-21
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BSC057N08NS3G#C148260Infineon · TDSON-8(5x6) | Infineon | TDSON-8(5x6) | 12,368 | ₹210.21 · 12,368 in stock | View |
 | HSBA8070#C53244013HUASHUO · PRPAK-8(5x6) | HUASHUO | PRPAK-8(5x6) | 44 | ₹84.63 · 44 in stock | View |
 | SP012N05GNK#C54139949Siliup · PDFN-8L(5x6) | Siliup | PDFN-8L(5x6) | 3,140 | ₹98.97 · 3,140 in stock | View |
 | CSD19531Q5A#C2760462TI · VSONP-8(5x6) | TI | VSONP-8(5x6) | 12,987 | ₹190.99 · 12,987 in stock | View |
 | MGC036N10N#C49242759Megain · PDFN5x6-8 | Megain | PDFN5x6-8 | 142 | ₹68.45 · 142 in stock | View |
