HXY MOSFETDatasheet (PDF)

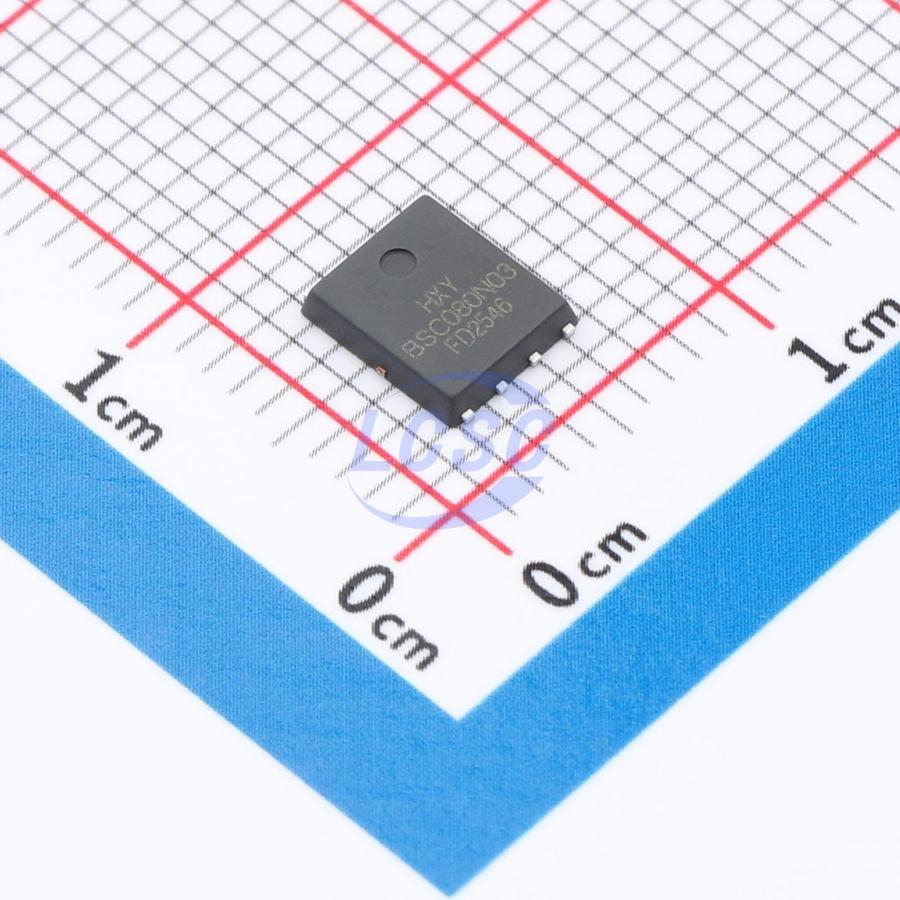

BSC080N03LSGATMA1-HXY
31W 30V 60A 6.5mΩ@10V 1 N-channel N-Channel DFN-8L(5x6) Single FETs, MOSFETs
DFN-8L(5x6)RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- BSC080N03LSGATMA1-HXY
- Store part #
- C53263206
- Package / case
- DFN-8L(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
84 in stock
#C53263206
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹74.11 | ₹74.11 |
| 10+ | ₹58.99 | ₹589.90 |
| 30+ | ₹52.72 | ₹1,581.60 |
| 100+ | ₹44.52 | ₹4,452.00 |
| 500+ | ₹41.05 | ₹20,525.00 |
| 1,000+ | ₹38.90 | ₹38,900.00 |
1 × ₹74.11
₹74.11
excl. GST
₹87.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
BSC080N03LSGATMA1-HXY
₹74.11 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 163pF
- Ciss-Input Capacitance
- 1.317nF
- Pd - Power Dissipation
- 31W
- Operating Temperature
- -55℃~+150℃
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 60A
- Reverse Transfer Capacitance (Crss)
- 131pF
- RDS(on)
- 6.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 17.6nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.139 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STL56N3LLH5-HXY#C53262988HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 97 | ₹78.61 · 97 in stock | View |
 | CSD17302Q5A-HXY#C53262989HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 95 | ₹53.83 · 95 in stock | View |
 | SIRA28BDP-T1-GE3-HXY#C53262994HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 95 | ₹44.04 · 95 in stock | View |
 | CSD17522Q5A-HXY#C53263018HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 98 | ₹96.87 · 98 in stock | View |
 | STL58N3LLH5-HXY#C53263037HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 98 | ₹156.58 · 98 in stock | View |
