MDD(Microdiode Semiconductor)
2N7002KN-Channel 60V 300mA 300mW Surface Mount SOT-23
From
₹2.32
25,99,250 in stock
InfineonDatasheet (PDF)

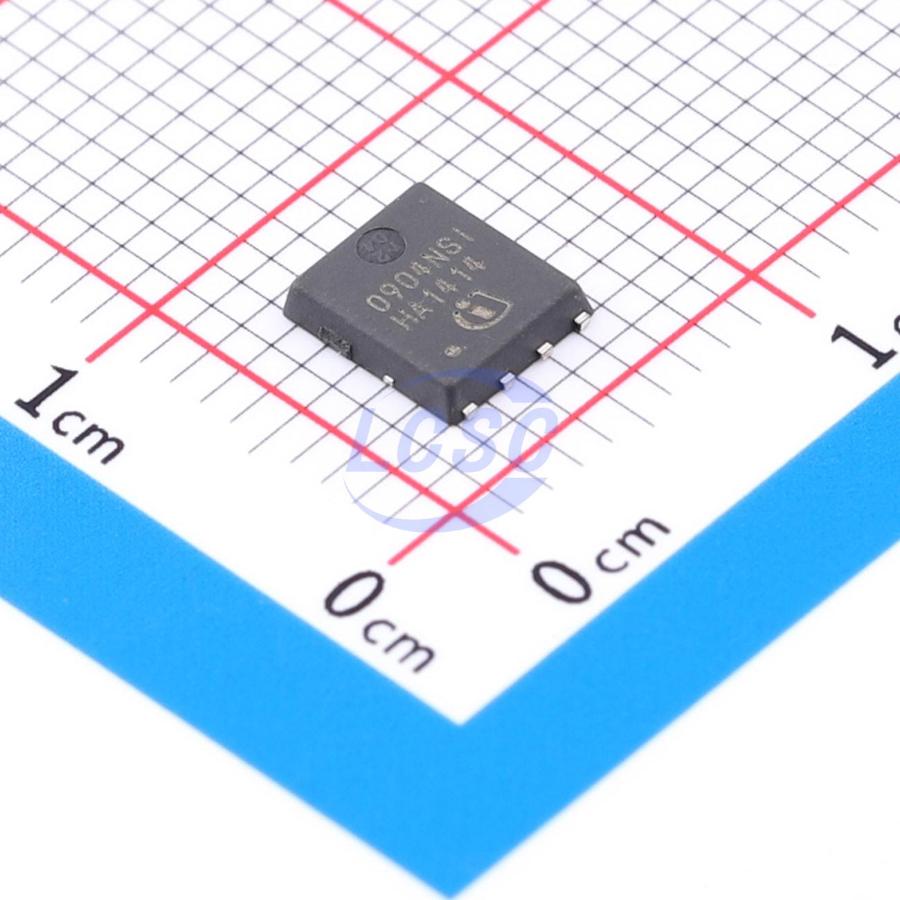

BSC0904NSI
N-Channel 30V 78A 37W Surface Mount TDSON-8(5x6)
TDSON-8(5x6)ROHS3 CompliantActive
MOSFET N-CH 30V 78A TDSON-8(5x6)
- Manufacturer
- Infineon
- Manufacturer part #
- BSC0904NSI
- Store part #
- C534383
- Package / case
- TDSON-8(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
65 in stock
#C534383
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹89.26 | ₹89.26 |
| 10+ | ₹71.42 | ₹714.20 |
| 30+ | ₹62.49 | ₹1,874.70 |
| 100+ | ₹53.56 | ₹5,356.00 |
| 500+ | ₹48.33 | ₹24,165.00 |
| 1,000+ | ₹45.50 | ₹45,500.00 |
1 × ₹89.26
₹89.26
excl. GST
₹105.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
BSC0904NSI
₹89.26 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 460pF
- Ciss-Input Capacitance
- 1.5nF
- Pd - Power Dissipation
- 37W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 78A
- Reverse Transfer Capacitance (Crss)
- 64pF
- RDS(on)
- 3.7mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 17nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.18 g
Overview
Key features
- SyncFET optimized for high-performance buck converters
- Integrated monolithic Schottky-like diode
- Ultra-low RDS(ON) at VGS = 4.5 V
- 100% avalanche tested
- Excellent thermal resistance performance
- N-channel
- JEDEC qualified for target applications
- Lead-free terminal plating; RoHS compliant
- Halogen-free per IEC61249-2-21
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CMSA037N03#C42428220Cmos · DFN-8(5x6) | Cmos | DFN-8(5x6) | 135 | ₹34.44 · 135 in stock | View |
 | AON6354#C404363AOS · DFN-8(5x6) | AOS | DFN-8(5x6) | 3,585 | ₹36.91 · 3,585 in stock | View |
 | PTN3006#C49384076HT(Shenzhen Jinyu Semicon) · PDFN-8L(5x6) | HT(Shenzhen Jinyu Semicon) | PDFN-8L(5x6) | 4,935 | ₹16.86 · 4,935 in stock | View |
 | FH3304GS#C5159044XIN FEI HONG · PDFN5x6-8L | XIN FEI HONG | PDFN5x6-8L | 4,194 | ₹79.64 · 4,194 in stock | View |
 | ASDM30N120Q-R#C2972859ASDsemi · DFN5x6-8 | ASDsemi | DFN5x6-8 | 4,890 | ₹38.39 · 4,890 in stock | View |
