InfineonDatasheet (PDF)

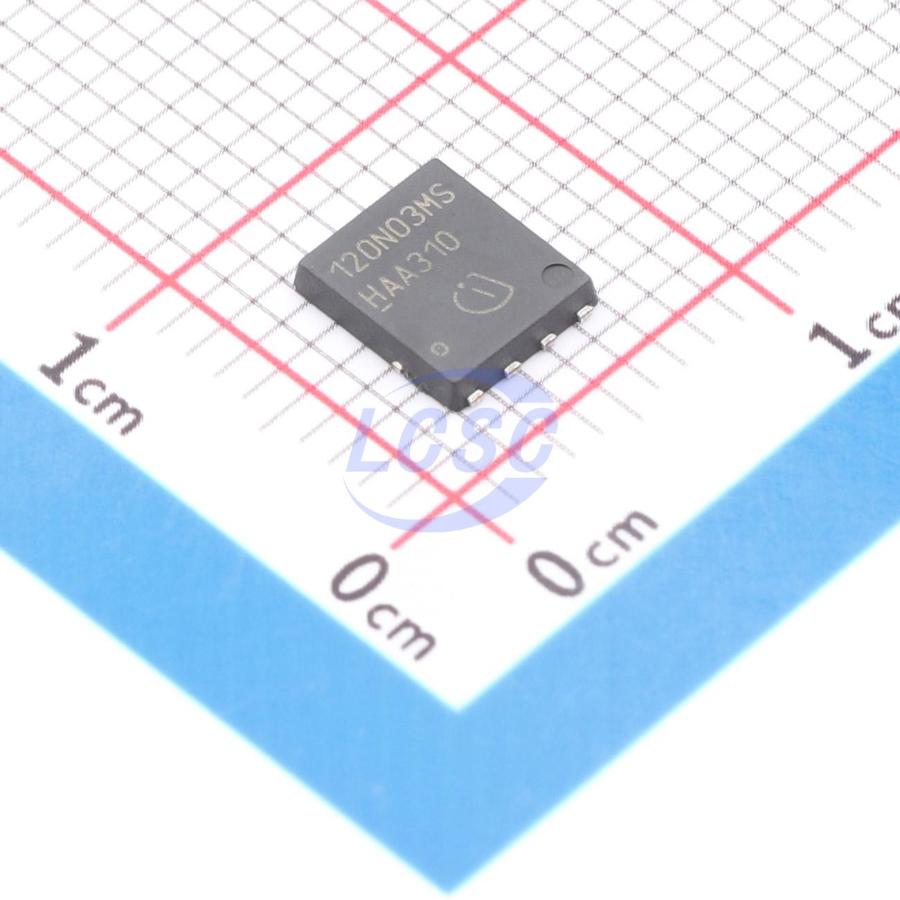

BSC120N03MS G
28W 30V 39A 12mΩ@10V 1 N-channel N-Channel TDSON-8-EP(5x6) Single FETs, MOSFETs RoHS
TDSON-8-EP(5x6)ROHS3 CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- BSC120N03MS G
- Store part #
- C534411
- Package / case
- TDSON-8-EP(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
73 in stock
#C534411
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹84.25 | ₹84.25 |
| 10+ | ₹67.27 | ₹672.70 |
| 30+ | ₹59.01 | ₹1,770.30 |
| 100+ | ₹50.51 | ₹5,051.00 |
| 500+ | ₹45.50 | ₹22,750.00 |
| 1,000+ | ₹42.89 | ₹42,890.00 |
1 × ₹84.25
₹84.25
excl. GST
₹99.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
BSC120N03MS G
₹84.25 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 520pF
- Ciss-Input Capacitance
- 1.5nF
- Pd - Power Dissipation
- 28W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 39A
- Reverse Transfer Capacitance (Crss)
- 24pF
- RDS(on)
- 12mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 10nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.171 g
Overview
Key features
- Optimized for 5V driver applications (notebooks, VGA, point-of-load power supplies)
- Low switching figure of merit for high-frequency switching power supplies
- 100% avalanche tested
- N-channel
- Ultra-low on-resistance RDS(on) at VGS = 4.5V
- Excellent gate charge × RDS(on) product (figure of merit)
- JEDEC-compliant for target applications
- Superior thermal resistance performance
- Lead-free plating; RoHS compliant
- Halogen-free per IEC61249-2-21
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BSC120N03LS G#C534410Infineon · TDSON-8(5x6) | Infineon | TDSON-8(5x6) | 1 | ₹111.58 · 1 in stock | View |
| NTMFS4C028NT1G#C604424onsemi · SO-8-FL-5.8mm | onsemi | SO-8-FL-5.8mm | 10 | ₹147.67 · 10 in stock | View | |
 | BSC052N03LS#C534349Infineon · TDSON-8(5x6) | Infineon | TDSON-8(5x6) | 9,909 | ₹59.23 · 9,909 in stock | View |
 | NVMFS5C460NLAFT1G#C604601onsemi · SO-8FL | onsemi | SO-8FL | On request | ₹196.24 · 0 in stock | View |
 | HYG180N10LS1C2#C5121300HUAYI · PDFN-8(5x6) | HUAYI | PDFN-8(5x6) | 5,685 | ₹37.72 · 5,685 in stock | View |
