InfineonDatasheet (PDF)

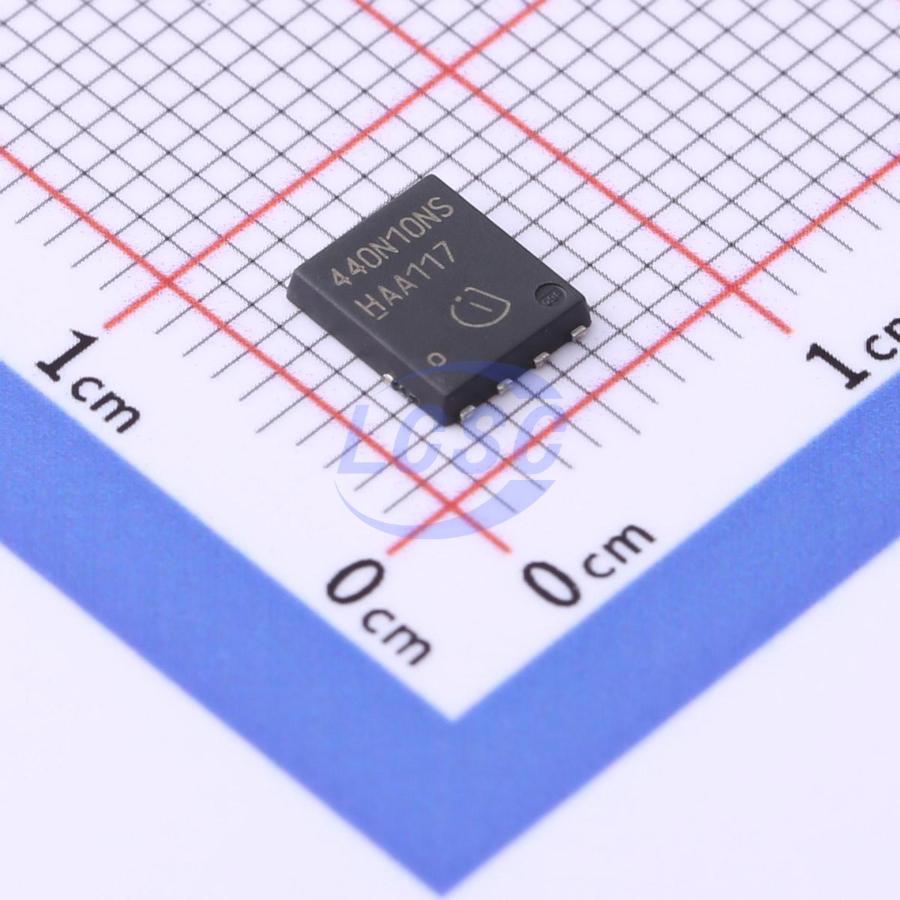

BSC440N10NS3 G
29W 100V 18A 44mΩ@10V 1 N-channel N-Channel TDSON-8-EP(5x6) Single FETs, MOSFETs RoHS
TDSON-8-EP(5x6)ROHS3 CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- BSC440N10NS3 G
- Store part #
- C534432
- Package / case
- TDSON-8-EP(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
52 in stock
#C534432
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹158.72 | ₹158.72 |
| 10+ | ₹132.26 | ₹1,322.60 |
| 30+ | ₹119.04 | ₹3,571.20 |
| 100+ | ₹105.81 | ₹10,581.00 |
| 500+ | ₹85.86 | ₹42,930.00 |
| 1,000+ | ₹81.96 | ₹81,960.00 |
1 × ₹158.72
₹158.72
excl. GST
₹187.29 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
BSC440N10NS3 G
₹158.72 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 120pF
- Ciss-Input Capacitance
- 610pF
- Pd - Power Dissipation
- 29W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 18A
- Reverse Transfer Capacitance (Crss)
- 6pF
- RDS(on)
- 44mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 8.1nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.7V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.22 g
Overview
Key features
- Ultra-low gate charge for high-frequency applications
- Optimized for DC-DC conversion
- N-channel, normally-on
- Excellent gate charge × RDS(on) figure of merit (FOM)
- Ultra-low on-resistance RDS(on)
- Operating temperature up to 150°C
- Lead-free terminal plating; RoHS compliant
- Qualified per JEDEC standards for target applications
- Halogen-free per IEC61249-2-21
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMTH10H032LPDW-13#C19950003DIODES · PowerDI5060-8(TYPEUxD) | DIODES | PowerDI5060-8(TYPEUxD) | 146 | ₹474.80 · 146 in stock | View |
 | SISH892BDN-T1-GE3#C3279574VISHAY · PowerPAK-SO-8DC | VISHAY | PowerPAK-SO-8DC | 168 | ₹132.78 · 168 in stock | View |
 | FDMS2734-VB#C53154530VBsemi Elec · PDFN-8L(5x6) | VBsemi Elec | PDFN-8L(5x6) | 5 | ₹186.91 · 5 in stock | View |
 | IRFH5025TRPBF-VB#C53154591VBsemi Elec · PDFN-8L(5x6) | VBsemi Elec | PDFN-8L(5x6) | 16 | ₹187.63 · 16 in stock | View |
 | HAT2193WP-VB#C53154595VBsemi Elec · PDFN-8L(5x6) | VBsemi Elec | PDFN-8L(5x6) | 5 | ₹293.02 · 5 in stock | View |
