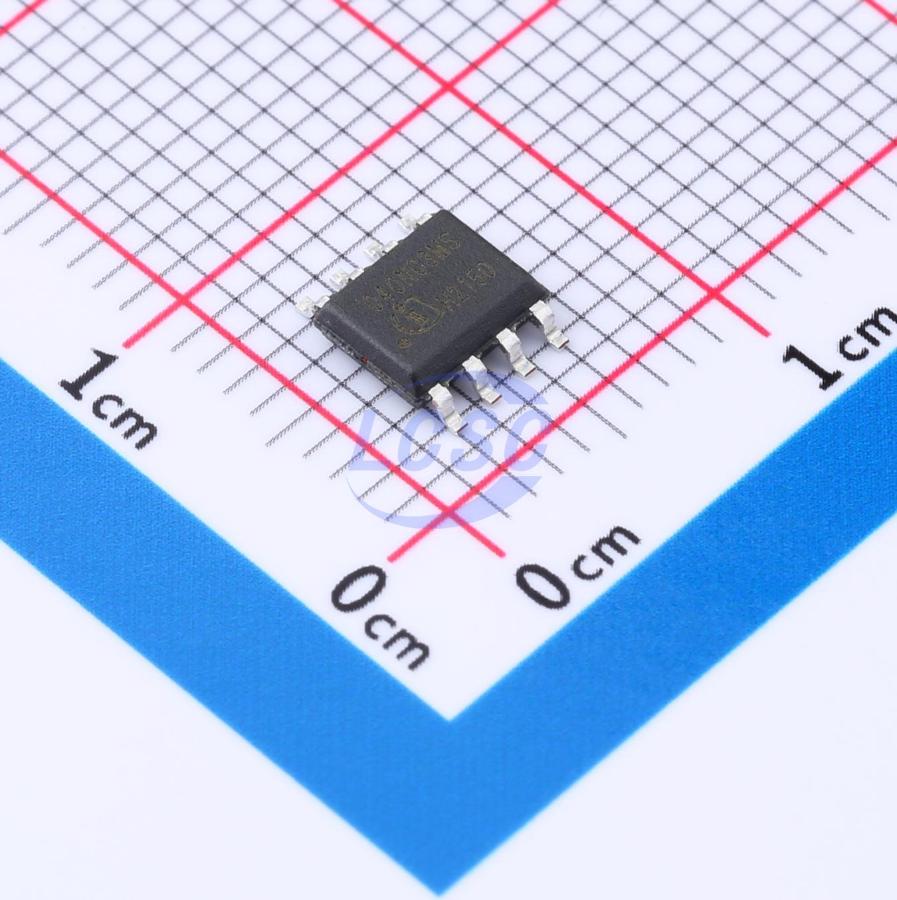

BSO040N03MS G
N-Channel 30V Surface Mount DSO-8
DSO-8ROHS3 CompliantActive
MOSFET N-CH 30V DSO-8
- Manufacturer
- Infineon
- Manufacturer part #
- BSO040N03MS G
- Store part #
- C534531
- Package / case
- DSO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C534531
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹436.46 | ₹436.46 |
| 10+ | ₹376.42 | ₹3,764.20 |
| 30+ | ₹340.77 | ₹10,223.10 |
| 100+ | ₹304.70 | ₹30,470.00 |
| 500+ | ₹288.11 | ₹1,44,055.00 |
| 1,000+ | ₹280.52 | ₹2,80,520.00 |
1 × ₹436.46
₹436.46
excl. GST
₹515.02 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BSO040N03MS G
₹436.46 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 1.2nF
- Current - Continuous Drain(Id)
- 20A
- Ciss-Input Capacitance
- 4.3nF
- Pd - Power Dissipation
- 1.56W
- Reverse Transfer Capacitance (Crss)
- 88pF
- RDS(on)
- 3.3mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 55nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.12 g
Overview
Key features
- Optimized for 5V driver application (Notebook, VGA, POL)
- Low FOM_SW for High Frequency SMPS
- 100% Avalanche tested
- N-channel
- Very low on-resistance R_DS(on) @ V_GS = 4.5V
- Excellent gate charge × R_DS(on) product (FOM)
- Qualified for consumer level application
- Pb-free plating; RoHS compliant
- Halogen-free according to IEC61249-2-21
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SI4630DY-T1-E3-VB#C7569124VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 92 | ₹108.38 · 92 in stock | View |
 | SI4336DY-T1-E3-VB#C20417683VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 35 | ₹130.41 · 35 in stock | View |
 | HM4354-VB#C29778818VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 20 | ₹102.93 · 20 in stock | View |
 | IRF7832TRPBF#C3002Infineon · SO-8 | Infineon | SO-8 | 6,347 | ₹86.78 · 6,347 in stock | View |
| SQJA80EP-T1_GE3#C2802567VISHAY · SO-8 | VISHAY | SO-8 | 2 | ₹129.73 · 2 in stock | View | |
