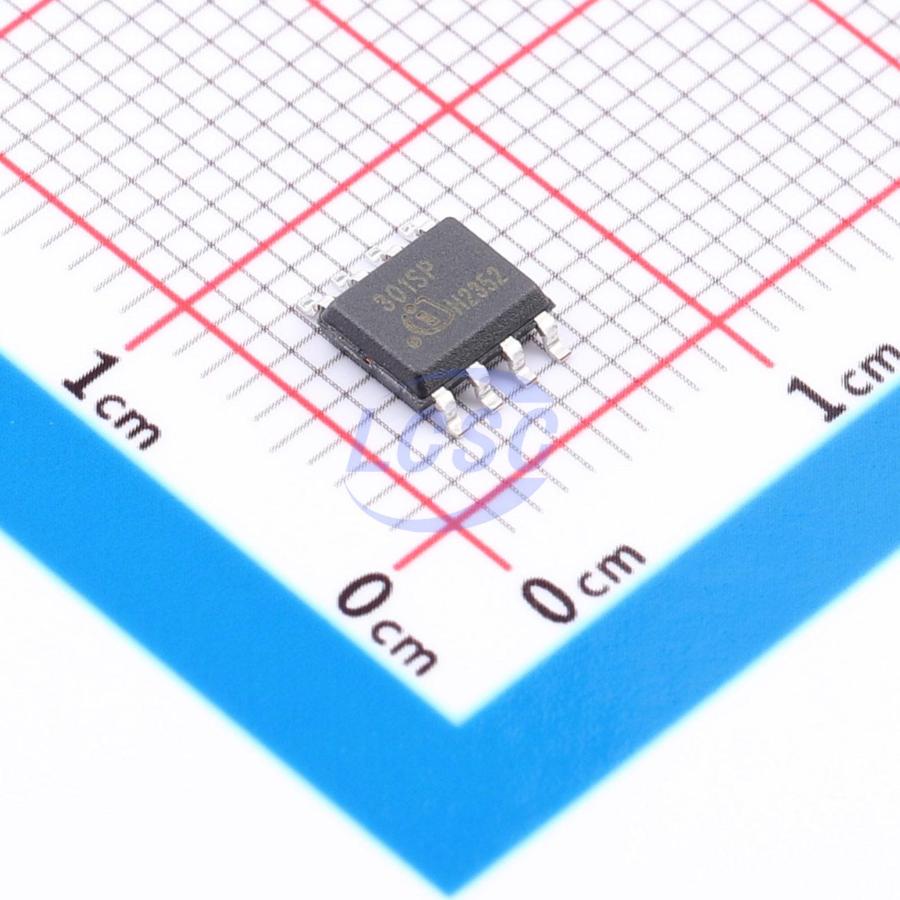

BSO301SP H
2.5W 30V 14.9A 8mΩ@10V 1 P-Channel P-Channel DSO-8 Single FETs, MOSFETs RoHS
DSO-8ROHS3 CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- BSO301SP H
- Store part #
- C534541
- Package / case
- DSO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C534541
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹338.89 | ₹338.89 |
| 10+ | ₹296.39 | ₹2,963.90 |
| 30+ | ₹269.72 | ₹8,091.60 |
| 100+ | ₹242.40 | ₹24,240.00 |
| 500+ | ₹230.04 | ₹1,15,020.00 |
| 1,000+ | ₹224.84 | ₹2,24,840.00 |
1 × ₹338.89
₹338.89
excl. GST
₹399.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BSO301SP H
₹338.89 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.18nF
- Ciss-Input Capacitance
- 5.89nF
- Pd - Power Dissipation
- 2.5W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 14.9A
- Reverse Transfer Capacitance (Crss)
- 1.5nF
- RDS(on)
- 8mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 102nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.97 g
Overview
Key features
- P-channel
- Enhancement-mode
- Logic level
- Operating temperature up to 150°C
- Avalanche rated
- JEDEC compliant for target applications
- Lead-free terminal plating; RoHS compliant
- Halogen-free per IEC61249-2-21
