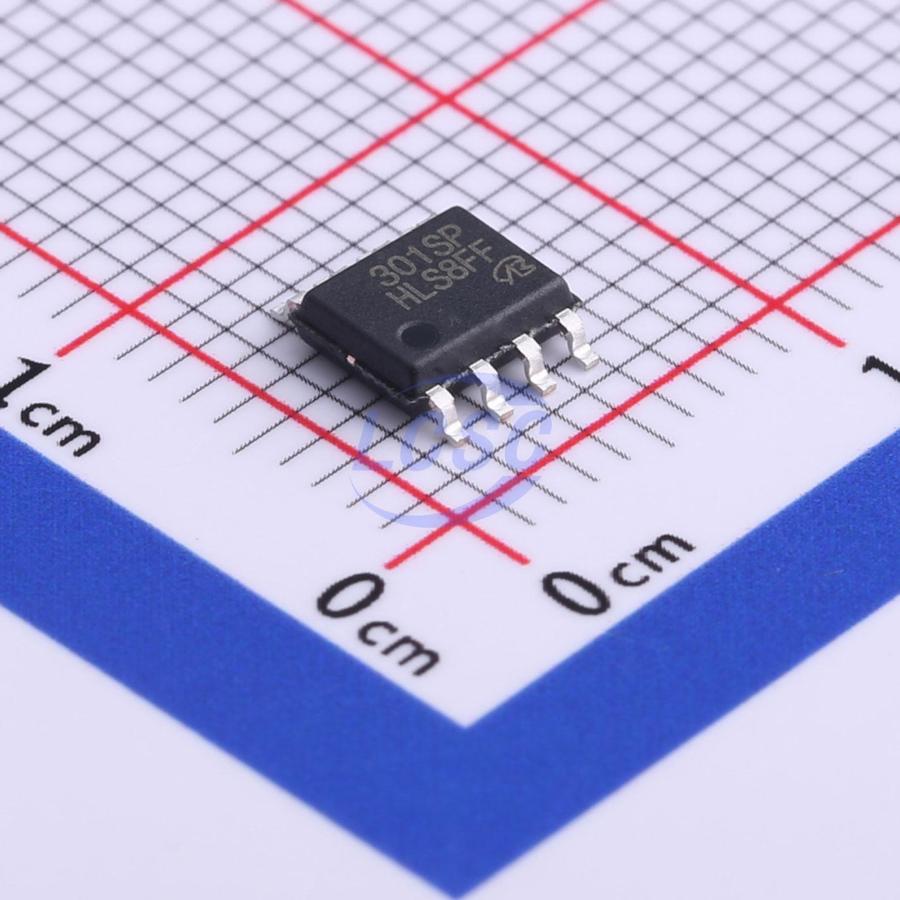

BSO301SP-VB
P-Channel 30V 13.5A 2.7W Surface Mount SO-8
SO-8RoHSActive
MOSFET P-CH 30V 13.5A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- BSO301SP-VB
- Store part #
- C693388
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
27 in stock
#C693388
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹76.50 | ₹76.50 |
| 10+ | ₹60.42 | ₹604.20 |
| 30+ | ₹53.46 | ₹1,603.80 |
| 100+ | ₹44.77 | ₹4,477.00 |
| 500+ | ₹39.56 | ₹19,780.00 |
| 1,000+ | ₹37.39 | ₹37,390.00 |
1 × ₹76.50
₹76.50
excl. GST
₹90.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
BSO301SP-VB
₹76.50 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 455pF
- Current - Continuous Drain(Id)
- 13.5A
- Ciss-Input Capacitance
- 2.55nF
- Pd - Power Dissipation
- 2.7W
- Reverse Transfer Capacitance (Crss)
- 390pF
- RDS(on)
- 11mΩ@10V;15mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 57nC@10V;29.5nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1.4V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.226 g
Overview
Applications
- Load Switch
- Notebook Adapter Switch
Key features
- Halogen-free
- Trench power MOSFET
- 100% gate resistance (Rg) tested
- 100% unclamped inductive switching (UIS) tested
- RoHS compliant
