VBsemi ElecDatasheet (PDF)

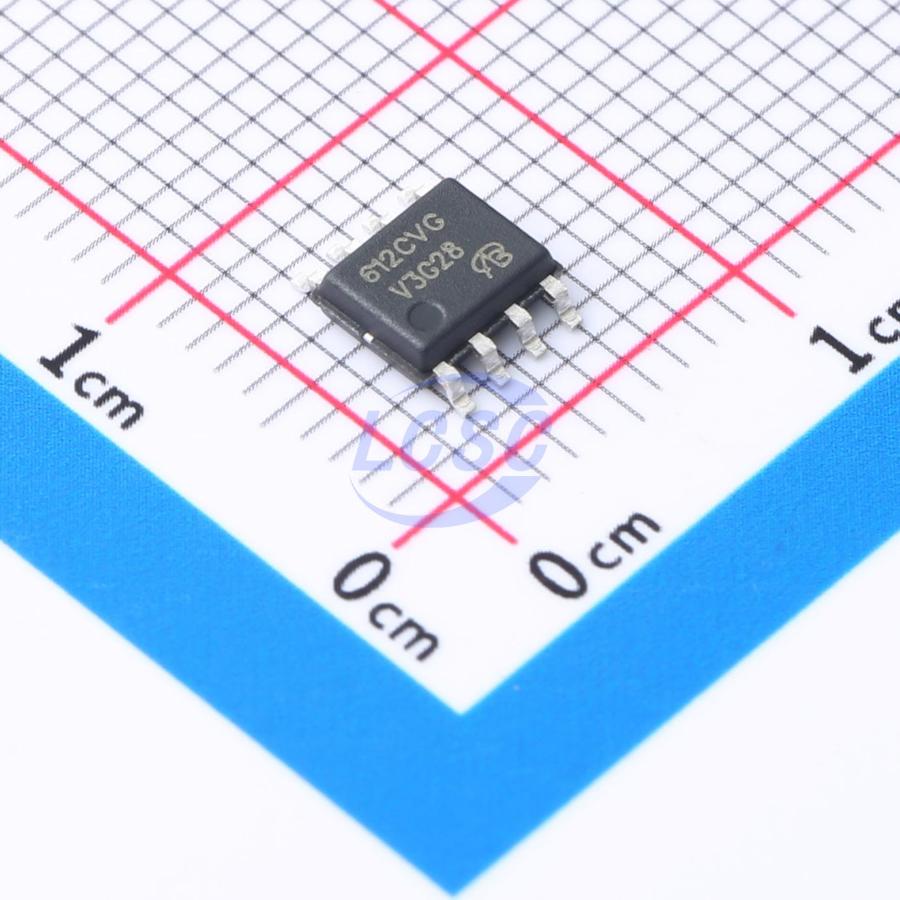

BSO612CVG-VB
N-Channel+P-Channel 60V 5.3A 3.1W Surface Mount SO-8
SO-8RoHSActive
MOSFET N-CH+P-CH ARR 60V 5.3A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- BSO612CVG-VB
- Store part #
- C19632049
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
38 in stock
#C19632049
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹85.92 | ₹85.92 |
| 10+ | ₹69.75 | ₹697.50 |
| 30+ | ₹61.76 | ₹1,852.80 |
| 100+ | ₹53.78 | ₹5,378.00 |
| 500+ | ₹48.95 | ₹24,475.00 |
| 1,000+ | ₹46.64 | ₹46,640.00 |
1 × ₹85.92
₹85.92
excl. GST
₹101.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
BSO612CVG-VB
₹85.92 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 75pF;95pF
- Current - Continuous Drain(Id)
- 5.3A;4.9A
- Ciss-Input Capacitance
- 665pF;650pF
- Pd - Power Dissipation
- 3.1W;2.4W
- Reverse Transfer Capacitance (Crss)
- 40pF;60pF
- RDS(on)
- 26mΩ@10V;55mΩ@10V
- Number
- 1 N-Channel + 1 P-Channel
- Gate Charge(Qg)
- 6nC@10V;8nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel + P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.1 g
Overview
The AO3416A utilizes advanced trench technology to deliver excellent RDS(ON), low gate charge, and operation down to 2.5V gate voltage. This device is suitable for battery protection or other switching applications.
Applications
- Cold cathode fluorescent lamp (CCFL) inverter
- N-channel MOSFET
- P-channel MOSFET
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- 100% Rg and UIS tested
- RoHS compliant
- Halogen-free available
