InfineonDatasheet (PDF)

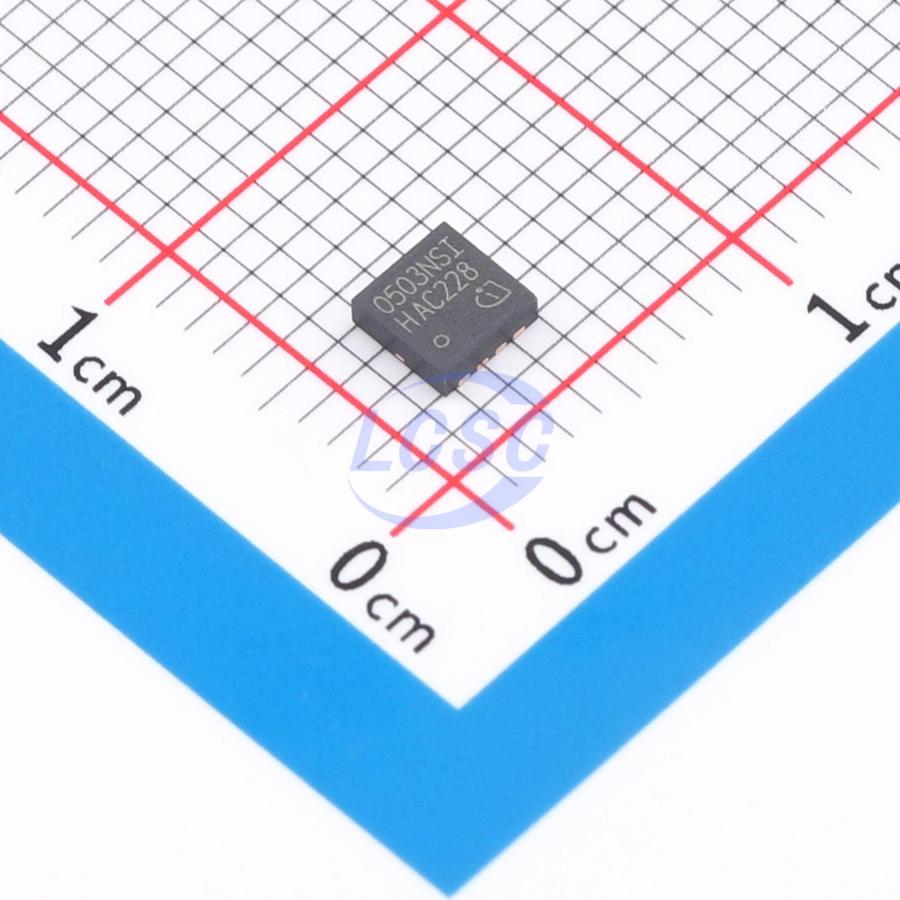

BSZ0503NSI
30V 82A 36W 2.8mΩ@10V 1 N-channel TSDSON-8-EP(3.3x3.3) Single FETs, MOSFETs
TSDSON-8-EP(3.3x3.3)RoHSActive
- Manufacturer
- Infineon
- Manufacturer part #
- BSZ0503NSI
- Store part #
- C534664
- Package / case
- TSDSON-8-EP(3.3x3.3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C534664
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹199.47 | ₹199.47 |
| 10+ | ₹171.10 | ₹1,711.00 |
| 30+ | ₹155.41 | ₹4,662.30 |
| 100+ | ₹137.78 | ₹13,778.00 |
| 500+ | ₹129.83 | ₹64,915.00 |
| 1,000+ | ₹126.39 | ₹1,26,390.00 |
1 × ₹199.47
₹199.47
excl. GST
₹235.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
BSZ0503NSI
₹199.47 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 82A
- Ciss-Input Capacitance
- 960pF
- Pd - Power Dissipation
- 36W
- Reverse Transfer Capacitance (Crss)
- 36pF
- RDS(on)
- 2.8mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 7.1nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.44 g
Overview
Key features
- Optimized for high performance buck converters
- Monolithic integrated Schottky-like diode
- Very low on-resistance RDS(on) ×V₀₅ = 4.5
- 100% avalanche tested
- N-channel
- Qualified according to JEDEC for target applications
- Pb-free lead plating; RoHS compliant
- Halogen-free according to IEC61249-2-21
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NTTFS2D1N04HLTWG#C894100onsemi · PQFN-8(3.3x3.3) | onsemi | PQFN-8(3.3x3.3) | 1 | ₹500.76 · 1 in stock | View |
 | GBS032R4PMBR#C28324647GOSEMICON · PDFN3.3x3.3-8 | GOSEMICON | PDFN3.3x3.3-8 | 19 | ₹50.96 · 19 in stock | View |
 | AGM4025AP#C42411651AGMSEMI · PDFN-8(3.3x3.3) | AGMSEMI | PDFN-8(3.3x3.3) | 3,820 | ₹27.11 · 3,820 in stock | View |
 | AGM303AP#C5349136AGMSEMI · PDFN-8(3.3x3.3) | AGMSEMI | PDFN-8(3.3x3.3) | 60 | ₹34.40 · 60 in stock | View |
 | PTQ3006#C49384061HT(Shenzhen Jinyu Semicon) · PDFN-8(3.3x3.3) | HT(Shenzhen Jinyu Semicon) | PDFN-8(3.3x3.3) | 4,965 | ₹16.05 · 4,965 in stock | View |
