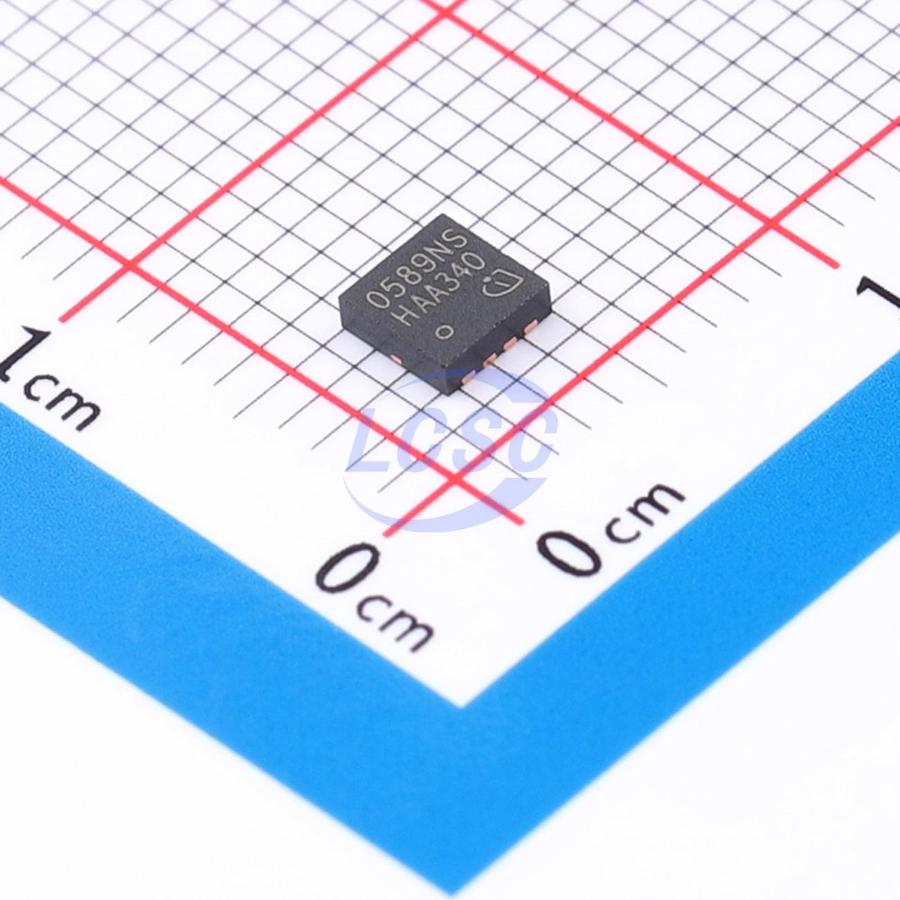

InfineonDatasheet (PDF)
BSZ0589NS
2.1W 30V 17A 4.4mΩ@4.5V 1 N-channel N-Channel TSDSON-8(3.3x3.3) Single FETs, MOSFETs RoHS
TSDSON-8(3.3x3.3)ROHS3 CompliantActive
MOSFET N-CH 30V 17A TSDSON-8(3.3x3.3)
- Manufacturer
- Infineon
- Manufacturer part #
- BSZ0589NS
- Store part #
- C534668
- Package / case
- TSDSON-8(3.3x3.3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
66 in stock
#C534668
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹123.22 | ₹123.22 |
| 10+ | ₹98.62 | ₹986.20 |
| 30+ | ₹86.21 | ₹2,586.30 |
| 100+ | ₹74.02 | ₹7,402.00 |
| 500+ | ₹66.63 | ₹33,315.00 |
| 1,000+ | ₹62.92 | ₹62,920.00 |
1 × ₹123.22
₹123.22
excl. GST
₹145.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
BSZ0589NS
₹123.22 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 220pF
- Ciss-Input Capacitance
- 950pF
- Pd - Power Dissipation
- 2.1W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 17A
- Reverse Transfer Capacitance (Crss)
- 16pF
- RDS(on)
- 4.4mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 5.2nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.6V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.194 g
Overview
Key features
- Optimized for high-performance wireless chargers
- Suitable for high-frequency SMPS with ultra-low FOM<sub>QOSS</sub>
- Suitable for high-frequency SMPS with low FOM<sub>sw</sub>
- Excellent gate charge × R<sub>DS(on)</sub> figure of merit (FOM)
- Ultra-low R<sub>DS(on)</sub> at V<sub>GS</sub> = 4.5 V
- 100% avalanche tested
- Superior thermal resistance performance
- N-channel
- JEDEC qualified for target applications
- Lead-free plated leads; RoHS compliant
- Halogen-free per IEC61249-2-21
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| WSD3028DN33#C148384Winsok Semicon · DFN-8(3.3x3.3) | Winsok Semicon | DFN-8(3.3x3.3) | 310 | ₹23.92 · 310 in stock | View | |
 | FH1504G6#C5453908XIN FEI HONG · PDFN3.3x3.3-8L | XIN FEI HONG | PDFN3.3x3.3-8L | 3,280 | ₹19.67 · 3,280 in stock | View |
 | RQ3E180AJTB#C5443915ROHM · HSMT-8(3x3.2) | ROHM | HSMT-8(3x3.2) | 3,080 | ₹46.86 · 3,080 in stock | View |
 | AGM404AP1#C41349455AGMSEMI · PDFN-8(3.3x3.3) | AGMSEMI | PDFN-8(3.3x3.3) | 475 | ₹24.89 · 475 in stock | View |
 | AGM405AP2#C5447833AGMSEMI · PDFN-8(3.3x3.3) | AGMSEMI | PDFN-8(3.3x3.3) | 10 | ₹25.51 · 10 in stock | View |
