HXY MOSFETDatasheet (PDF)

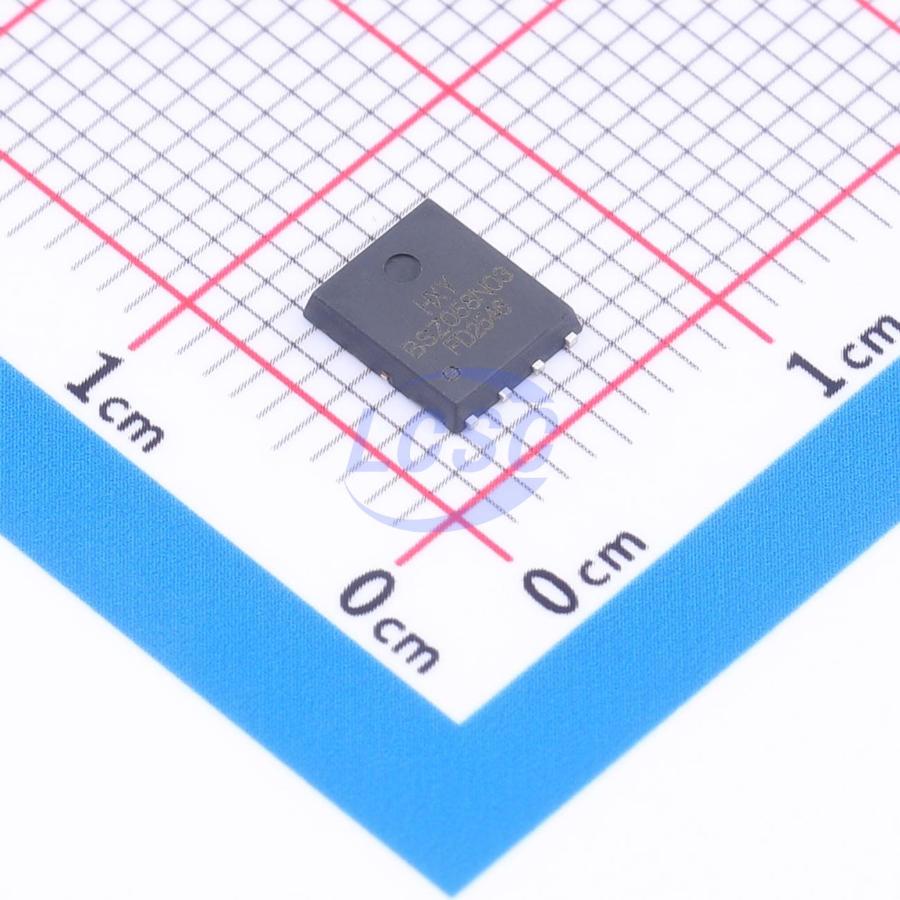

BSZ058N03MSGATMA1-HXY
30W 30V 60A 4.4mΩ@10V 1 N-channel N-Channel DFN-8L(5x6) Single FETs, MOSFETs
DFN-8L(5x6)RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- BSZ058N03MSGATMA1-HXY
- Store part #
- C53263080
- Package / case
- DFN-8L(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
99 in stock
#C53263080
Stock & price checked 35 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹79.47 | ₹79.47 |
| 10+ | ₹63.80 | ₹638.00 |
| 30+ | ₹56.92 | ₹1,707.60 |
| 100+ | ₹48.54 | ₹4,854.00 |
| 500+ | ₹44.68 | ₹22,340.00 |
| 1,000+ | ₹42.53 | ₹42,530.00 |
1 × ₹79.47
₹79.47
excl. GST
₹93.77 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
BSZ058N03MSGATMA1-HXY
₹79.47 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 498pF
- Ciss-Input Capacitance
- 814pF
- Pd - Power Dissipation
- 30W
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 60A
- Reverse Transfer Capacitance (Crss)
- 41pF
- RDS(on)
- 4.4mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 8nC@4.5V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.14 g
