InfineonDatasheet (PDF)

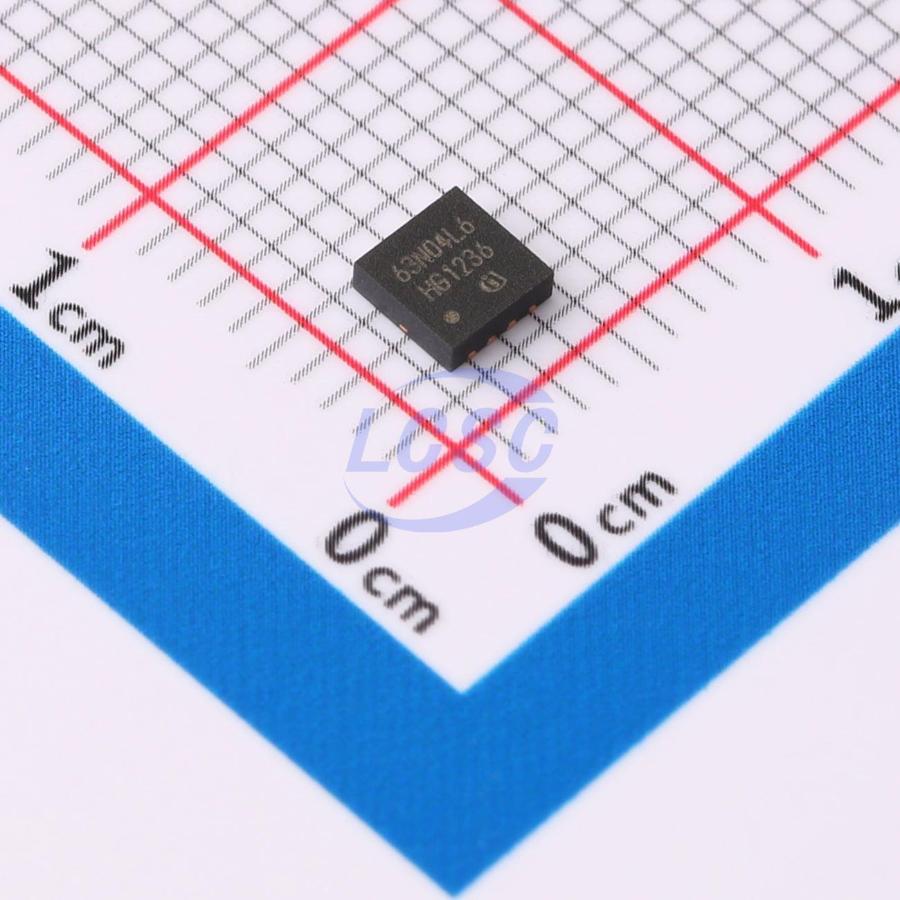

BSZ063N04LS6ATMA1
40V 57A 38W 6.3mΩ@10V 1 N-channel N-Channel TSDSON-8 Single FETs, MOSFETs RoHS
TSDSON-8ROHS3 CompliantActive
MOSFET N-CH 40V 57A TSDSON-8
- Manufacturer
- Infineon
- Manufacturer part #
- BSZ063N04LS6ATMA1
- Store part #
- C3279302
- Package / case
- TSDSON-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
173 in stock
#C3279302
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹269.68 | ₹269.68 |
| 10+ | ₹229.57 | ₹2,295.70 |
| 30+ | ₹204.50 | ₹6,135.00 |
| 100+ | ₹178.76 | ₹17,876.00 |
| 500+ | ₹167.21 | ₹83,605.00 |
| 1,000+ | ₹162.20 | ₹1,62,200.00 |
1 × ₹269.68
₹269.68
excl. GST
₹318.22 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
BSZ063N04LS6ATMA1
₹269.68 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 210pF
- Current - Continuous Drain(Id)
- 57A
- Ciss-Input Capacitance
- 650pF
- Pd - Power Dissipation
- 38W
- Reverse Transfer Capacitance (Crss)
- 12pF
- RDS(on)
- 6.3mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 9.5nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.11 g
Overview
Key features
- Optimized for synchronous applications
- Ultra-low on-resistance RDS(ON)
- 100% avalanche tested
- Excellent thermal resistance performance
- N-channel
- JEDEC qualified for target applications
- Lead-free terminal plating; RoHS compliant
- Halogen-free per IEC61249-2-21
- 175°C rated temperature
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BSC059N04LS6#C534356Infineon · TDSON-8FL | Infineon | TDSON-8FL | 3,688 | ₹96.14 · 3,688 in stock | View |
 | IAUC60N04S6L039ATMA1#C3288835Infineon · TDSON-8 | Infineon | TDSON-8 | 14 | ₹105.76 · 14 in stock | View |
 | NTMFSC006N12MC#C5208918onsemi · DFN-8 | onsemi | DFN-8 | 34 | ₹338.03 · 34 in stock | View |
| IAUCN04S7L053DATMA1#C32162449Infineon · PG-TDSON-8-61 | Infineon | PG-TDSON-8-61 | 85 | ₹273.19 · 85 in stock | View | |
 | ISC0703NLSATMA1#C3288827Infineon · TDSON-8 | Infineon | TDSON-8 | 14 | ₹195.61 · 14 in stock | View |
