HXY MOSFETDatasheet (PDF)

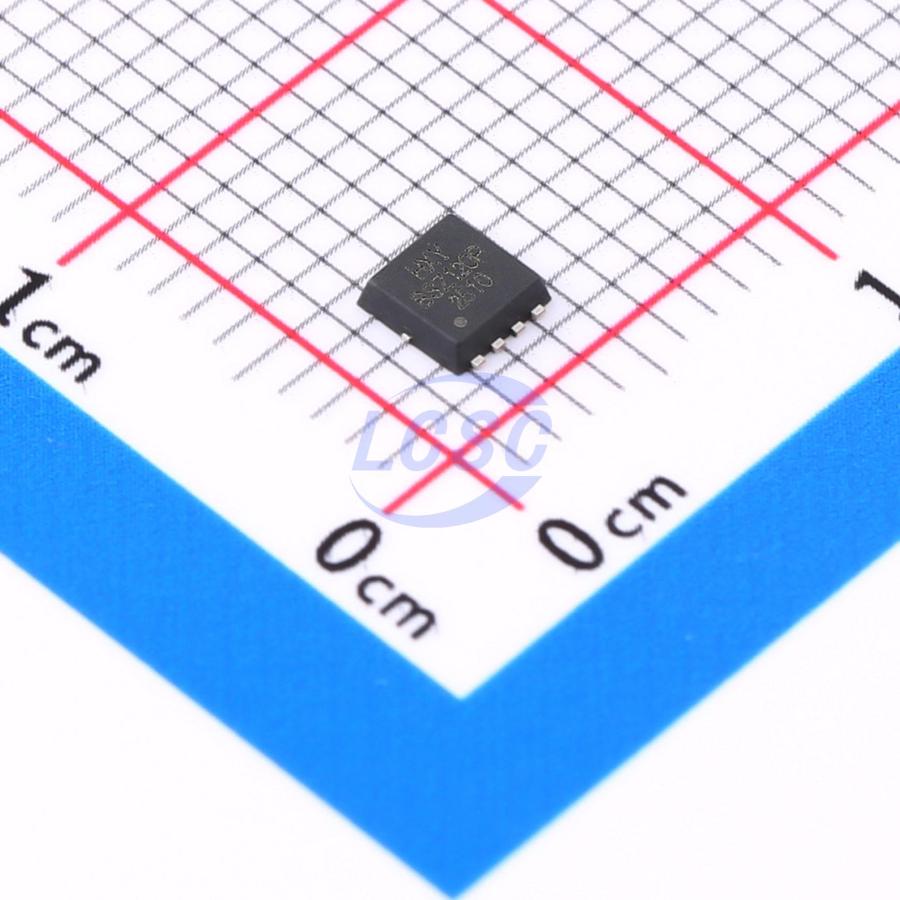

BSZ120P03NS3GATMA1-HXY
30V 35A 15W Surface Mount DFN3x3-8L
DFN3x3-8LROHS CompliantActive
MOSFET 30V 35A DFN3x3-8L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- BSZ120P03NS3GATMA1-HXY
- Store part #
- C48972154
- Package / case
- DFN3x3-8L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
180 in stock
#C48972154
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹50.49 | ₹252.45 |
| 50+ | ₹39.65 | ₹1,982.50 |
| 150+ | ₹34.99 | ₹5,248.50 |
| 500+ | ₹29.20 | ₹14,600.00 |
| 2,500+ | ₹26.62 | ₹66,550.00 |
| 5,000+ | ₹25.07 | ₹1,25,350.00 |
5 × ₹50.49
₹252.45
excl. GST
₹297.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
BSZ120P03NS3GATMA1-HXY
₹252.45 for 5 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 183pF
- Current - Continuous Drain(Id)
- 40A
- Ciss-Input Capacitance
- 1.33nF
- Pd - Power Dissipation
- 15W
- Reverse Transfer Capacitance (Crss)
- 156pF
- RDS(on)
- 12mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 22nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.6V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.071 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRFHM9331TRPBF-HXY#C20606280HXY MOSFET · DFN3x3-8L | HXY MOSFET | DFN3x3-8L | 8 | ₹72.63 · 8 in stock | View |
 | AON7403-HXY#C22367078HXY MOSFET · DFN-8(3x3) | HXY MOSFET | DFN-8(3x3) | 470 | ₹31.29 · 470 in stock | View |
 | DMP3008SFG-HXY#C22367079HXY MOSFET · DFN3x3-8L | HXY MOSFET | DFN3x3-8L | 20 | ₹26.76 · 20 in stock | View |
 | SI7423DN-T1-E3-HXY#C22367082HXY MOSFET · DFN3x3-8L | HXY MOSFET | DFN3x3-8L | 70 | ₹69.06 · 70 in stock | View |
 | MDV3605URH-HXY#C22367084HXY MOSFET · DFN3x3-8L | HXY MOSFET | DFN3x3-8L | 210 | ₹43.50 · 210 in stock | View |
