MDD(Microdiode Semiconductor)
2N7002KN-Channel 60V 300mA 300mW Surface Mount SOT-23
From
₹2.32
25,99,250 in stock
InfineonDatasheet (PDF)

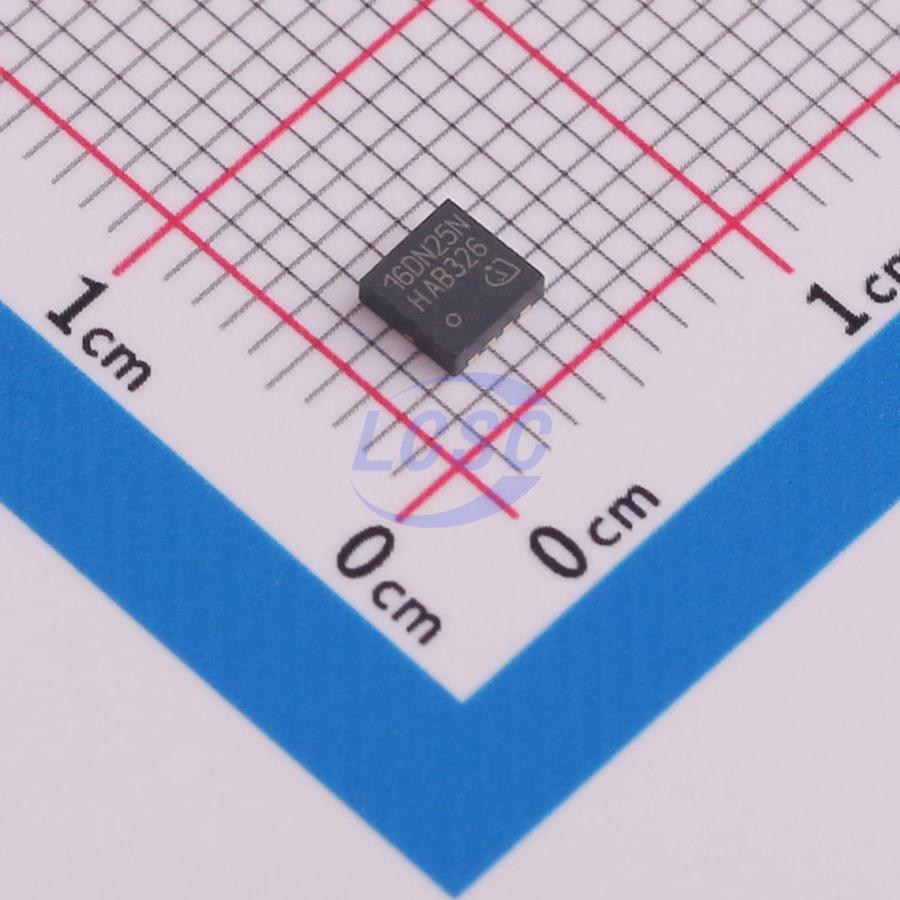

BSZ16DN25NS3GATMA1
N-Channel 250V 10.9A 62.5W Surface Mount TSDSON-8FL
TSDSON-8FLROHS3 CompliantActive
MOSFET N-CH 250V 10.9A TSDSON-8FL
- Manufacturer
- Infineon
- Manufacturer part #
- BSZ16DN25NS3GATMA1
- Store part #
- C6135714
- Package / case
- TSDSON-8FL
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C6135714
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹241.65 | ₹241.65 |
| 10+ | ₹203.54 | ₹2,035.40 |
| 30+ | ₹179.60 | ₹5,388.00 |
| 100+ | ₹155.23 | ₹15,523.00 |
| 500+ | ₹144.11 | ₹72,055.00 |
| 1,000+ | ₹139.33 | ₹1,39,330.00 |
1 × ₹241.65
₹241.65
excl. GST
₹285.15 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
BSZ16DN25NS3GATMA1
₹241.65 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 44pF
- Ciss-Input Capacitance
- 920pF
- Pd - Power Dissipation
- 62.5W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 250V
- Current - Continuous Drain(Id)
- 10.9A
- Reverse Transfer Capacitance (Crss)
- 5.2pF
- RDS(on)
- 165mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 11.4nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.282 g
Overview
Applications
- Solar inverters - EV battery chargers - High-voltage DC/DC converters - Switch-mode power supplies
Key features
- Optimized for DC-DC conversion
- N-channel, normally-on
- Excellent gate charge × RDS(on) figure of merit (FOM)
- Low on-resistance RDS(on)
- Operating temperature up to 150°C
- Lead-free terminal plating; RoHS compliant
- Qualified to JEDEC standards for target applications
- Halogen-free per IEC61249-2-21
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| STL19N60M2#C2971050ST · VDFN-8 | ST | VDFN-8 | 14 | ₹343.27 · 14 in stock | View | |
| STL24N60M2#C2970349ST · VDFN-8-Power | ST | VDFN-8-Power | 27 | ₹739.49 · 27 in stock | View | |
 | STL33N60M2#C2971681ST · VDFN-8-Power | ST | VDFN-8-Power | 4 | ₹629.77 · 4 in stock | View |
 | SIHH240N60E-T1-GE3#C3009573VISHAY · TDFN-8 | VISHAY | TDFN-8 | 19 | ₹491.28 · 19 in stock | View |
 | BSC600N25NS3G#C3288852Infineon · TDSON-8 | Infineon | TDSON-8 | 730 | ₹284.91 · 730 in stock | View |
