InfineonDatasheet (PDF)

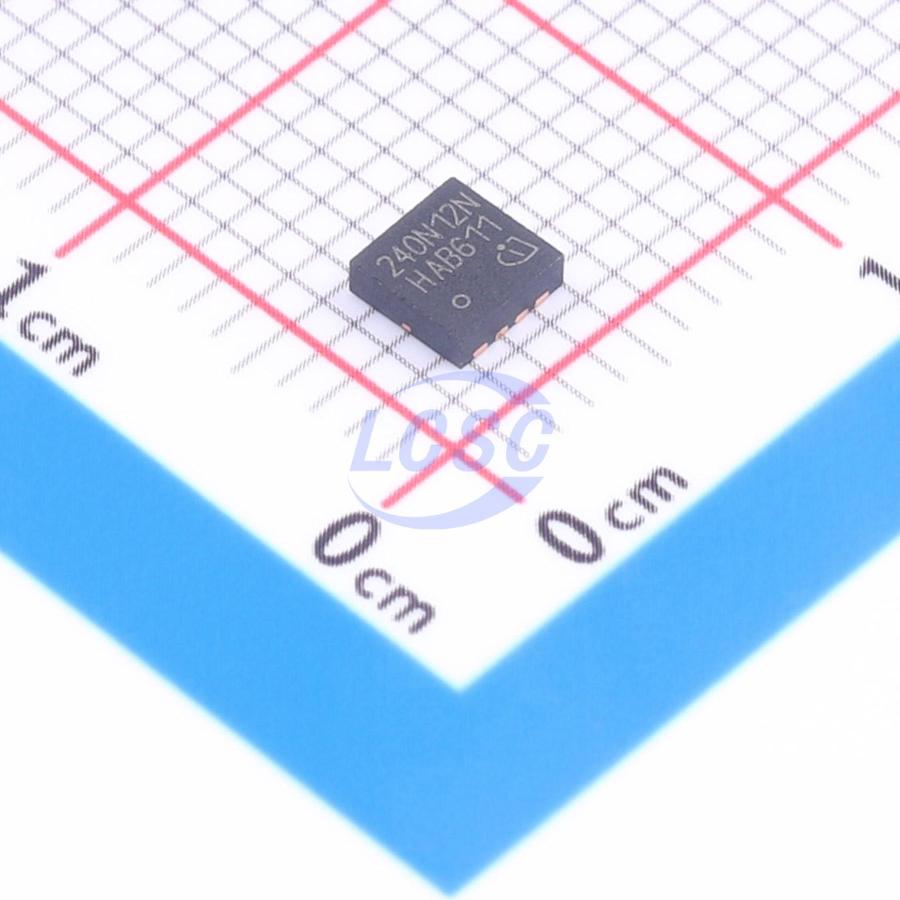

BSZ240N12NS3 G
66W 120V 37A 24mΩ@10V 1 N-channel N-Channel TSDSON-8(3.3x3.3) Single FETs, MOSFETs RoHS
TSDSON-8(3.3x3.3)ROHS3 CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- BSZ240N12NS3 G
- Store part #
- C534717
- Package / case
- TSDSON-8(3.3x3.3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C534717
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹588.66 | ₹588.66 |
| 10+ | ₹579.99 | ₹5,799.90 |
| 30+ | ₹574.13 | ₹17,223.90 |
| 100+ | ₹568.49 | ₹56,849.00 |
1 × ₹588.66
₹588.66
excl. GST
₹694.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
BSZ240N12NS3 G
₹588.66 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 170pF
- Ciss-Input Capacitance
- 1.9nF
- Pd - Power Dissipation
- 66W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 120V
- Current - Continuous Drain(Id)
- 37A
- Reverse Transfer Capacitance (Crss)
- 11pF
- RDS(on)
- 24mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 27nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.168 g
Overview
Key features
- Optimized for DC-DC conversion
- N-channel, normally-on
- Excellent gate charge × RDS(on) product (figure of merit)
- Low on-resistance RDS(on)
- Operating temperature up to 150 °C
- Lead-free lead plating; RoHS compliant
- JEDEC qualified for target applications
- Halogen-free per IEC61249-2-21
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NTTFS022N15MC#C2902080onsemi · WDFN-8-EP(3.3x3.3) | onsemi | WDFN-8-EP(3.3x3.3) | 6 | ₹410.54 · 6 in stock | View |
 | SISS5708DN-T1-GE3#C7011132VISHAY · PowerPAK1212-8S | VISHAY | PowerPAK1212-8S | 8 | ₹160.59 · 8 in stock | View |
