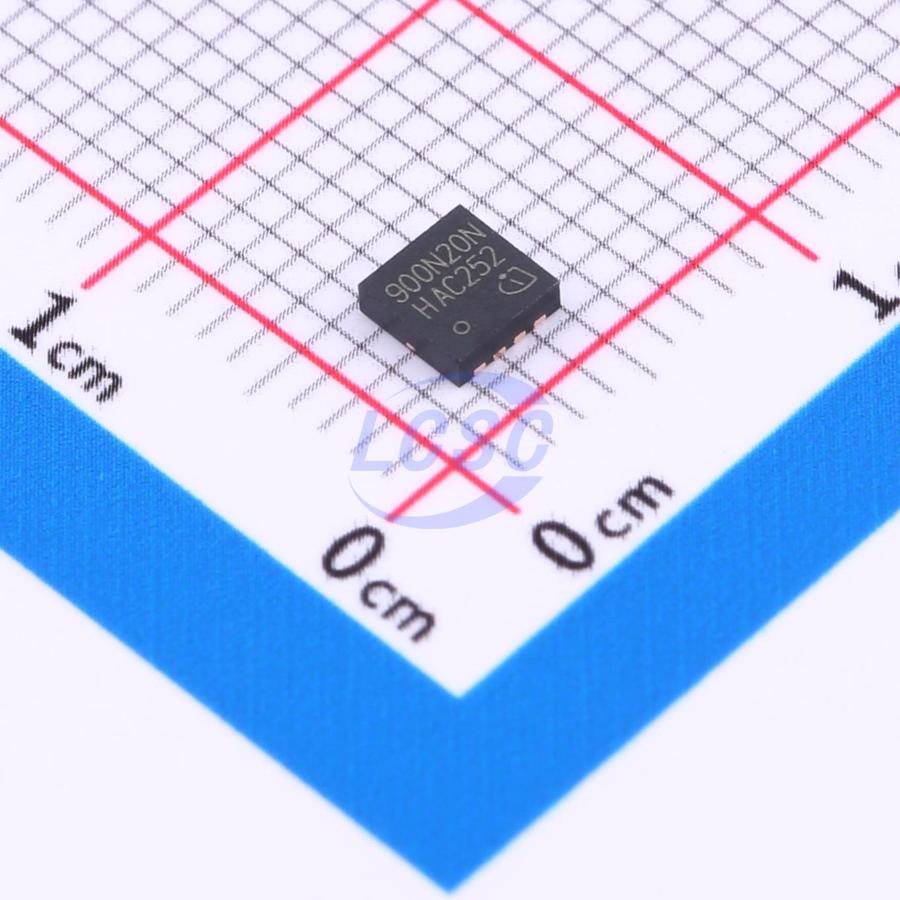

BSZ900N20NS3GATMA1
N-Channel 200V 15.2A 62.5W Surface Mount TSDSON-8FL
TSDSON-8FLROHS3 CompliantActive
MOSFET N-CH 200V 15.2A TSDSON-8FL
- Manufacturer
- Infineon
- Manufacturer part #
- BSZ900N20NS3GATMA1
- Store part #
- C3279283
- Package / case
- TSDSON-8FL
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
21 in stock
#C3279283
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹203.62 | ₹203.62 |
| 10+ | ₹168.27 | ₹1,682.70 |
| 30+ | ₹148.76 | ₹4,462.80 |
| 100+ | ₹126.86 | ₹12,686.00 |
| 500+ | ₹117.31 | ₹58,655.00 |
| 1,000+ | ₹112.76 | ₹1,12,760.00 |
1 × ₹203.62
₹203.62
excl. GST
₹240.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
BSZ900N20NS3GATMA1
₹203.62 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 69pF
- Ciss-Input Capacitance
- 920pF
- Pd - Power Dissipation
- 62.5W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 200V
- Current - Continuous Drain(Id)
- 15.2A
- Reverse Transfer Capacitance (Crss)
- 5.2pF
- RDS(on)
- 77mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 11.6nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.579 g
Overview
CoolMOS™ is a revolutionary technology for high-voltage power MOSFETs, designed based on the superjunction (SJ) principle. The 650V CoolMOS™ CFD2 series combines the experience of a leading SJ MOSFET supplier with best-in-class innovation. The resulting devices deliver all the advantages of fast-switching SJ MOSFETs while offering an extremely fast and robust body diode. The combination of ultra-low switching, commutation, and conduction losses with exceptional ruggedness makes resonant switching applications notably more reliable, efficient, compact, and thermally optimized.
Applications
- 650V CoolMOS™ CFD2 specifically designed for resonant switched PWM stages, such as PC power supplies, LCD TVs, lighting, servers, and telecommunications applications.
Key features
- Optimized for DC-DC conversion
- N-channel, normally-on
- Excellent gate charge × RDS(on) product (figure of merit, FOM)
- Low on-resistance RDS(on)
- Operating temperature up to 150°C
- Lead-free lead finish; RoHS compliant
- JEDEC qualified for target applications
- Halogen-free per IEC61249-2-21
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| STL24N60M2#C2970349ST · VDFN-8-Power | ST | VDFN-8-Power | 27 | ₹739.49 · 27 in stock | View | |
 | BSC500N20NS3GATMA1#C5381902Infineon · TDSON-8 | Infineon | TDSON-8 | On request | ₹258.13 · 0 in stock | View |
 | ISZ520N20NM6ATMA1#C22408593Infineon · TSDSON-8 | Infineon | TSDSON-8 | 134 | ₹174.33 · 134 in stock | View |
 | BSC220N20NSFD#C534425Infineon · TDSON-8 | Infineon | TDSON-8 | 92 | ₹730.77 · 92 in stock | View |
 | BSC600N25NS3G#C3288852Infineon · TDSON-8 | Infineon | TDSON-8 | 730 | ₹284.91 · 730 in stock | View |
