TECH PUBLICDatasheet (PDF)

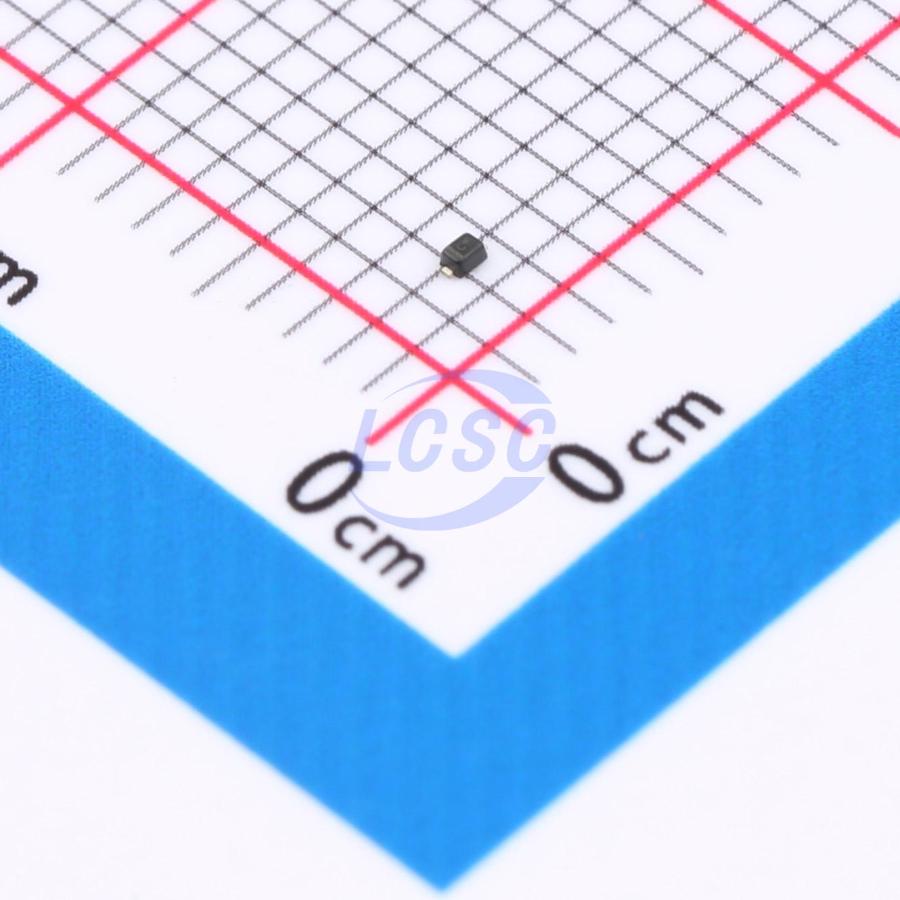

BTR9S23A10-TP
10VC Clamp 8A@8/20us Ipp SOD-923(0402)
SOD-923(0402)RoHSActive
5VWM 10VC SOD-923(0402)
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- BTR9S23A10-TP
- Store part #
- C2841836
- Package / case
- SOD-923(0402)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,380 in stock
#C2841836
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.84 | ₹76.80 |
| 200+ | ₹3.02 | ₹604.00 |
| 600+ | ₹2.55 | ₹1,530.00 |
| 2,000+ | ₹2.28 | ₹4,560.00 |
| 8,000+ | ₹1.87 | ₹14,960.00 |
| 16,000+ | ₹1.73 | ₹27,680.00 |
20 × ₹3.84
₹76.80
excl. GST
₹90.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 8,000 per reel
BTR9S23A10-TP
₹76.80 for 20 + GST
Specifications
- Clamping Voltage
- 10V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 8A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 60W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 6V
- type
- ESD
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 80nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 8,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.01 g
Overview
Applications
- Mobile Phones and Accessories
- Battery Protection
- USB VBus
- Power Line Protection
- Hand Held Portable Applications
Key features
- 60w peak pulse power (8/20 μs)
- Protects one data or power line
- Operating voltage: ±5V
- Ultra low clamping voltage
- Complies with following standards:
- IEC61000 - 4 - 2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000 - 4 - 5 (SURGE) 8A (8/20us)
- Ultra low leakage: nA level
- UL Flammability Classification Rating 94V - 0
- Moisture Sensitivity: Level 3 per J - STD - 020
