ROHMDatasheet (PDF)

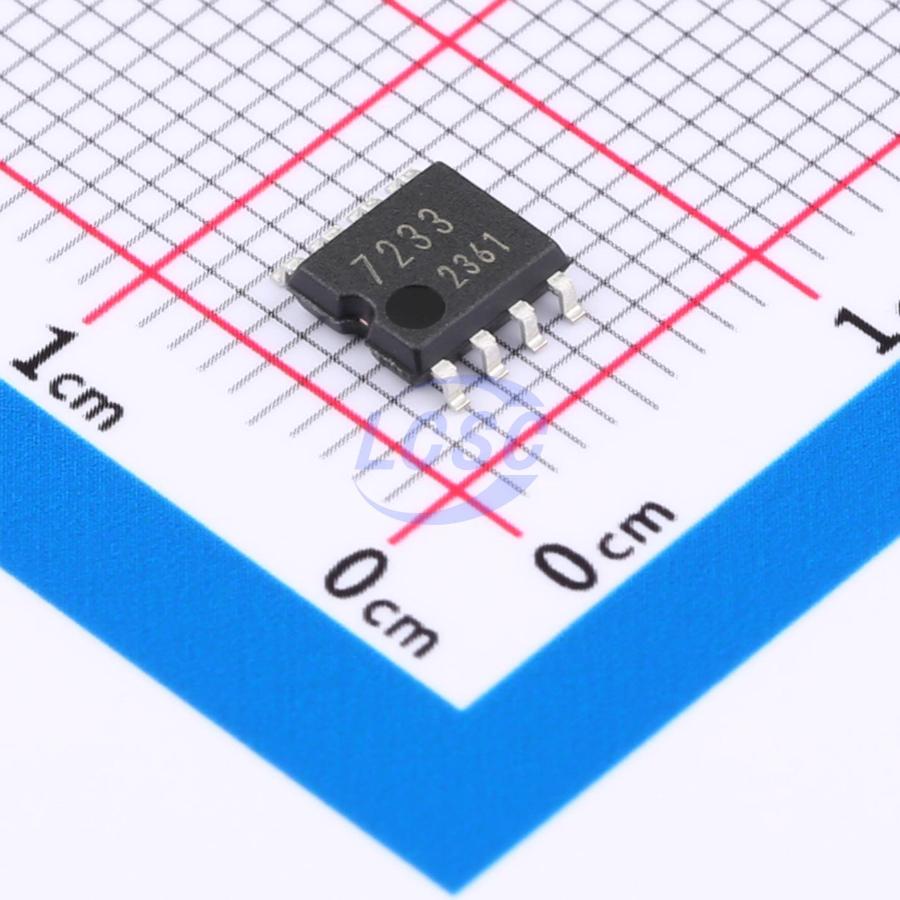

BU7233F-E2
2 10uA 11mV SOP-8 Comparators RoHS
SOP-8ROHS3 CompliantActive
Input Full Swing Open Drain Output / Current CMOS Comparators
- Manufacturer
- ROHM
- Manufacturer part #
- BU7233F-E2
- Store part #
- C509771
- Package / case
- SOP-8
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,500 in stock
#C509771
Stock & price checked 21 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹61.93 | ₹61.93 |
| 10+ | ₹48.02 | ₹480.20 |
| 30+ | ₹42.15 | ₹1,264.50 |
| 100+ | ₹34.77 | ₹3,477.00 |
| 500+ | ₹31.29 | ₹15,645.00 |
| 1,000+ | ₹29.33 | ₹29,330.00 |
1 × ₹61.93
₹61.93
excl. GST
₹73.08 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BU7233F-E2
₹61.93 for 1 + GST
Specifications
- Number of Channels
- 2
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+85℃
- Dual Supply
- 0.9V~2.75V;-2.75V~-0.9V
- Ib - Input Bias Current
- 1pA
- Output Type
- Open-drain
- Propagation Delay(tpd)
- 1.8us;600ns
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Quiescent Current(Iq)
- 10uA
- Vos - Input Offset Voltage
- 11mV
- Maximum Power Supply Range (Vdd-Vss)
- 7V
- Response Time (tr)
- 20ns
- Single Supply
- 1.8V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.206 g
Overview
BU7230G/BU7233F are input full swing and open drain comparators. BU7230SG/BU7233SF have an expanded operating temperature range. These features low operating supply voltage of +1.8V to +5.5V, low supply current and extremely low input bias current.
Applications
- Battery Monitor
- Mobile Equipments
- Limit Comparator
- Consumer Electronics
Key features
- Low Operating Supply Voltage
- Low Supply Current
- Input Full Swing
- Open Drain Output Type
- Wide Operating Temperature Range
- Low Input Bias Current
