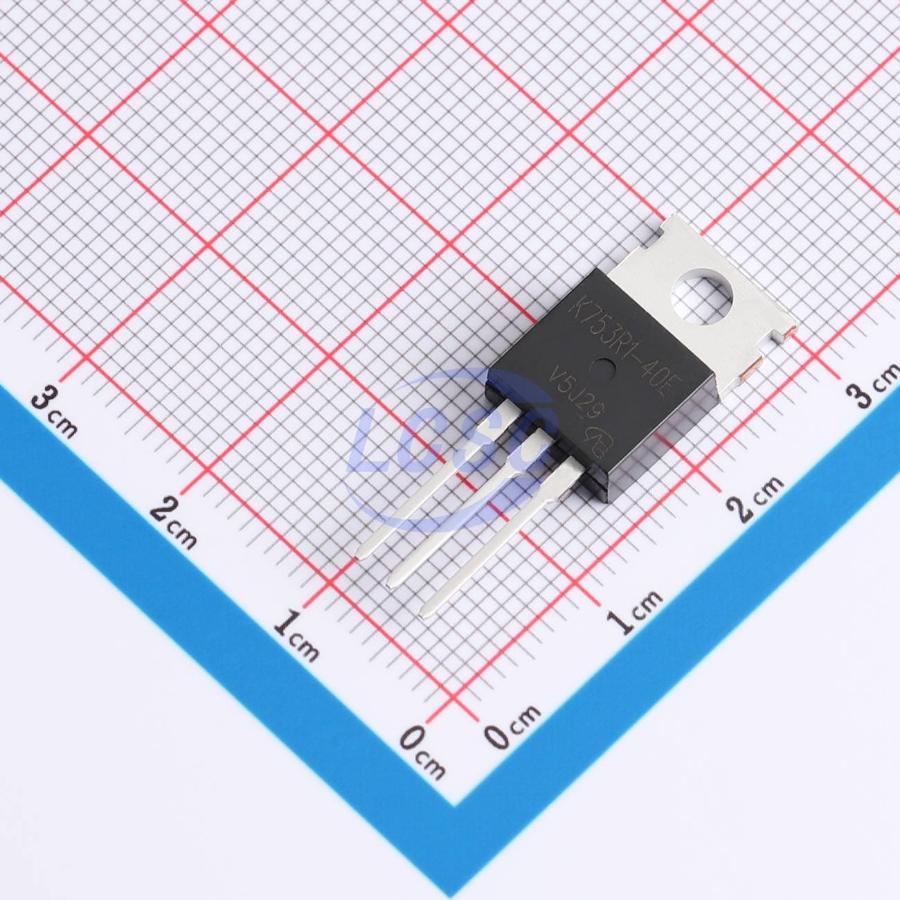

BUK753R1-40E,127-VB
312W 40V 180A 2mΩ@10V 1 N-channel N-Channel TO-220AB Single FETs, MOSFETs
TO-220ABRoHSActive
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- BUK753R1-40E,127-VB
- Store part #
- C52191078
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C52191078
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹208.99 | ₹208.99 |
| 10+ | ₹174.38 | ₹1,743.80 |
| 50+ | ₹155.44 | ₹7,772.00 |
| 100+ | ₹133.89 | ₹13,389.00 |
| 500+ | ₹124.31 | ₹62,155.00 |
| 1,000+ | ₹120.17 | ₹1,20,170.00 |
1 × ₹208.99
₹208.99
excl. GST
₹246.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
BUK753R1-40E,127-VB
₹208.99 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 650pF
- Ciss-Input Capacitance
- 9nF
- Pd - Power Dissipation
- 312W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 180A
- Reverse Transfer Capacitance (Crss)
- 450pF
- RDS(on)
- 2mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 120nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.32 g
Overview
Applications
- Synchronous rectification
- Power supply
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| PSMN2R1-40PLQ-VB#C52148728VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹208.99 · 10 in stock | View | |
 | BUK7531R-40E127-VB#C52209342VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹208.99 · 10 in stock | View |
 | BUK652R3-40C-VB#C22389711VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹192.84 · 10 in stock | View |
 | HM1404C-VB#C22389728VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹192.84 · 10 in stock | View |
 | IRFB7440GPBF-VB#C22389772VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹192.84 · 10 in stock | View |
